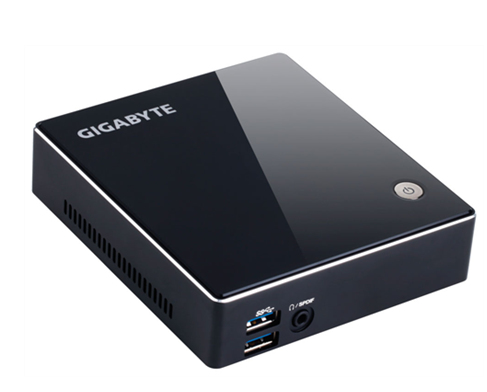

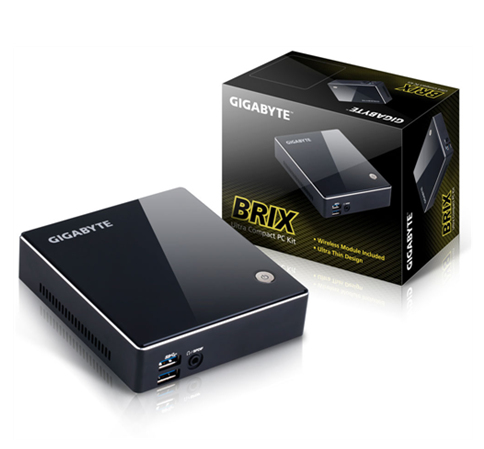

GIGABYTE GB-BXCE-2955 PC/workstation barebone USFF Black 2955U BGA 1168
1.4 GHz
Model GB-BXCE-2955EAN 4719331231224
80 specifications
- ProcessorIntel® Celeron®
- TypeMini PC barebone
- OSNo
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel® Celeron®
- Type
- Mini PC barebone
- OS
- No
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- GIGABYTE
- Category
- PC/Workstation Barebones
- Model
- GB-BXCE-2955
- Part number
- GB-BXCE-2955
- EAN / UPC
- 4719331231224, 4719331231422
- Also known as
- GIGABYTE GB-BXCE-2955 PC/workstation barebone USFF Black 2955U BGA 1168 1.4 GHz
Specifications
80 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 2955U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.4 GHz |
| Processor lithography | 22 nm |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Processor codename | Haswell |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 1333,1600 MHz |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1168 |
| Supported processor frequency (max) | 1.4 GHz |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Networking features | Gigabit LAN |

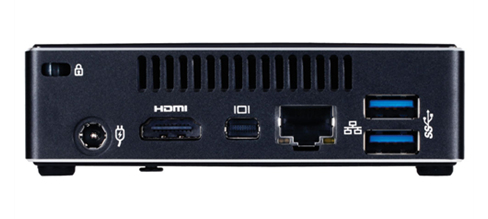

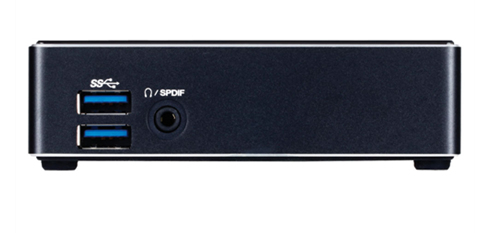

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| DVI port | No |
| Microphone in | No |
| Headphone outputs | 1 |
| Combo headphone/mic port | No |
| CardBus PCMCIA slot type | No |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x2, 1x4, 4x1 |
Design
| Specification | Value |
|---|---|
| Chassis type | USFF |
| Product colour | Black |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel FDI Technology | No |
| Intel ME Firmware Version | 9.5 |
| Intel Rapid Storage Technology | Yes |
| Intel Smart Connect Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Insider™ | No |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® OS Guard | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Cache | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 114.4 mm |
| Depth | 107.6 mm |
| Height | 29.9 mm |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 107.6 x 114.4 x 29.9 mm |
