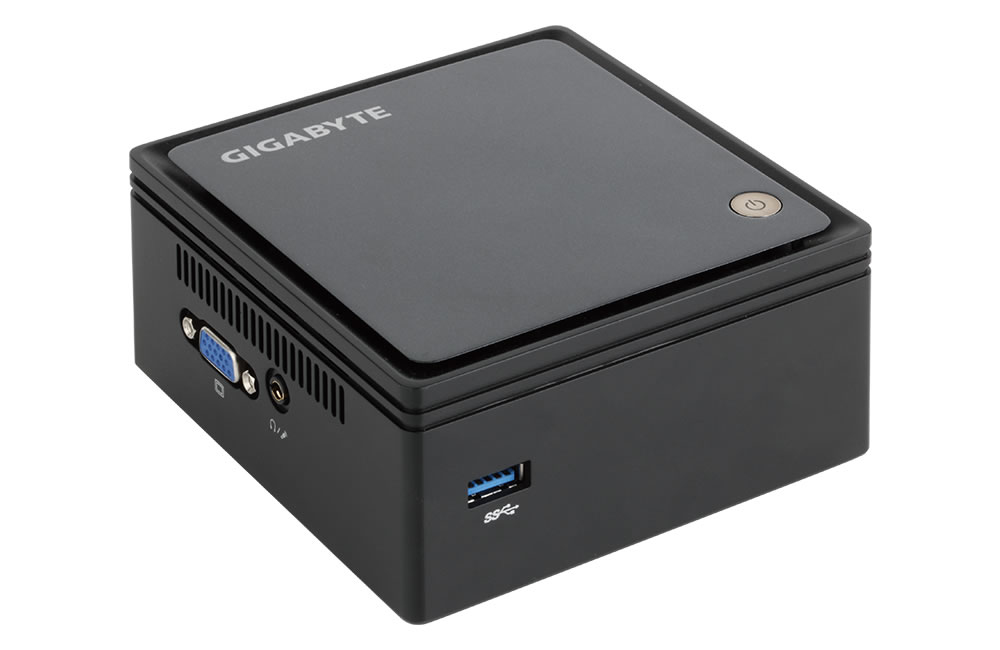

GIGABYTE GB-BXBT-2807 PC/workstation barebone Net-top N2807 BGA 1170

1.58 GHz

Model GB-BXBT-2807EAN 5054533684409

70 specifications

Overview

Brand: GIGABYTE
Category: PC/Workstation Barebones
Model: GB-BXBT-2807
Part number: GB-BXBT-2807
EAN / UPC: 5054533684409, 012300851589, 057143106533, 787468102469 +14 more
Also known as: GIGABYTE GB-BXBT-2807 PC/workstation barebone Net-top N2807 BGA 1170 1.58 GHz

70 specifications in 12 groups

Specification	Value
Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N2807
Processor cores	2
Processor threads	2
Processor boost frequency	2.16 GHz
Processor frequency	1.58 GHz
Processor lithography	22 nm
Thermal Design Power (TDP)	4.3 W
CPU configuration (max)	1
Processor codename	Bay Trail
Processor series	Intel Celeron Processor N2000 Series for Mobile

Specification	Value
Memory slots type	SO-DIMM
Number of memory slots	1
Maximum internal memory	8 GB
Supported memory clock speeds	1333 MHz
Supported memory types	DDR3L-SDRAM

Specification	Value
Storage drive sizes supported	2.5"
Storage drive interface	Serial ATA
Number of storage drives supported	1

Specification	Value
Processor socket	BGA 1170
Number of processors supported	1
Compatible processor series	Intel® Celeron®
Supported processor frequency (max)	2.17 GHz
Audio system	Realtek ALC283

Specification	Value
Ethernet LAN	Yes
LAN controller	Realtek RTL8111G

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Microphone in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Rapid Storage Technology	No
Intel Smart Connect Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel® Wireless Display (Intel® WiDi)	Yes

Specification	Value
Operating system installed	No
