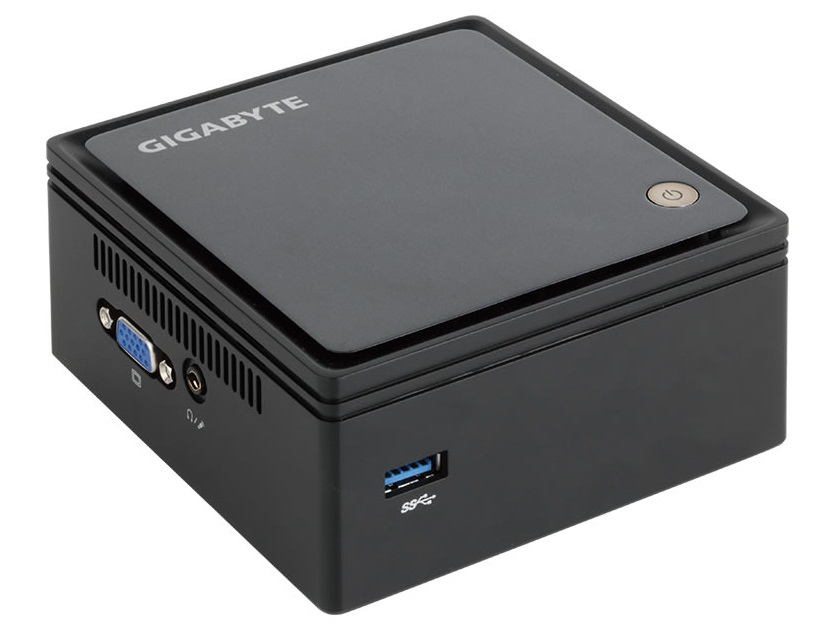

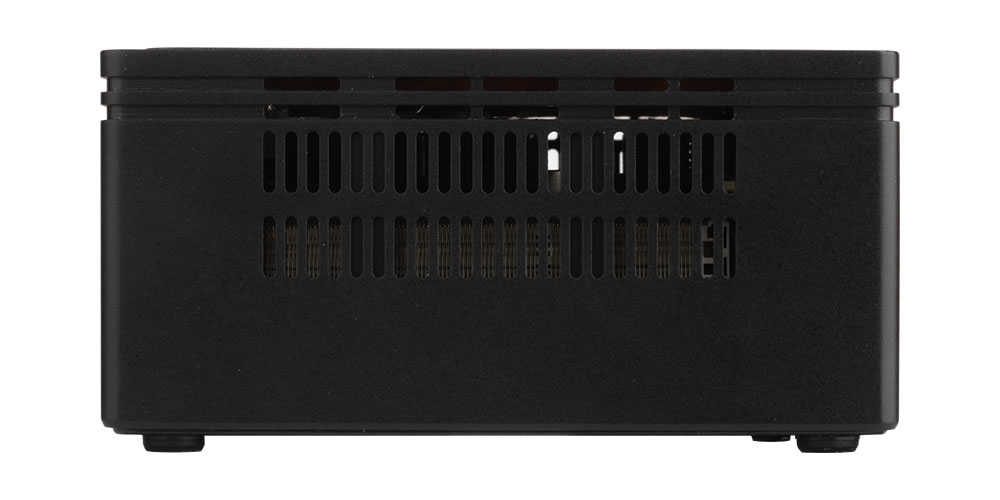

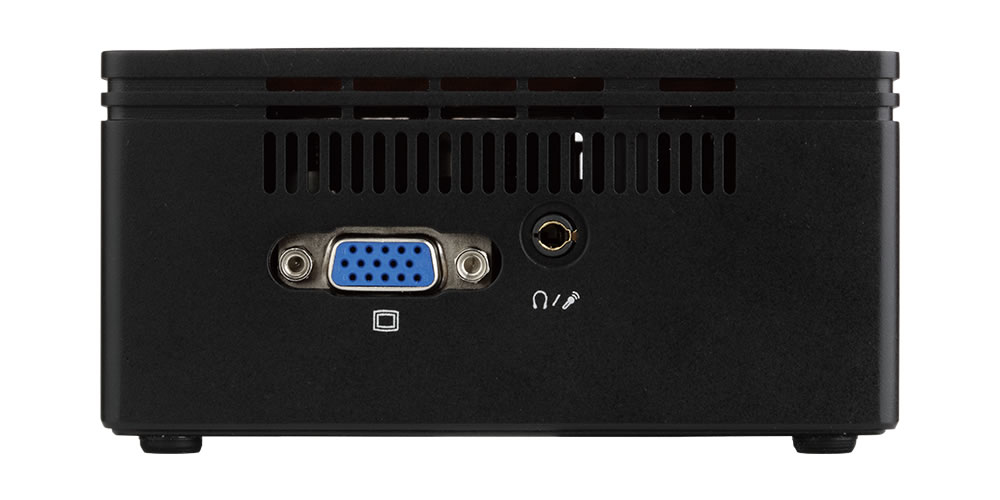

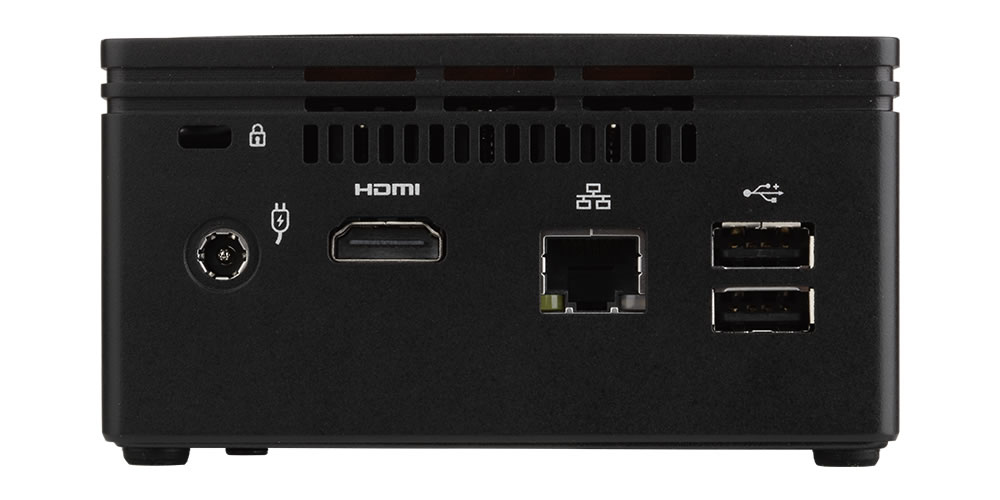

GIGABYTE GB-BXBT-1900 PC/workstation barebone USFF Black J1900 BGA 1170
2 GHz
Model GB-BXBT-1900EAN 889523000410
78 specifications
- ProcessorIntel® Celeron®
- TypeMini PC barebone
- OSNo
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel® Celeron®
- Type
- Mini PC barebone
- OS
- No
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- GIGABYTE
- Category
- PC/Workstation Barebones
- Model
- GB-BXBT-1900
- Part number
- GB-BXBT-1900
- EAN / UPC
- 889523000410, 5054629654460
- Also known as
- GIGABYTE GB-BXBT-1900 PC/workstation barebone USFF Black J1900 BGA 1170 2 GHz
Specifications
78 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | J1900 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.42 GHz |
| Processor frequency | 2 GHz |
| Processor lithography | 22 nm |
| L2 cache | 2 MB |
| Thermal Design Power (TDP) | 10 W |
| CPU configuration (max) | 1 |
| Processor codename | Bay Trail |
| Processor series | Intel Celeron Processor J1000 series for Desktop |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Maximum internal memory | 8 GB |
| Supported memory clock speeds | 1333 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA II |
| Number of storage drives supported | 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1170 |
| Compatible processor series | Intel® Celeron® |
| Supported processor frequency (max) | 2.41 GHz |
| Audio system | Realtek ALC283 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| LAN controller | Realtek RTL8111G |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| Mini PCI Express slots | 1 |
| PCI Express configurations | 1x4 |
Design
| Specification | Value |
|---|---|
| Chassis type | USFF |
| Product colour | Black |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel FDI Technology | No |
| Intel Rapid Storage Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | WIN7 64bit, WIN8 32/64bit, WIN8.1 32/64bit |
| Operating system installed | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 107.6 mm |
| Depth | 114.4 mm |
| Height | 56.1 mm |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Power requirements | 100-240V |
| Processor ARK ID | 78867 |
