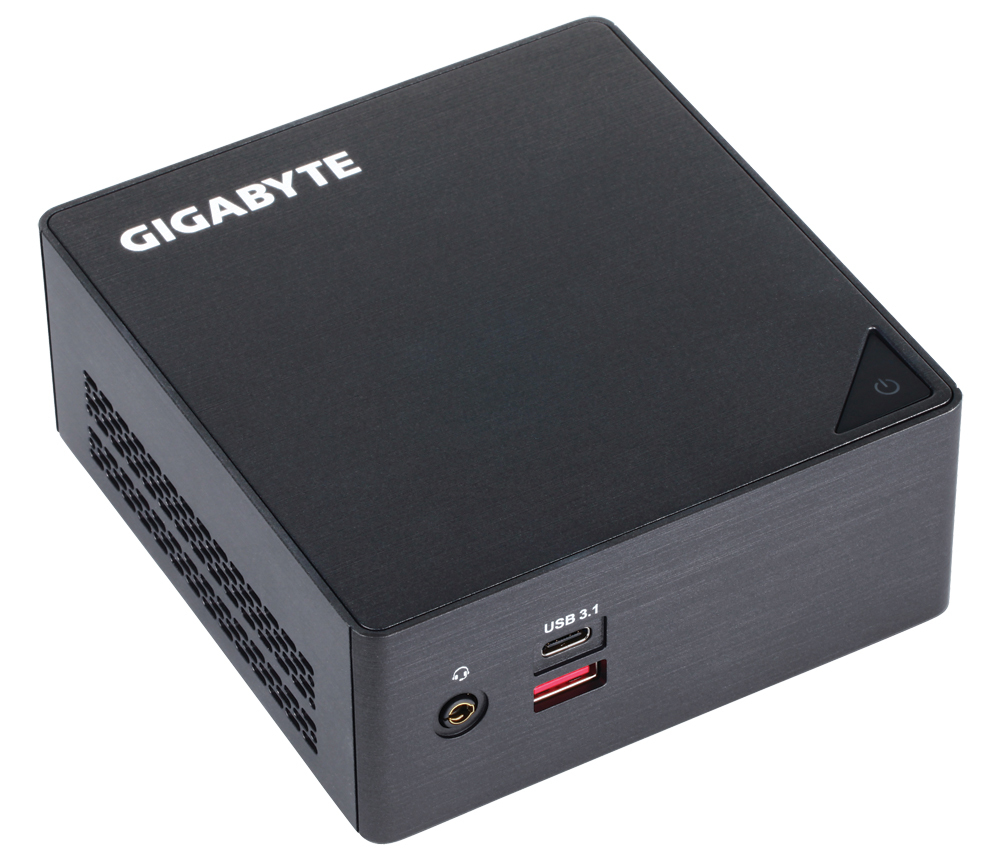

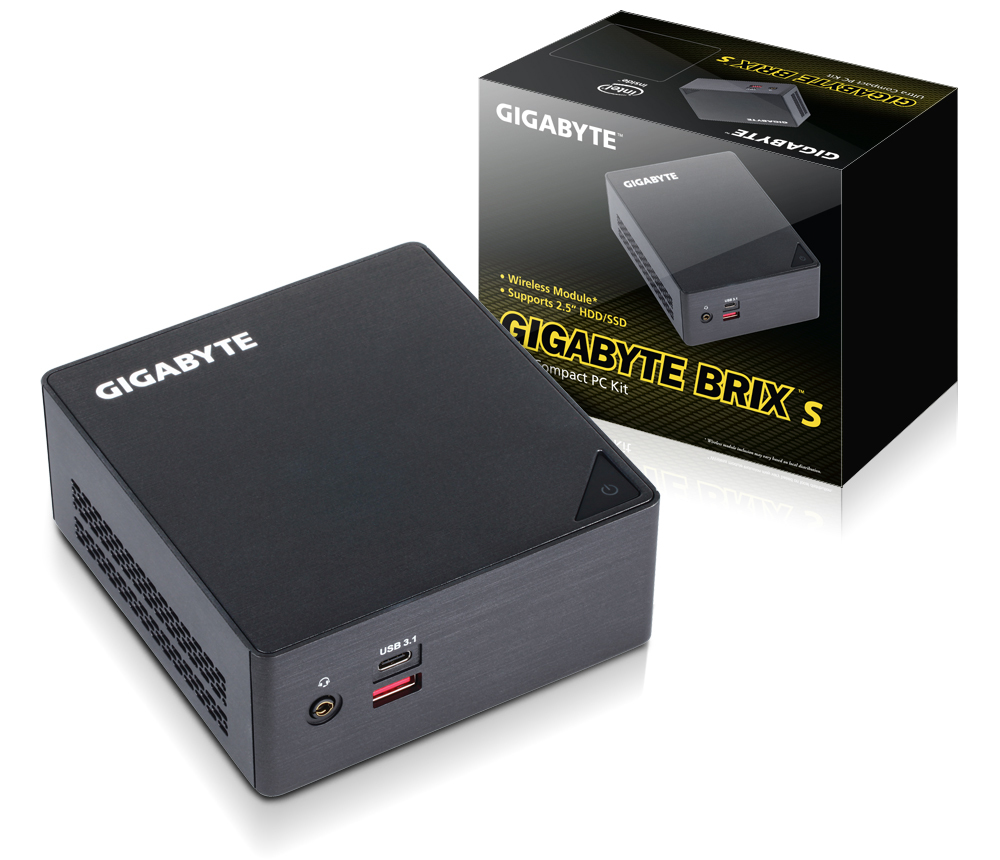

GIGABYTE GB-BSi3HAL-6100 Black i3-6100U BGA 1356
2.3 GHz
Model GB-BSi3HAL-6100Part no. GB-BSI3HAL-6100EAN 889523005415
95 specifications
- ProcessorIntel® Core™ i3
- TypeMini PC barebone
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
- Supported storage drive typesHDD & SSD
Overview
- Processor
- Intel® Core™ i3
- Type
- Mini PC barebone
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Supported storage drive types
- HDD & SSD
- Brand
- GIGABYTE
- Category
- PC/Workstation Barebones
- Model
- GB-BSi3HAL-6100
- Part number
- GB-BSI3HAL-6100
- EAN / UPC
- 889523005415, 4719331261535
- Also known as
- GIGABYTE GB-BSi3HAL-6100 Black i3-6100U BGA 1356 2.3 GHz
Specifications
95 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 6th gen Intel® Core™ i3 |
| Processor model | i3-6100U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 2.3 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Processor codename | Skylake |
| Processor series | Intel Core i3-6100 series |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2133 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | M.2, Serial ATA III |
| Number of storage drives supported | 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics 520 |
| Maximum graphics card memory | 32000 MB |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1356 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel® I210-AT, Intel I219LM |

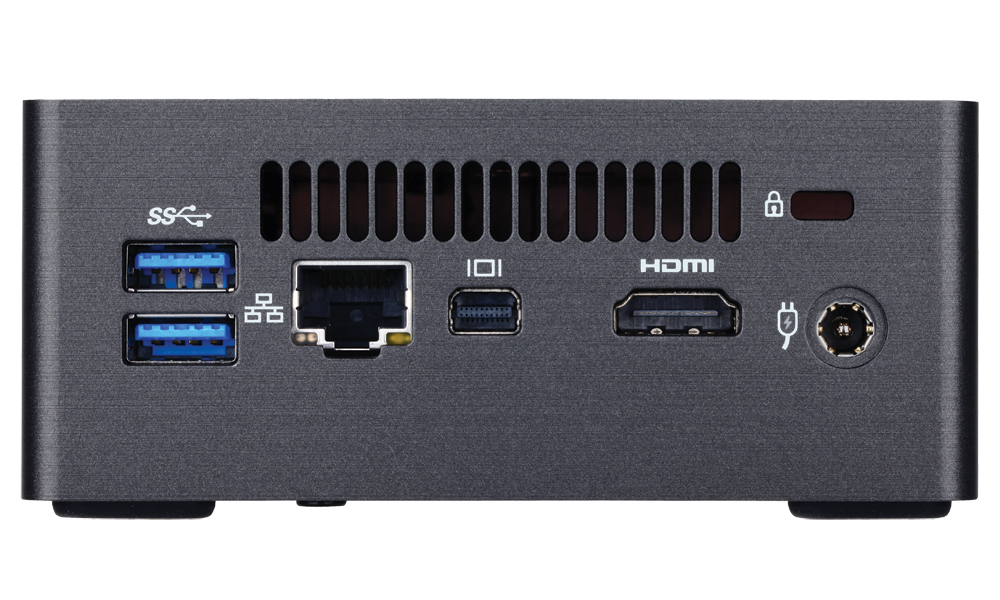

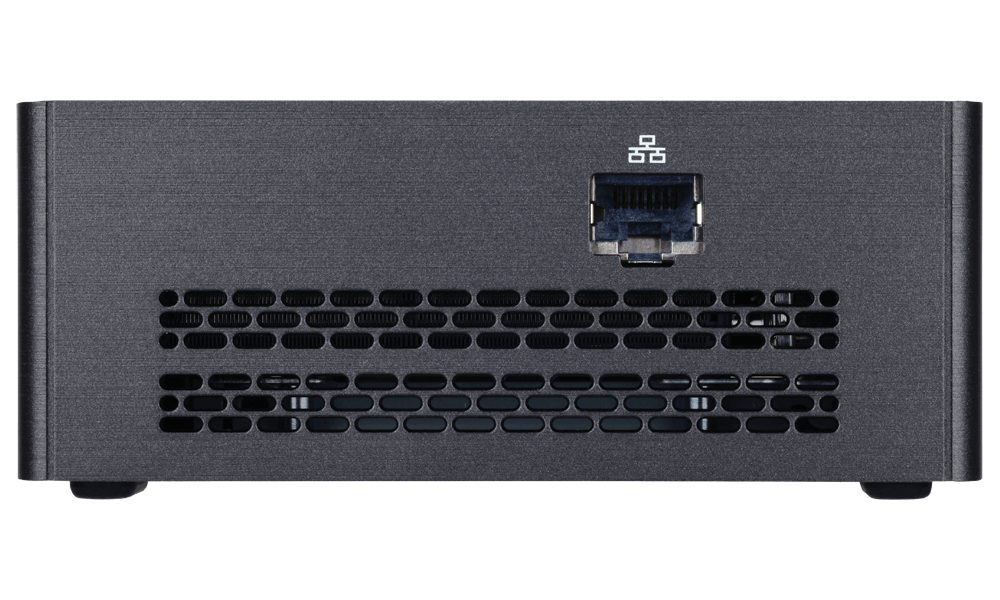

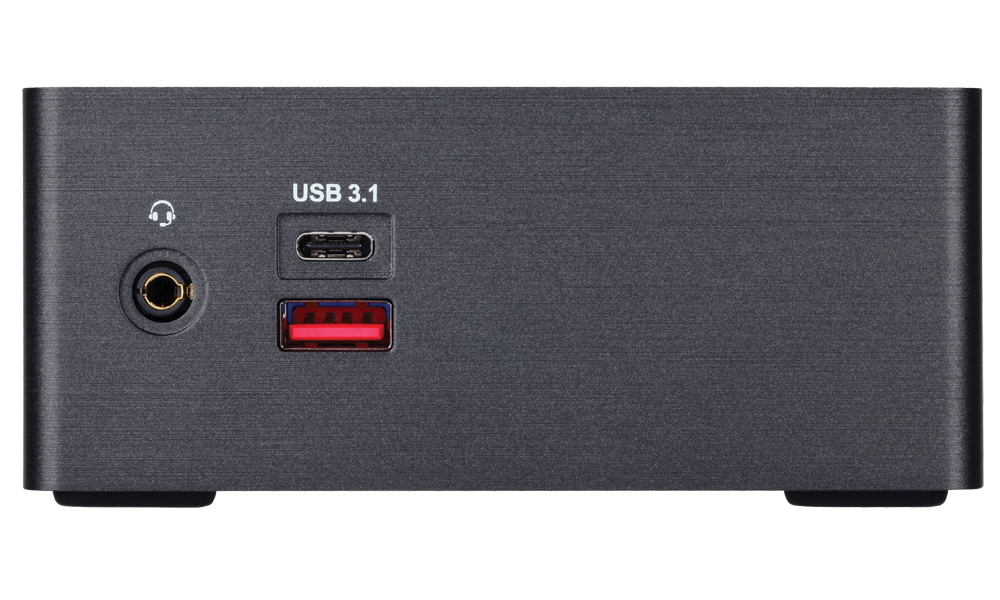

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| VGA (D-Sub) ports quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4, 4x1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | Yes |
| Intel Rapid Storage Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Window |
Power
| Specification | Value |
|---|---|
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 119.4 mm |
| Depth | 112.6 mm |
| Height | 46.8 mm |
Other features
| Specification | Value |
|---|---|
| Processor ARK ID | 88180 |
What people say
Reviews & ratings
GIGABYTE GB-BSi3HAL-6100 Black i3-6100U BGA 1356
No reviews yet
Be the first to tell others how GIGABYTE GB-BSi3HAL-6100 Black i3-6100U BGA 1356 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GB-BSi3HAL-6100 Black i3-6100U BGA 1356
All pc/workstation barebones comparisons- GIGABYTE GB-BSi3HAL-6100 Black i3-6100U BGA 1356 vsGIGABYTE GB-BSI7HAL-6500 PC/workstation bareboneCompare specs
- GIGABYTE GB-BSi3HAL-6100 Black i3-6100U BGA 1356 vsGIGABYTE GB-BSi5HAL-6200Compare specs
- GIGABYTE GB-BSi3HAL-6100 Black i3-6100U BGA 1356 vsGIGABYTE GB-BXI5-4570R-BW PC/workstation bareboneCompare specs
- GIGABYTE GB-BSi3HAL-6100 Black i3-6100U BGA 1356 vsGIGABYTE GB-BXi7-5775Compare specs
- GIGABYTE GB-BSi3HAL-6100 Black i3-6100U BGA 1356 vsMSI Aegis-001BUS Desktop Black, Red Intel® B150 LGA 1151 (Socket H4)Compare specs

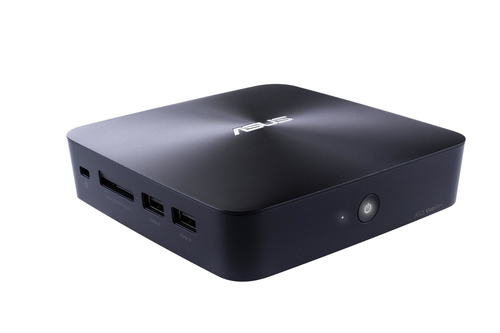

- GIGABYTE GB-BSi3HAL-6100 Black i3-6100U BGA 1356 vsASUS UN65-M024M 0.79L sized PC Black, Blue i5-6200U LGA 1356 (Socket B2) 2.3 GHzCompare specs
