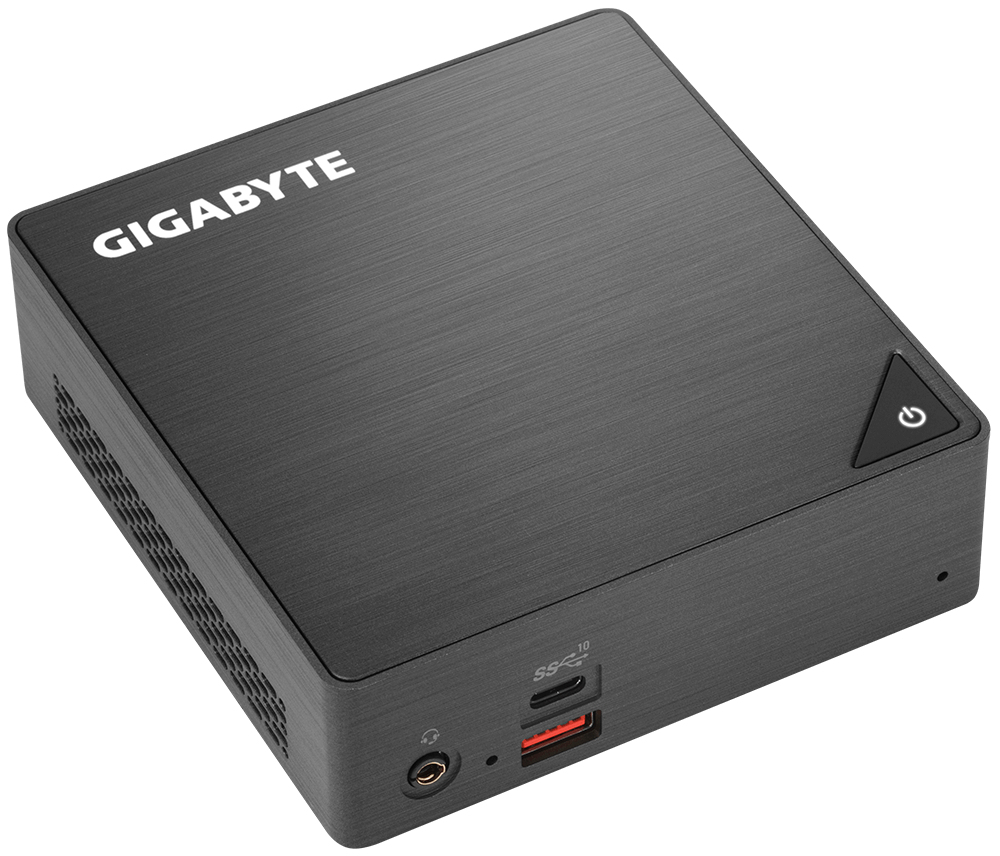

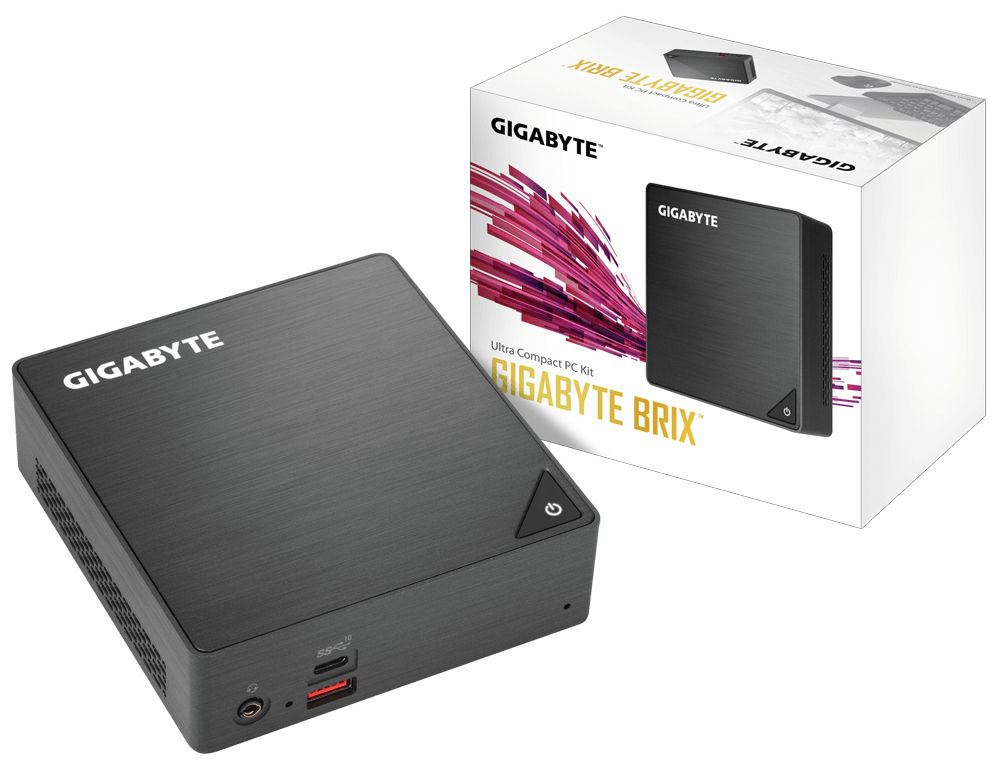

GIGABYTE GB-BRi7-8550 UCFF Black i7-8550U BGA 1356

GIGABYTE GB-BRi7-8550 UCFF Black i7-8550U BGA 1356

1.8 GHz

Model GB-BRi7-8550Part no. GB-BRI7-8550EAN 889523012543

92 specifications

ProcessorIntel® Core™ i7
TypeMini PC barebone
OSNo
ColourBlack
Built-in processorYes
Memory slots typeSO-DIMM

See all specifications

Overview

Processor: Intel® Core™ i7
Type: Mini PC barebone
OS: No
Colour: Black
Built-in processor: Yes
Memory slots type: SO-DIMM

Brand: GIGABYTE
Category: PC/Workstation Barebones
Model: GB-BRi7-8550
Part number: GB-BRI7-8550
EAN / UPC: 889523012543, 4719331281120, 5051868199752
Also known as: GIGABYTE GB-BRi7-8550 UCFF Black i7-8550U BGA 1356 1.8 GHz

Specifications

92 specifications in 15 groups

Processor

Specification	Value
Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8550U
Processor cores	4
Processor threads	8
Processor boost frequency	4 GHz
Processor frequency	1.8 GHz
Processor lithography	14 nm
Thermal Design Power (TDP)	15 W
CPU configuration (max)	1
Processor codename	Kaby Lake R

Memory

Specification	Value
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	32 GB
Supported memory clock speeds	2400 MHz
Supported memory types	DDR4-SDRAM

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
Maximum resolution	4096 x 2304 pixels

Performance

Specification	Value
Processor socket	BGA 1356
Audio system	Realtek ALC255

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	4.2
LAN controller	Intel® I219-V

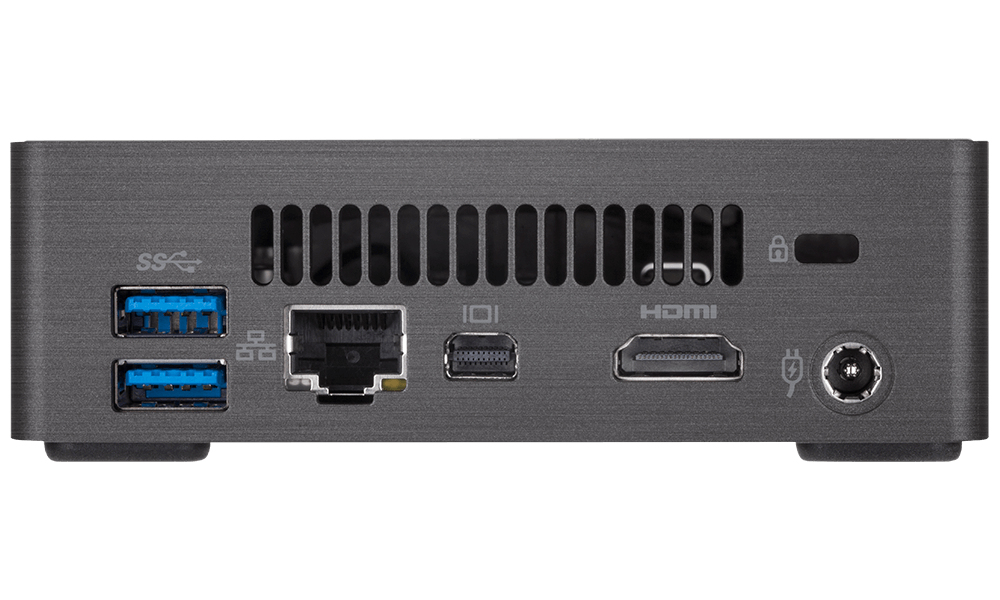

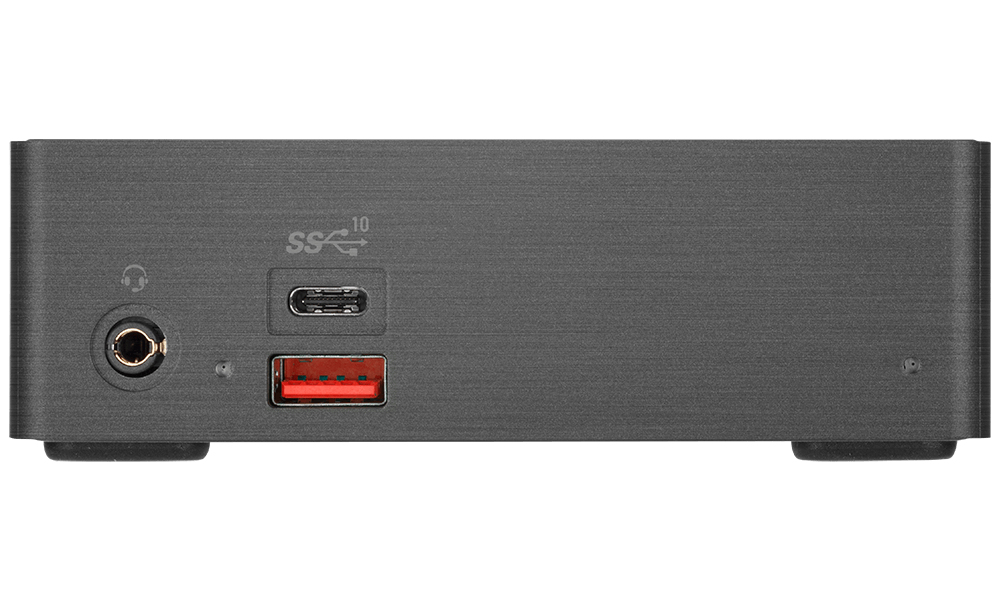

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.0a
VGA (D-Sub) ports quantity	0
DisplayPort version	1.2a
Mini DisplayPorts quantity	1
Combo headphone/mic port	Yes
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Expansion slots

Specification	Value
PCI Express slots version	3.0
Number of M.2 (M) slots	1
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1

Design

Specification	Value
Chassis type	UCFF
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Panel mounting interface	75 x 75,100 x 100 mm
Product type	Mini PC barebone

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Thermal Monitoring Technologies	Yes

Software

Specification	Value
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
Operating system installed	No

Power

Specification	Value
Power supply type	External AC adapter
AC adapter output current	3.42 A
AC adapter output voltage	19 V
AC input voltage	100 - 240 V
Number of power supply units	1
Power supply	65 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C

Weight & dimensions

Specification	Value
Width	112.6 mm
Depth	119.4 mm
Height	34.4 mm

Packaging content

Specification	Value
AC adapter included	Yes
Quick start guide	Yes
Drivers included	Yes

Other features

Specification	Value
Processor ARK ID	122589
