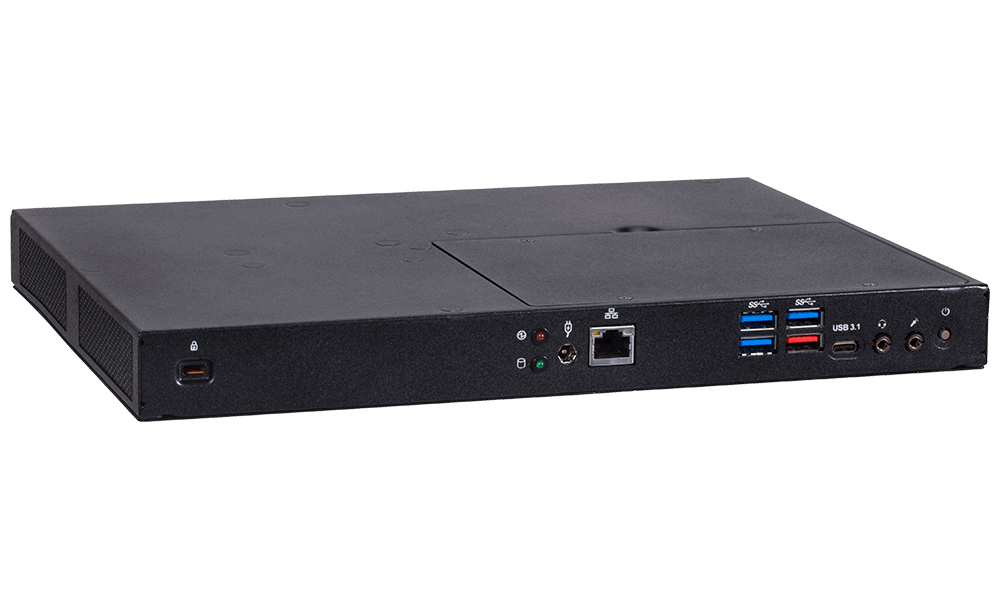

GIGABYTE GB-BNi3G4-950
2L sized PC Black i3-6100U Intel® HM170 BGA 1356 2.3 GHz
Model GB-BNi3G4-950Part no. GB-BNI3G4-950
100 specifications
- ProcessorIntel® Core™ i3
- GraphicsNVIDIA® GeForce® GTX 950
- Noise26.6 dB
- TypeMini PC barebone
- ColourBlack
- Built-in processorYes
Overview
- Processor
- Intel® Core™ i3
- Graphics
- NVIDIA® GeForce® GTX 950
- Noise
- 26.6 dB
- Type
- Mini PC barebone
- Colour
- Black
- Built-in processor
- Yes
- Brand
- GIGABYTE
- Category
- PC/Workstation Barebones
- Model
- GB-BNi3G4-950
- Part number
- GB-BNI3G4-950
- Also known as
- GIGABYTE GB-BNi3G4-950 2L sized PC Black i3-6100U Intel® HM170 BGA 1356 2.3 GHz
Specifications
100 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 6th gen Intel® Core™ i3 |
| Processor model | i3-6100U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 2.3 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Processor codename | Skylake |
| Processor series | Intel Core i3-6100 series |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2133 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive interface | M.2 |
| Number of storage drives supported | 2 |
| Maximum storage capacity | 1 TB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | NVIDIA |
| Discrete graphics card model | NVIDIA® GeForce® GTX 950 |
| Graphics card memory type | GDDR5 |
| Maximum graphics card memory | 4000 MB |
| Maximum resolution | 3840 x 2160 pixels |
| Number of displays supported | 4 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® HM170 |
| Processor socket | BGA 1356 |
| Number of processors supported | 1 |
| Audio system | HD Audio |
| Noise level (idle) | 26.6 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| LAN controller | Intel I219LM |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| Mini DisplayPorts quantity | 4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4, 4x1 |
Design
| Specification | Value |
|---|---|
| Chassis type | 2L sized PC |
| Product colour | Black |
| Cooling type | Active |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Window |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 9.23 A |
| AC adapter output voltage | 19.5 V |
| AC input voltage | 100 - 240 V |
| Power supply | 180 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 230 mm |
| Height | 30 mm |
Other features
| Specification | Value |
|---|---|
| Processor ARK ID | 88180 |
