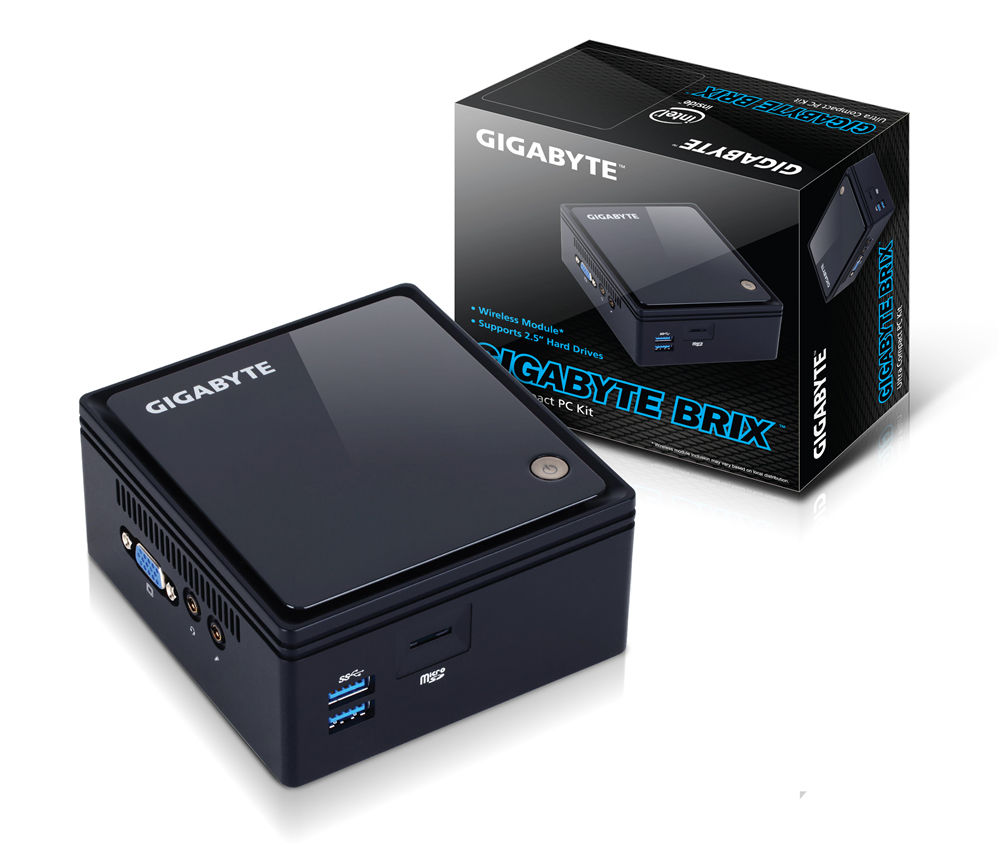

GIGABYTE GB-BACE-3150 PC/workstation barebone Desktop Black N3150 BGA 1170
1.6 GHz
Model GB-BACE-3150EAN 889523001172
87 specifications
- ProcessorIntel® Celeron®
- TypeMini PC barebone
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
- Supported storage drive typesHDD
Overview
- Processor
- Intel® Celeron®
- Type
- Mini PC barebone
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Supported storage drive types
- HDD
- Brand
- GIGABYTE
- Category
- PC/Workstation Barebones
- Model
- GB-BACE-3150
- Part number
- GB-BACE-3150
- EAN / UPC
- 889523001172, 4719331251659
- Also known as
- GIGABYTE GB-BACE-3150 PC/workstation barebone Desktop Black N3150 BGA 1170 1.6 GHz
Specifications
87 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N3150 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.08 GHz |
| Processor frequency | 1.6 GHz |
| Processor lithography | 14 nm |
| L2 cache | 2 MB |
| Thermal Design Power (TDP) | 6 W |
| CPU configuration (max) | 1 |
| Processor codename | Braswell |
| Processor series | Intel Celeron N3000 series |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Maximum internal memory | 8 GB |
| Memory voltage | 1.35 V |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Supported memory types | DDR3L-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1170 |
| Number of processors supported | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x4, 4x1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Rapid Storage Technology | No |
| Intel Smart Connect Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7 64-bit, Windows 8.1 64-bit, Windows 10 64-bit |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 2.1 A |
| AC adapter output voltage | 19 V |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 107.6 mm |
| Depth | 114.4 mm |
| Height | 56.1 mm |
