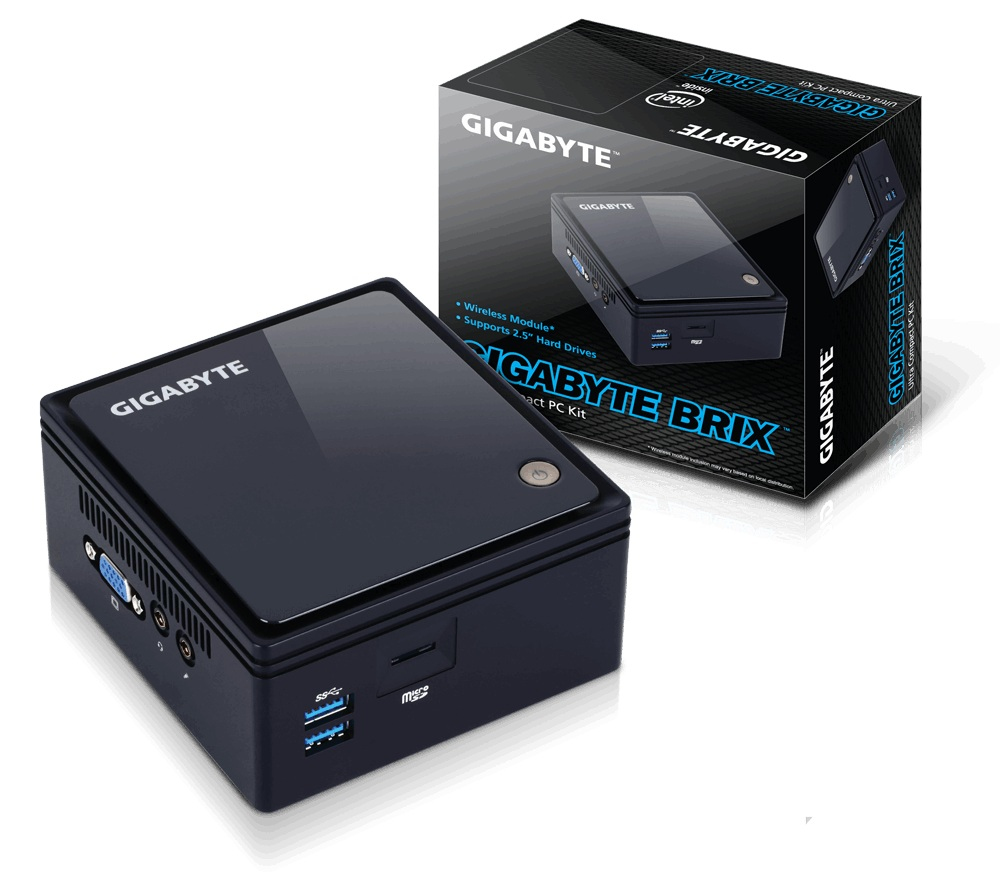

GIGABYTE GB-BACE-3000 PC/workstation barebone Nettop Black N3000 BGA 1170

1.04 GHz

Model GB-BACE-3000EAN 889523001165

105 specifications

ProcessorIntel® Celeron®
TypeMini PC
OSNo
ColourBlack
Built-in processorYes
Memory slots typeSO-DIMM

See all specifications

Overview

Processor: Intel® Celeron®
Type: Mini PC
OS: No
Colour: Black
Built-in processor: Yes
Memory slots type: SO-DIMM

Brand: GIGABYTE
Category: PC/Workstation Barebones
Model: GB-BACE-3000
Part number: GB-BACE-3000
EAN / UPC: 889523001165, 4719331251642
Also known as: GIGABYTE GB-BACE-3000 PC/workstation barebone Nettop Black N3000 BGA 1170 1.04 GHz

Specifications

105 specifications in 16 groups

Processor

Specification	Value
Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N3000
Processor cores	2
Processor threads	2
Processor boost frequency	2.08 GHz
Processor frequency	1.04 GHz
Processor lithography	14 nm
Thermal Design Power (TDP)	4 W
CPU configuration (max)	1
Processor codename	Braswell
Processor series	Intel Celeron N3000 series

Memory

Specification	Value
Memory slots type	SO-DIMM
Number of memory slots	1
Maximum internal memory	8 GB
Memory voltage	1.35 V
Supported memory clock speeds	1066,1600 MHz
Supported memory types	DDR3L-SDRAM

Storage

Specification	Value
Supported storage drive types	HDD
Storage drive sizes supported	2.5"
Storage drive interface	Serial ATA III
Number of storage drives supported	1
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes

Performance

Specification	Value
Processor socket	BGA 1170
Number of processors supported	1
Audio system	Realtek ALC255

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
Microphone in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
Number of SATA III connectors	2
DC-in jack	Yes

Expansion slots

Specification	Value
PCI Express slots version	2.0
PCI Express configurations	1x4, 4x1

Design

Specification	Value
Chassis type	Nettop
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Product type	Mini PC

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Smart Connect Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Thermal Monitoring Technologies	Yes

Software

Specification	Value
Operating system installed	No

Power

Specification	Value
Power supply type	External AC adapter
AC adapter output current	2.1 A
AC adapter output voltage	19 V
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C

Weight & dimensions

Specification	Value
Width	56.1 mm
Depth	1076 mm
Height	114.4 mm

Packaging content

Specification	Value
Display included	No
Mouse included	No
Keyboard included	No

Other features

Specification	Value
Number of processors installed	1
Number of storage drives installed	0
HDD size	2.5"
