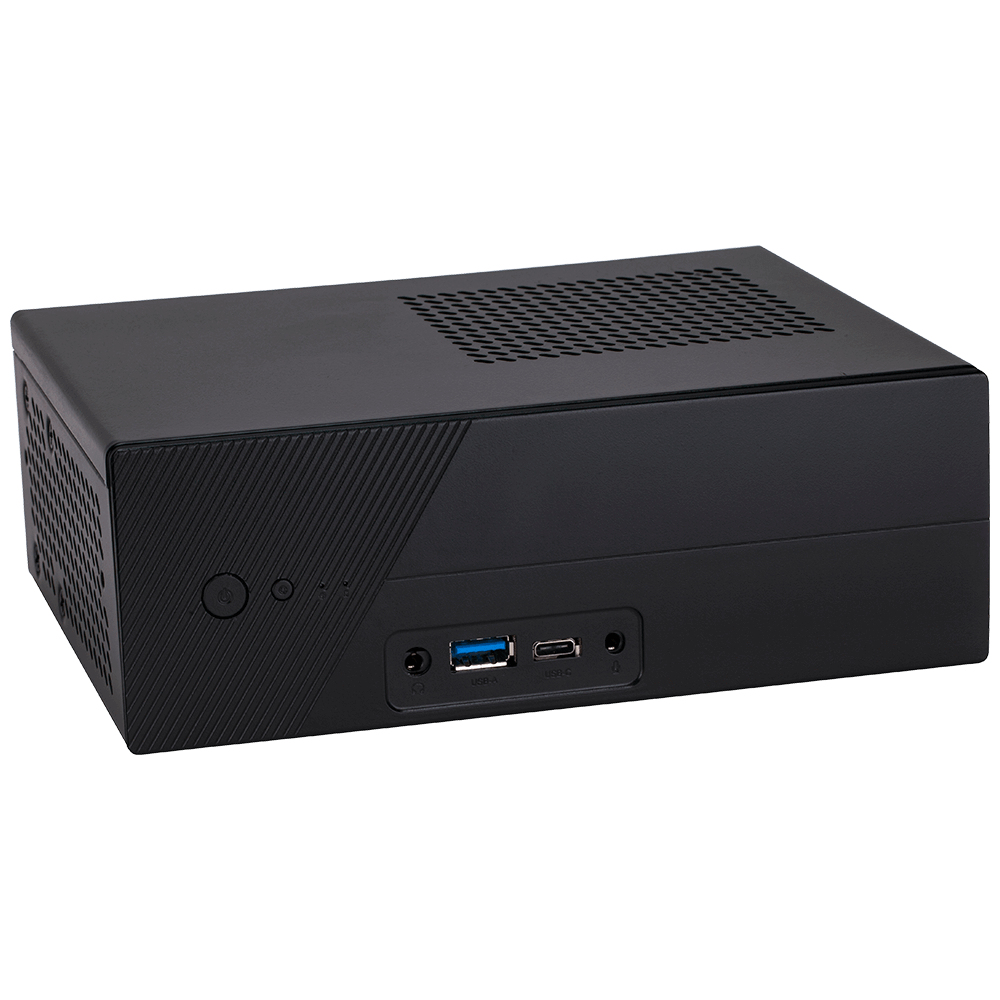

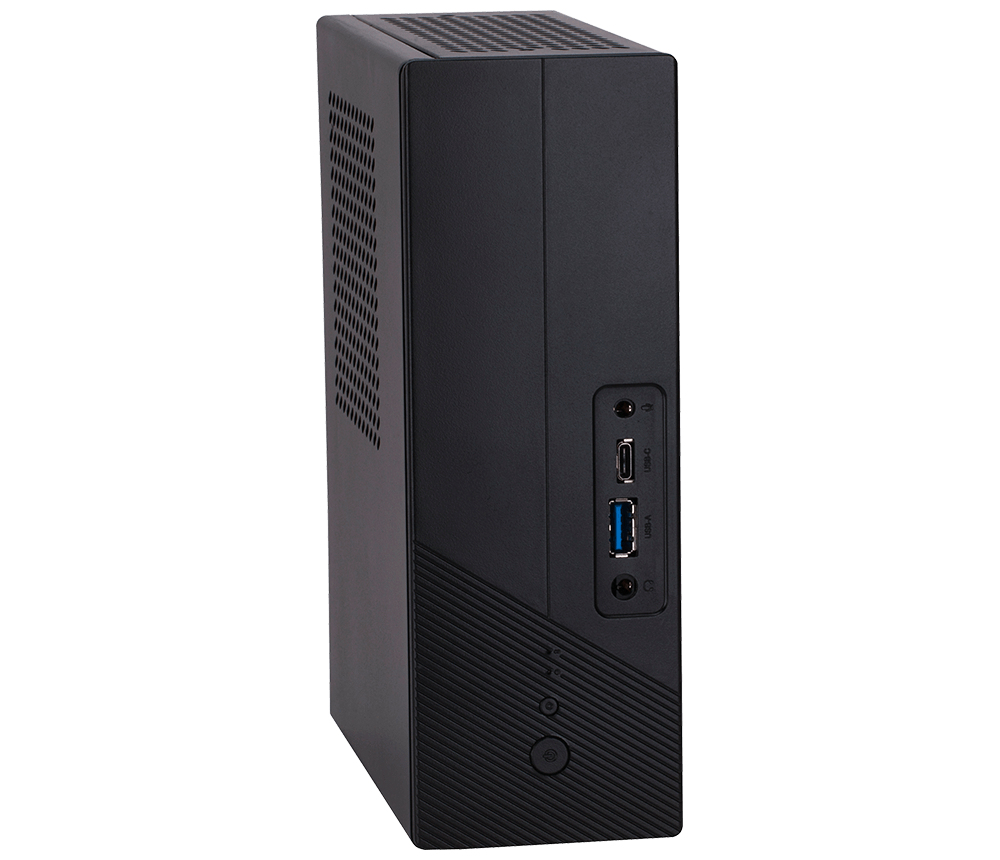

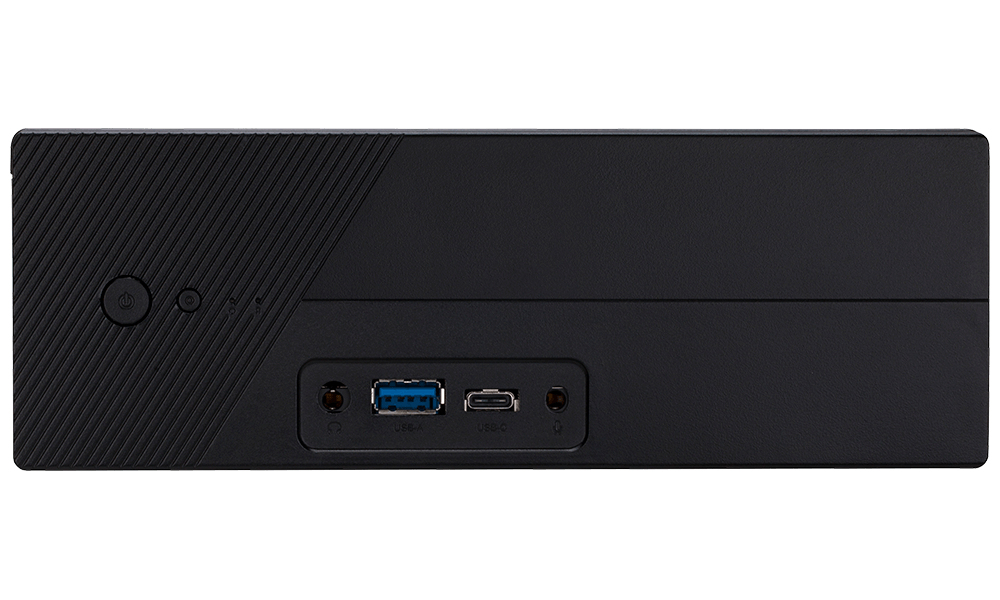

GA-H310MSTX-HD3-CM PC/workstation barebone Black LGA 1151 (Socket H4)
Model GA-H310MSTX-HD3-CMEAN 4719331805722
46 specifications
- ColourBlack
- Built-in processorNo
- Memory slots typeSO-DIMM
- Supported storage drive typesHDD & SSD
- On-board graphics cardYes
- Processor socketLGA 1151 (Socket H4)
Overview
- Colour
- Black
- Built-in processor
- No
- Memory slots type
- SO-DIMM
- Supported storage drive types
- HDD & SSD
- On-board graphics card
- Yes
- Processor socket
- LGA 1151 (Socket H4)
- Brand
- GIGABYTE
- Category
- PC/Workstation Barebones
- Model
- GA-H310MSTX-HD3-CM
- Part number
- GA-H310MSTX-HD3-CM
- EAN / UPC
- 4719331805722
- Also known as
- GIGABYTE GA-H310MSTX-HD3-CM PC/workstation barebone Black LGA 1151 (Socket H4)
Specifications
46 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2133 MHz |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics |
| Maximum resolution | 4096 x 2160 pixels |
Performance
| Specification | Value |
|---|---|
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
| Audio chip | Realtek ALC255 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I219-V |

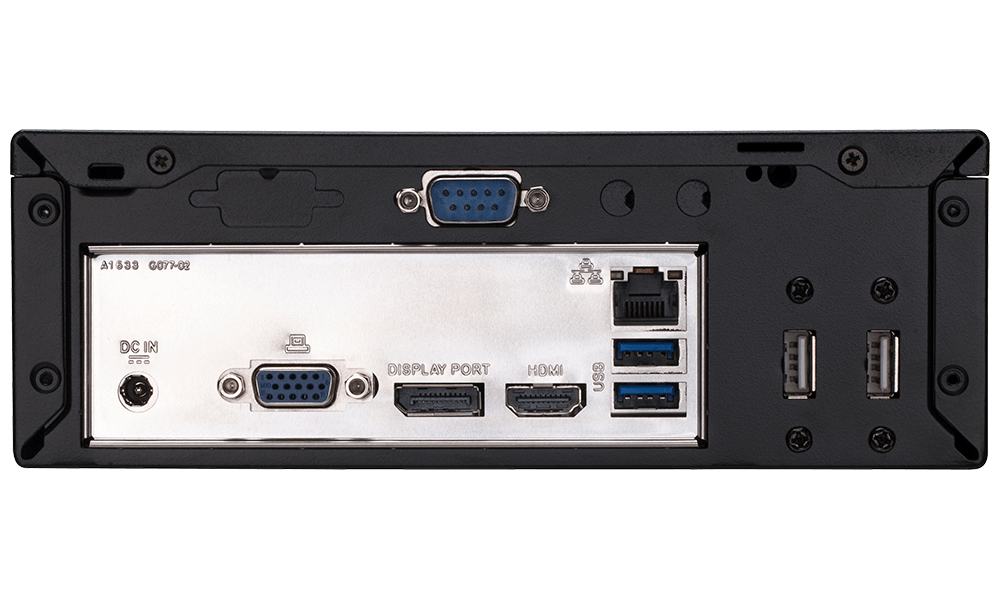

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of M.2 (M) slots | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64 |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 4.74 A |
| AC adapter output voltage | 19 V |
| Power supply | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 153 mm |
| Depth | 193 mm |
| Height | 67 mm |
