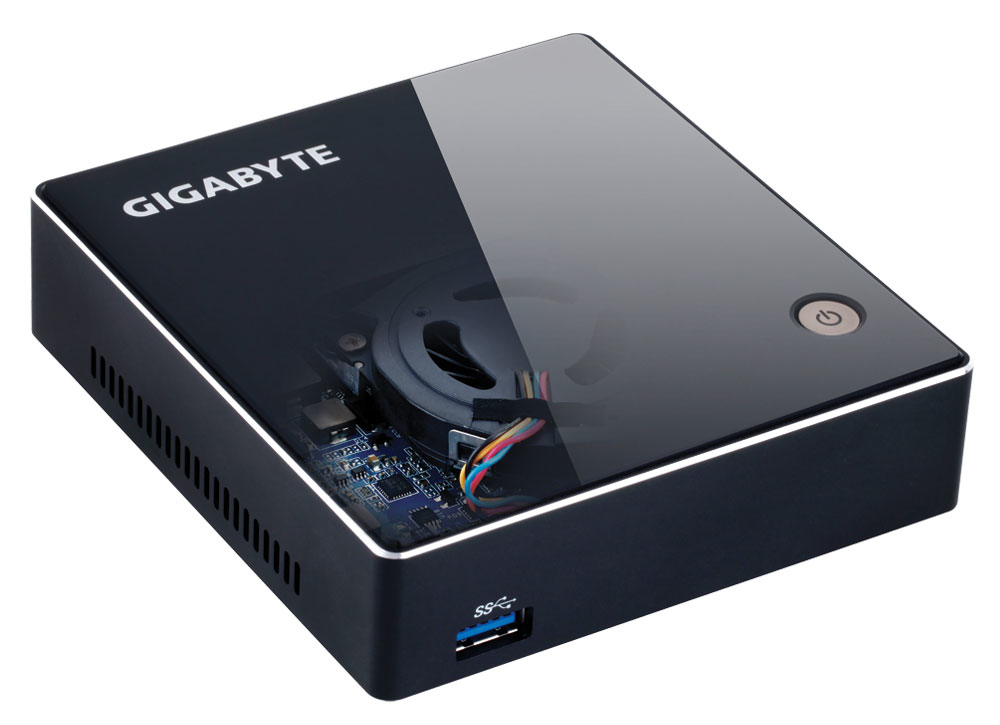

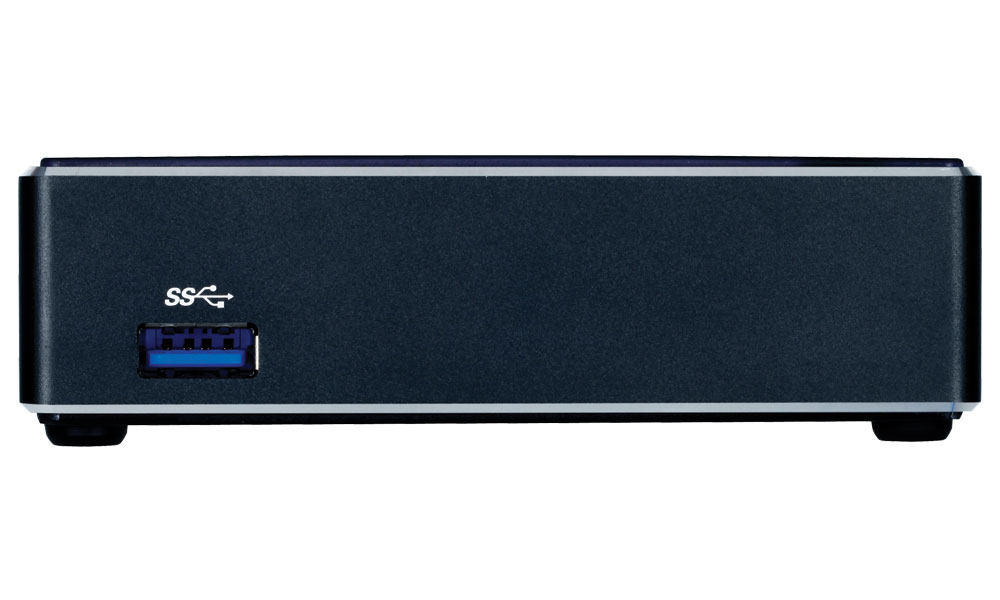

GIGABYTE Brix Nettop i7-3537U Intel HM77 Express BGA 1023
2 GHz
Model BrixPart no. GB-BXI3-4010EAN 5054629616017
65 specifications
- ProcessorIntel® Core™ i7
- TypeMini PC barebone
- Processor manufacturerIntel
- Memory slots typeSO-DIMM
- On-board graphics cardYes
- Motherboard chipsetIntel HM77 Express
Overview
- Processor
- Intel® Core™ i7
- Type
- Mini PC barebone
- Processor manufacturer
- Intel
- Memory slots type
- SO-DIMM
- On-board graphics card
- Yes
- Motherboard chipset
- Intel HM77 Express
- Brand
- GIGABYTE
- Category
- PC/Workstation Barebones
- Model
- Brix
- Part numbers
- GB-BXI3-4010, GB-BXI5-4200, GB-BXI7-4500, GB-BXI3H-4010, GB-BXCEH-2955, GB-BXI5H-4200 +16 more
- EAN / UPC
- 5054629616017, 818313017451, 4719331231125, 8183130174512 +56 more
- Also known as
- GIGABYTE Brix Nettop i7-3537U Intel HM77 Express BGA 1023 2 GHz
Specifications
65 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 3rd gen Intel® Core™ i7 |
| Processor model | i7-3537U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.1 GHz |
| Processor frequency | 2 GHz |
| Processor lithography | 22 nm |
| Thermal Design Power (TDP) | 17 W |
| CPU configuration (max) | 1 |
| Processor codename | Ivy Bridge |
| Processor series | Intel Core i7-3500 Mobile series |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 1333,1600 MHz |
| Supported memory types | DDR3-SDRAM |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics 4000 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel HM77 Express |
| Processor socket | BGA 1023 |
| Number of processors supported | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8111E |

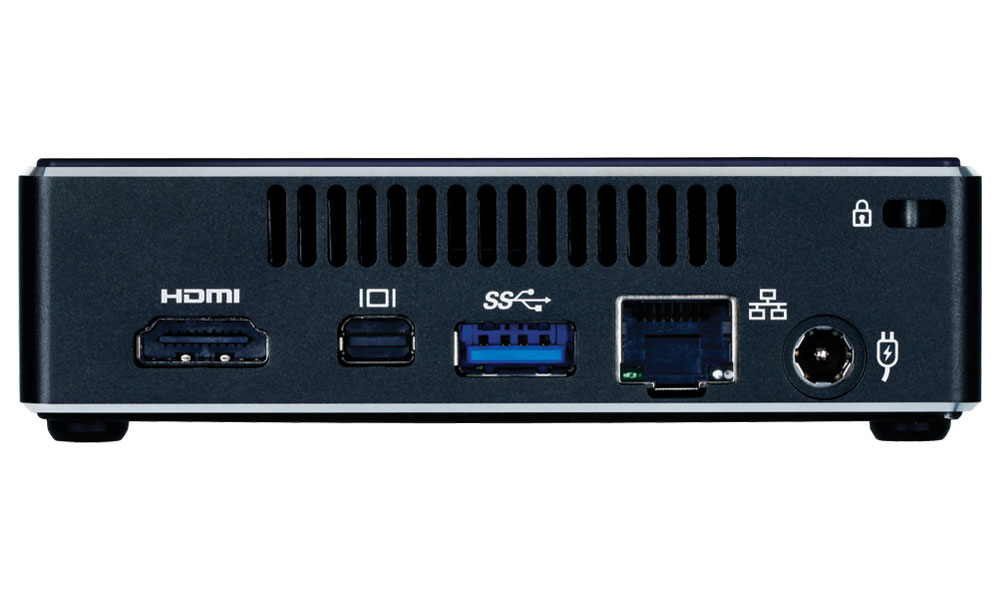

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Mini DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x8, 1x16, 2x4, 2x8 |
Design
| Specification | Value |
|---|---|
| Chassis type | Nettop |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
Compare GIGABYTE Brix Nettop i7-3537U Intel HM77 Express BGA 1023

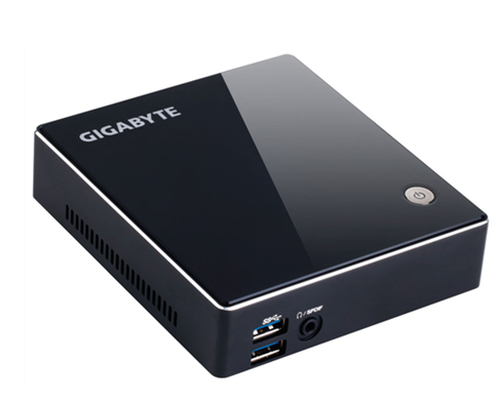

Compare any products- GIGABYTE Brix Nettop i7-3537U Intel HM77 Express BGA 1023 vsGIGABYTE GB-XM14-1037 PC/workstation barebone Black 1037U Intel® NM70 Express BGA 1023Compare specs

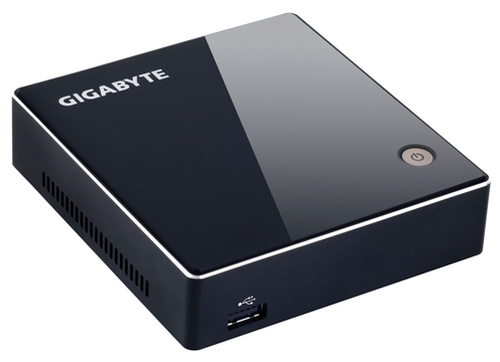

- GIGABYTE Brix Nettop i7-3537U Intel HM77 Express BGA 1023 vsGIGABYTE GB-BXCE-2955 PC/workstation barebone USFF Black 2955U BGA 1168Compare specs
- GIGABYTE Brix Nettop i7-3537U Intel HM77 Express BGA 1023 vsGIGABYTE GZ-AABC61-CNB CUPIO 6140 SIN FUENTE 2 USB 5 BAHIAS NEGROCompare specs
- GIGABYTE Brix Nettop i7-3537U Intel HM77 Express BGA 1023 vsGIGABYTE GZ-AA4CBP-SJB Tower, Midi-Tower BlackCompare specs

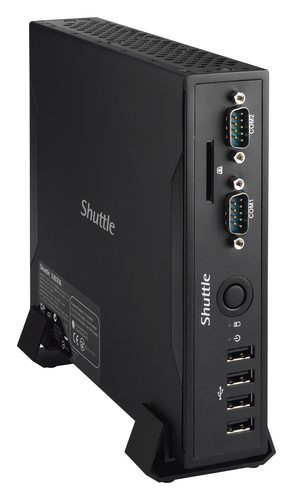

- GIGABYTE Brix Nettop i7-3537U Intel HM77 Express BGA 1023 vsShuttle DS47 PC/workstation barebone Black 847 Intel® NM70 Express BGA 1023Compare specs

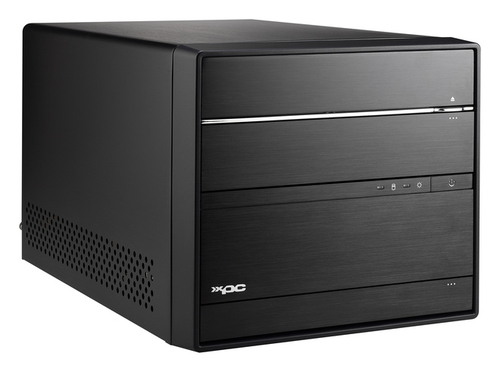

- GIGABYTE Brix Nettop i7-3537U Intel HM77 Express BGA 1023 vsShuttle SH87R6 PC/workstation barebone SFF Black Intel® H87 LGA 1150 (Socket H3)Compare specs

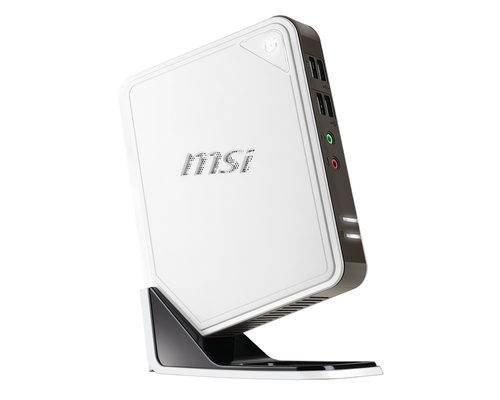

- GIGABYTE Brix Nettop i7-3537U Intel HM77 Express BGA 1023 vsMSI Wind Box DC110-X-WC847XXXXCompare specs

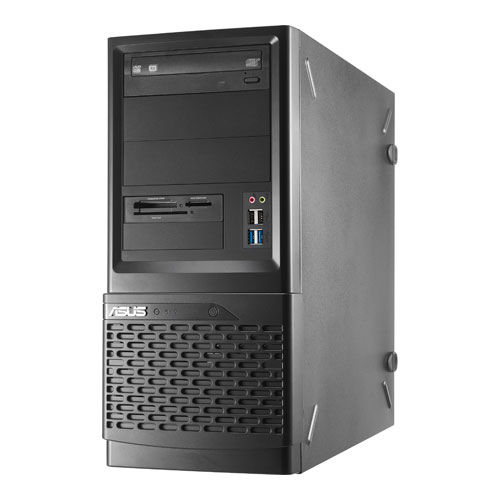

- GIGABYTE Brix Nettop i7-3537U Intel HM77 Express BGA 1023 vsASUS ESC700 G2Compare specs
