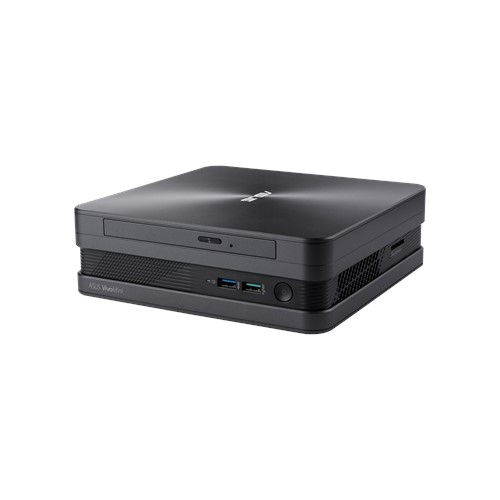

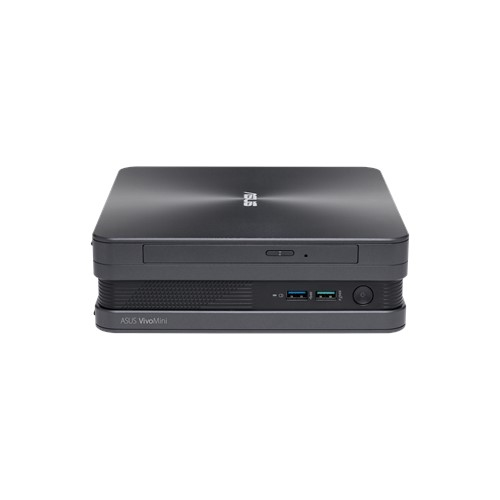

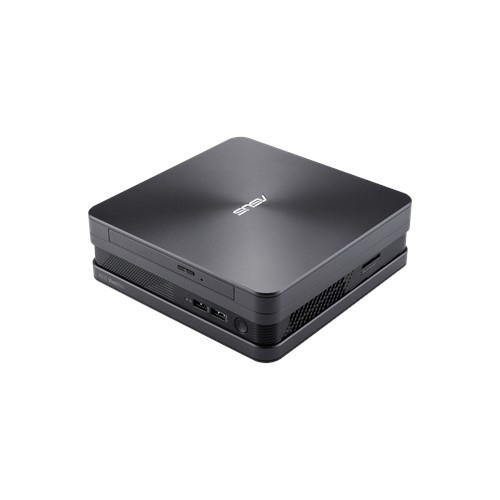

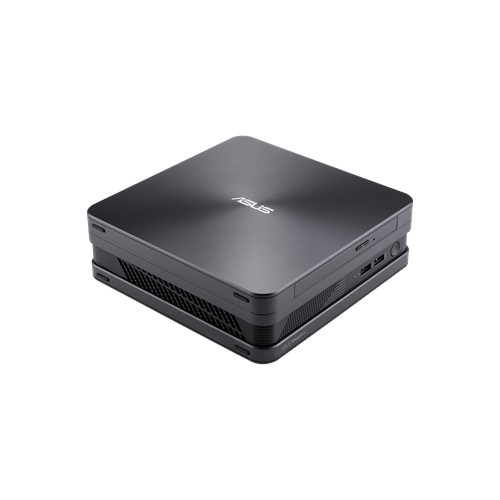

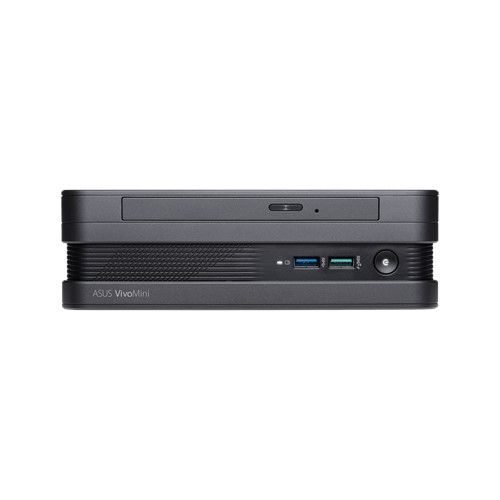

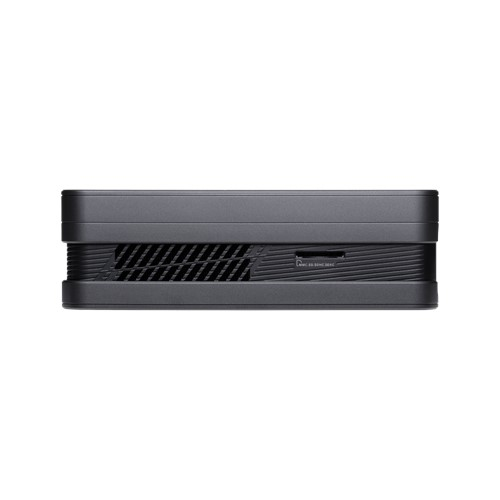

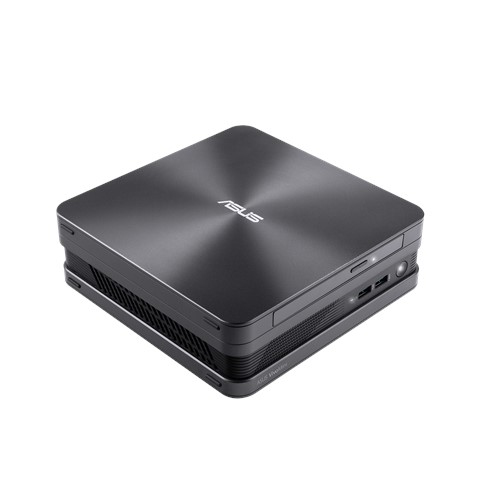

VivoMini VC65-C18I5BARBONE-CSM PC/workstation barebone Mini PC Grey i5-8400T Intel® B360 LGA 1151 (Socket H4)
1.7 GHz
Model VC65-C18I5BARBONE-CSMEAN 4718017052344
82 specifications
- ProcessorIntel® Core™ i5
- TypeMini PC
- Weight2.2 kg
- ColourGrey
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel® Core™ i5
- Type
- Mini PC
- Weight
- 2.2 kg
- Colour
- Grey
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- VC65-C18I5BARBONE-CSM
- Part number
- VC65-C18I5BARBONE-CSM
- EAN / UPC
- 4718017052344
- Also known as
- ASUS VivoMini VC65-C18I5BARBONE-CSM PC/workstation barebone Mini PC Grey i5-8400T Intel® B360 LGA 1151 (Socket H4) 1.7 GHz
Specifications
82 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8400T |
| Processor cores | 6 |
| Processor boost frequency | 3.3 GHz |
| Processor frequency | 1.7 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 35 W |
| CPU configuration (max) | 1 |
| Processor codename | Coffee Lake |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2400 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics 630 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® B360 |
| Processor socket | LGA 1151 (Socket H4) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |

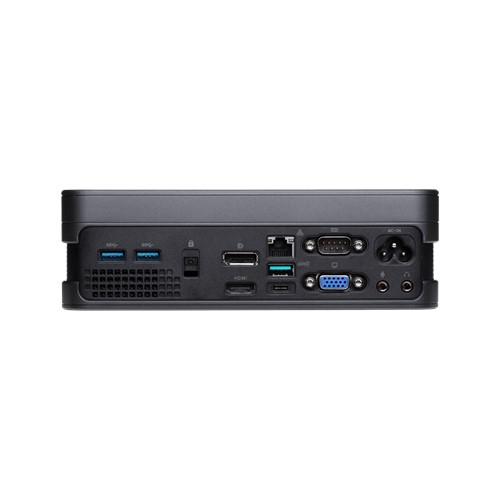

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Grey |
| Cooling type | Passive |
| Product type | Mini PC |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Thermal Monitoring Technologies | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/WiFi/RF/VCCI |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 90 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 197.5 mm |
| Depth | 196.3 mm |
| Height | 61.9 mm |
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Display included | No |
