ASUS V V7-P8H77E Black LGA 1155 (Socket H2)
Model V7-P8H77EPart no. 90PBCVAA310000AGCEZEAN 4716659109433
45 specifications
- ProcessorIntel
- Noise29 dB
- ColourBlack
- Memory slots typeDIMM
- Storage drive interfaceSerial ATA II, Serial ATA III
- On-board graphics cardYes
Overview
- Processor
- Intel
- Noise
- 29 dB
- Colour
- Black
- Memory slots type
- DIMM
- Storage drive interface
- Serial ATA II, Serial ATA III
- On-board graphics card
- Yes
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- V7-P8H77E
- Part number
- 90PBCVAA310000AGCEZ
- EAN / UPC
- 4716659109433
- Also known as
- ASUS V V7-P8H77E Black LGA 1155 (Socket H2)
Specifications
45 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 1600 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive interface | Serial ATA II, Serial ATA III |
| Number of storage drives supported | 4 |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics |
Performance
| Specification | Value |
|---|---|
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Built-in camera | No |
| Audio system | Azalia, Realtek ALC892 |
| Noise level (idle) | 29 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111F |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |

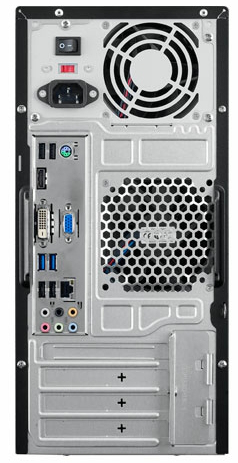

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 1 |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | Yes |
| Safety | CE/CB |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7 |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
Power
| Specification | Value |
|---|---|
| Power supply | 350 W |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Dimensions (WxDxH) | 168 x 380 x 354 mm |
| Power LED | Yes |
