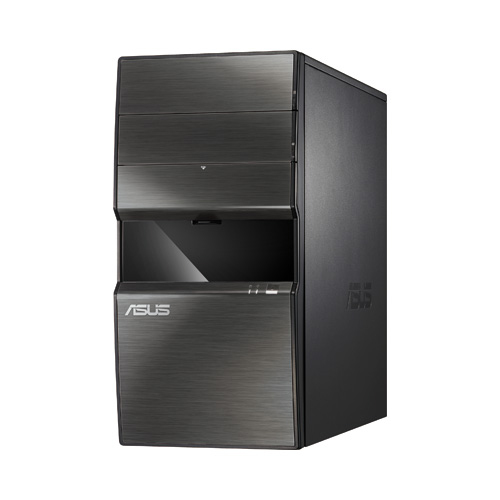

Value V4-P5P43 Silver Intel® P43 Express LGA 775 (Socket T)
Model V4-P5P43Part no. PB9UAA200006EAN 4719543788066
29 specifications
- ProcessorIntel
- ColourSilver
- Memory slots typeDIMM
- Number of storage drives supported7
- Motherboard chipsetIntel® P43 Express
- USB 2.0 ports quantity8
Overview
- Processor
- Intel
- Colour
- Silver
- Memory slots type
- DIMM
- Number of storage drives supported
- 7
- Motherboard chipset
- Intel® P43 Express
- USB 2.0 ports quantity
- 8
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- V4-P5P43
- Part numbers
- PB9UAA200006, PB9UAA200000, 90PB9UAA200006AGCE, 90PB9UAA200000AGCE, 90PB9UAA200000AGCEZ, 90PB9UAA200006AGCEZ
- EAN / UPC
- 4719543788066, 4719543787922, 610839788064
- Also known as
- ASUS Value V4-P5P43 Silver Intel® P43 Express LGA 775 (Socket T)
Specifications
29 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 7 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® P43 Express |
| Processor socket | LGA 775 (Socket T) |
| Supported processor frequency (max) | 1.6 GHz |
| Audio output channels | 7.1 channels |
| Audio system | VT 1708S |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek RTL8111C Gigabit Ethernet, WLAN 802.11 b/g/n |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Firewire (IEEE 1394) ports | 1 |
| PS/2 ports quantity | 1 |
| S/PDIF out port | Yes |
| eSATA ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | No |
| Product colour | Silver |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Vista, Windows XP |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Dimensions (WxDxH) | 168 x 380 x 354 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 6 |
| Drive bays | 2 x 3.5", 2 x 5.25" |
| Expansion slots | 2 x PCI, 1 x PCI-e x 1, 1 x PCI-e x 16 |
