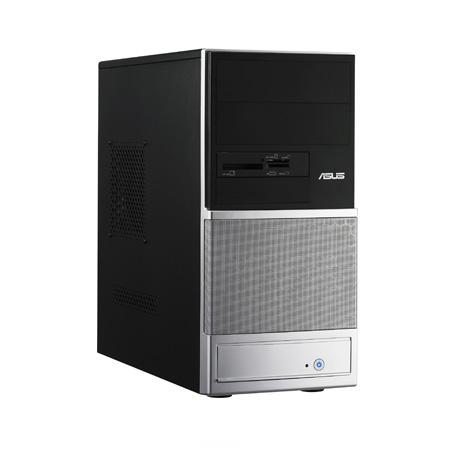

V3-P5G45 PC/workstation barebone Mini-Tower LGA 775 (Socket T)
Model V3-P5G45
27 specifications
- ProcessorIntel
- Maximum internal memory16 GB
- On-board graphics cardYes
- Processor socketLGA 775 (Socket T)
- Networking featuresGigabit Ethernet
- USB 2.0 ports quantity10
Overview
- Processor
- Intel
- Maximum internal memory
- 16 GB
- On-board graphics card
- Yes
- Processor socket
- LGA 775 (Socket T)
- Networking features
- Gigabit Ethernet
- USB 2.0 ports quantity
- 10
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- V3-P5G45
- Part numbers
- V3-P5G45, PBBDAA210000AGCUZ, 90PBBDAA210000AGCU
- Also known as
- ASUS V3-P5G45 PC/workstation barebone Mini-Tower LGA 775 (Socket T)
Specifications
27 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA X4500 |
Performance
| Specification | Value |
|---|---|
| Processor socket | LGA 775 (Socket T) |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC1200 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 2 |
| PS/2 ports quantity | 1 |
| S/PDIF out port | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Vista Windows XP |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 168 x 380 x 354 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 6 |
| Drive bays | 3 x 3.5", 2 x 5.25" |
| Expansion slots | 1 x PCI 2 x PCI-e x 1 1 x PCI-e x 16 |
