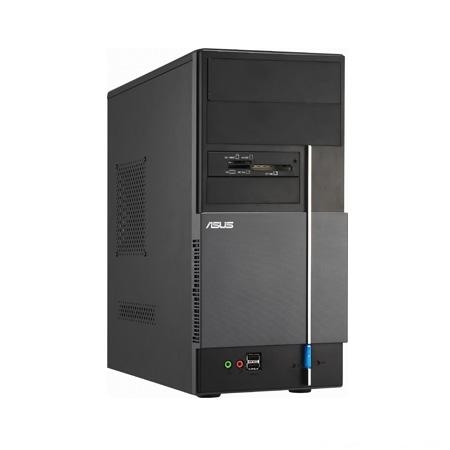

V2-P5G45, Black
Model V2-P5G45, BlackPart no. 90PBBCAB210000AGCUZEAN 4719543770122
29 specifications
- ProcessorIntel
- ColourBlack
- Maximum internal memory16 GB
- On-board graphics cardYes
- Processor socketLGA 775 (Socket T)
- Networking featuresGigabit Ethernet
Overview
- Processor
- Intel
- Colour
- Black
- Maximum internal memory
- 16 GB
- On-board graphics card
- Yes
- Processor socket
- LGA 775 (Socket T)
- Networking features
- Gigabit Ethernet
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- V2-P5G45, Black
- Part numbers
- 90PBBCAB210000AGCUZ, V2-P5G45, PBBCAB210000AGCUZ
- EAN / UPC
- 4719543770122
- Also known as
- ASUS V2-P5G45, Black Mini-Tower LGA 775 (Socket T)
Specifications
29 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA X4500 |
| Maximum graphics card memory | 1849 MB |
Performance
| Specification | Value |
|---|---|
| Processor socket | LGA 775 (Socket T) |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC1200 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 2 |
| PS/2 ports quantity | 1 |
| S/PDIF out port | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Vista Windows XP |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 168 x 380 x 354 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 6 |
| Drive bays | 3 x 3.5", 2 x 5.25" |
| Expansion slots | 1 x PCI 2 x PCI-e x 1 1 x PCI-e x 16 |
