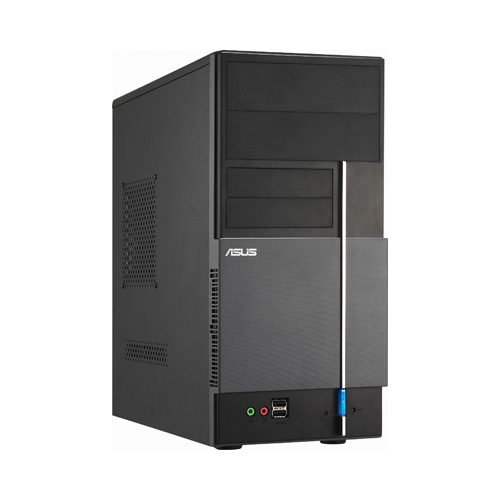

V2-P5G41H Black Intel® G41 Express LGA 775 (Socket T)
Model V2-P5G41HPart no. 90PBAXAB200000AGCUZEAN 4719543687369
30 specifications
- ColourBlack
- Memory slots typeDIMM
- Number of storage drives supported5
- On-board graphics cardYes
- Motherboard chipsetIntel® G41 Express
- Networking featuresAtheroes L1E
Overview
- Colour
- Black
- Memory slots type
- DIMM
- Number of storage drives supported
- 5
- On-board graphics card
- Yes
- Motherboard chipset
- Intel® G41 Express
- Networking features
- Atheroes L1E
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- V2-P5G41H
- Part number
- 90PBAXAB200000AGCUZ
- EAN / UPC
- 4719543687369
- Also known as
- ASUS V2-P5G41H Black Intel® G41 Express LGA 775 (Socket T)
Specifications
30 specifications in 11 groups
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 5 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA X4500 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® G41 Express |
| Processor socket | LGA 775 (Socket T) |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC887 |
Network
| Specification | Value |
|---|---|
| Networking features | Atheroes L1E |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | No |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Vista, Windows XP |
Certificates
| Specification | Value |
|---|---|
| Certification | WOL @ PME WOR @ PME WOR @ Ring |
Power
| Specification | Value |
|---|---|
| Power supply | 250 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 174 x 388 x 358 mm |
| Number of SATA connectors | 4 |
| Drive bays | 3 x 3.5" / 2 x 5.25" |
| Expansion slots | 2 x PCI 1 x PCI-e x 1 1 x PCI-e x 16 |
| Motherboard | uATX |
