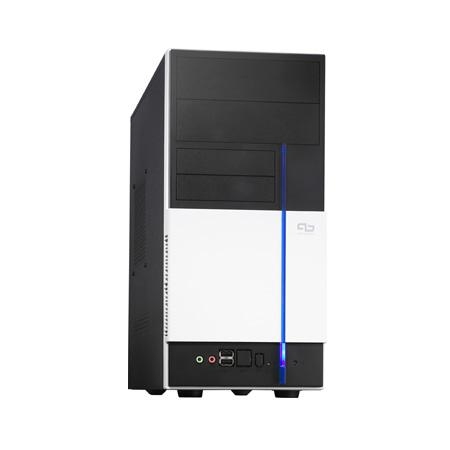

V2-M2NC61P Desktop NVIDIA MCP61P Socket AM2+
Model V2-M2NC61PPart no. V2-M2NC61P BLACKEAN 610839969746
23 specifications
- ProcessorAMD
- Maximum internal memory4 GB
- Maximum graphics card memory256 MB
- Motherboard chipsetNVIDIA MCP61P
- USB 2.0 ports quantity6
- Chassis typeDesktop
Overview
- Processor
- AMD
- Maximum internal memory
- 4 GB
- Maximum graphics card memory
- 256 MB
- Motherboard chipset
- NVIDIA MCP61P
- USB 2.0 ports quantity
- 6
- Chassis type
- Desktop
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- V2-M2NC61P
- Part numbers
- V2-M2NC61P BLACK, PBAFAB200000, V2-M2NC61P-BLK, V2M2NC61PBLACK, 90PBAFAB200000AGCU, 90PBAFAA200000AGCUZ +1 more
- EAN / UPC
- 610839969746, 4719543969748, 5052178130381
- Also known as
- ASUS V2-M2NC61P Desktop NVIDIA MCP61P Socket AM2+
Specifications
23 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor family | AMD |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 256 MB |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | NVIDIA MCP61P |
| Processor socket | Socket AM2+ |
| Audio output channels | 5.1 channels |
| Audio system | Realtek ALC662 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Window Vista/XP |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 168 x 380 x 354 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 2 |
| Drive bays | 3 x 3.5", 2 x 5.25" |
| Expansion slots | - 2 x PCI - 1 x PCI-e x16 |
