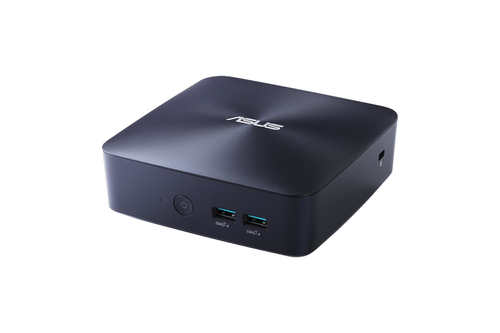

ASUS VivoMini UN65U-M179M PC/workstation barebone
0.88L sized PC Blue i5-7200U BGA 1356 2.5 GHz
Model UN65U-M179MEAN 889349827710
86 specifications
- ProcessorIntel® Core™ i5
- TypeMini PC barebone
- Weight700 g
- ColourBlue
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel® Core™ i5
- Type
- Mini PC barebone
- Weight
- 700 g
- Colour
- Blue
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- UN65U-M179M
- Part numbers
- UN65U-M179M, 90MS00W1-M01790
- EAN / UPC
- 889349827710
- Also known as
- ASUS VivoMini UN65U-M179M PC/workstation barebone 0.88L sized PC Blue i5-7200U BGA 1356 2.5 GHz
Specifications
86 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 7th gen Intel® Core™ i5 |
| Processor model | i5-7200U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.1 GHz |
| Processor frequency | 2.5 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Processor codename | Kaby Lake |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | M.2, Serial ATA III |
| Maximum storage capacity | 1256 TB |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1356 |
| Compatible processor series | Intel® Core™ i7 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
Design
| Specification | Value |
|---|---|
| Chassis type | 0.88L sized PC |
| Product colour | Blue |
| Cooling type | Passive |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 10 Home, Windows 10 Pro |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CE/FCC/UL/CCC/Energy Star/WiFi/RF/VCCI |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 131 mm |
| Depth | 131 mm |
| Height | 52 mm |
| Weight | 700 g |
What people say
Reviews & ratings
ASUS VivoMini UN65U-M179M PC/workstation barebone
No reviews yet
Be the first to tell others how ASUS VivoMini UN65U-M179M PC/workstation barebone works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS VivoMini UN65U-M179M PC/workstation barebone
All pc/workstation barebones comparisons- ASUS VivoMini UN65U-M179M PC/workstation barebone vsASUS VivoMini UN68U-BM012MCompare specs
- ASUS VivoMini UN65U-M179M PC/workstation barebone vsASUS VivoMini UN68U-BM011MCompare specs
- ASUS VivoMini UN65U-M179M PC/workstation barebone vsASUS VivoMini UN65U-M178M PC/workstation bareboneCompare specs
- ASUS VivoMini UN65U-M179M PC/workstation barebone vsASUS VivoMini UN65U-7I3M032M PC/workstation bareboneCompare specs

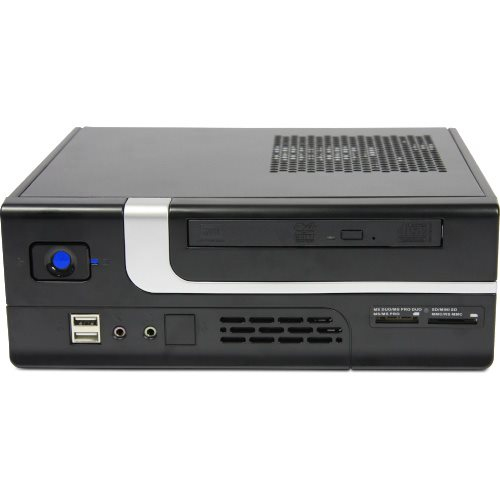

- ASUS VivoMini UN65U-M179M PC/workstation barebone vsTERRA PC-BUSINESS 5000 Compact SILENT+Compare specs
- ASUS VivoMini UN65U-M179M PC/workstation barebone vsMSI Cubi 3 Silent-002BAUCompare specs

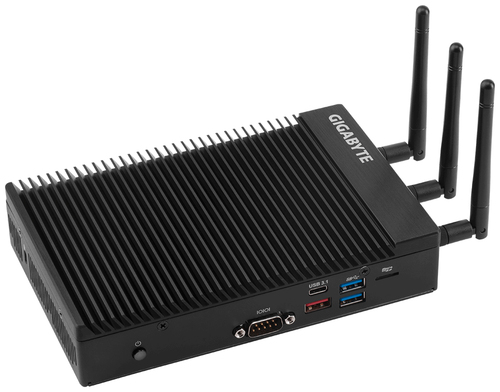

- ASUS VivoMini UN65U-M179M PC/workstation barebone vsGIGABYTE GB-EKI3M-7100 PC/workstation barebone Black i3-7100U BGA 1356Compare specs

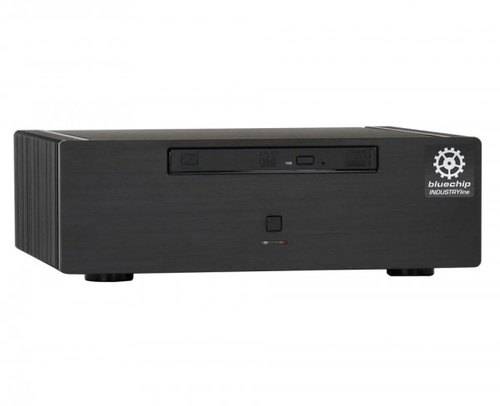

- ASUS VivoMini UN65U-M179M PC/workstation barebone vsbluechip INDUSTRYline S3000PCompare specs
