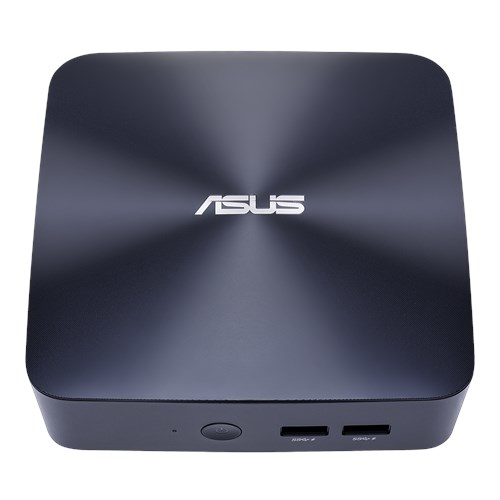

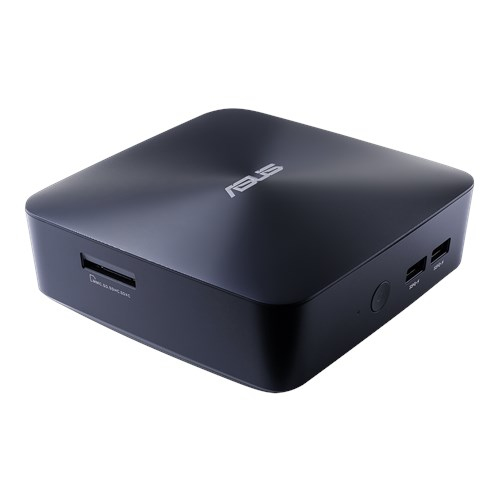

ASUS VivoMini UN65U-BM008M Blue i3-7100U BGA 1356
2.4 GHz
Model UN65U-BM008MPart no. 90MS00W1-M00080EAN 4712900597264
85 specifications
- ProcessorIntel® Core™ i3
- TypeMini PC barebone
- Weight700 g
- ColourBlue
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel® Core™ i3
- Type
- Mini PC barebone
- Weight
- 700 g
- Colour
- Blue
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- UN65U-BM008M
- Part number
- 90MS00W1-M00080
- EAN / UPC
- 4712900597264
- Also known as
- ASUS VivoMini UN65U-BM008M Blue i3-7100U BGA 1356 2.4 GHz
Specifications
85 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 7th gen Intel® Core™ i3 |
| Processor model | i3-7100U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 2.4 GHz |
| Processor lithography | 14 nm |
| L3 cache | 3 MB |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Processor codename | Kaby Lake |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2133 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|

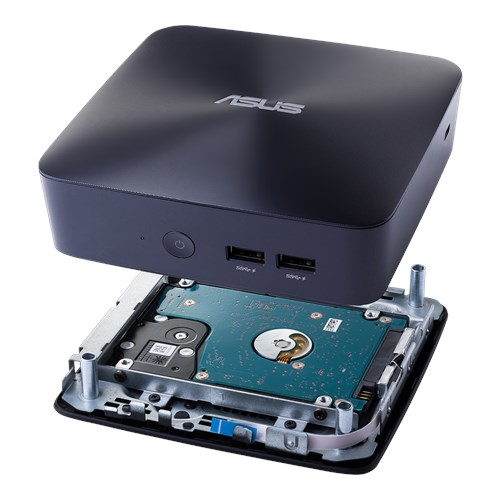

| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |

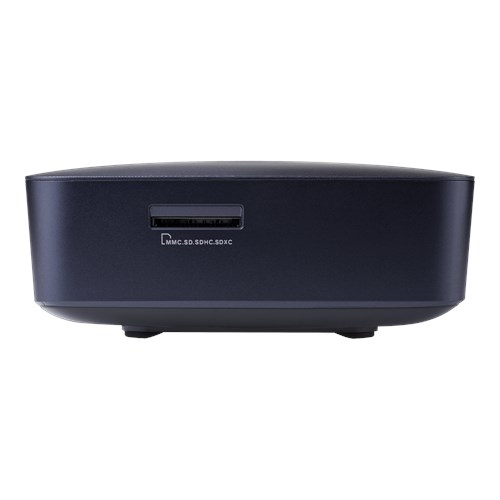

| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
| Intel® Optane™ Memory module installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics 620 |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1356 |
| Number of processors supported | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

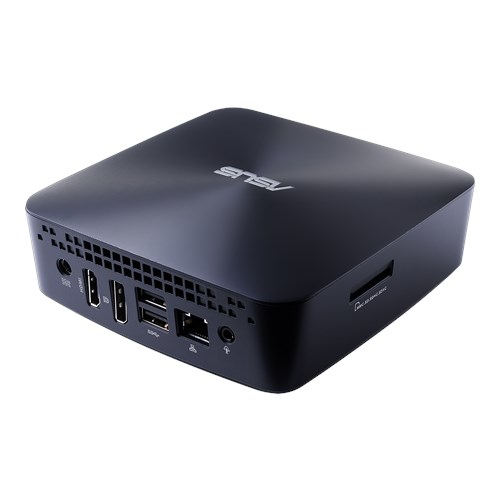

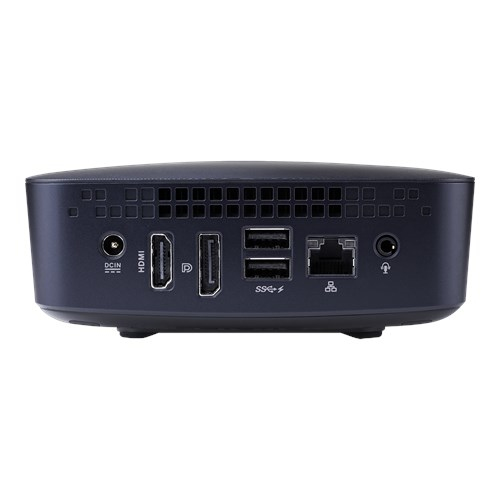

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |

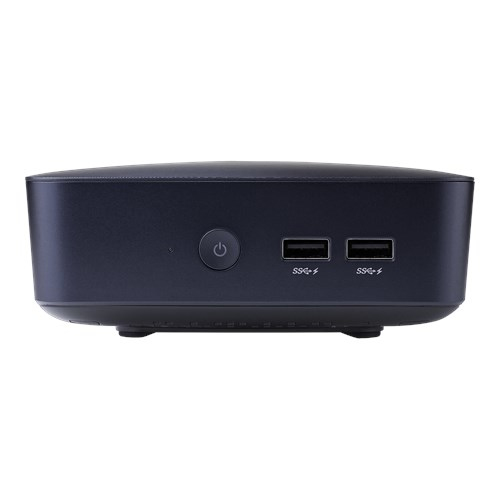

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
Design
| Specification | Value |
|---|---|
| Product colour | Blue |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 131 mm |
| Depth | 131 mm |
| Height | 52 mm |
| Weight | 700 g |
Other features
| Specification | Value |
|---|---|
| Processor ARK ID | 95442 |
