ASUS UN62-M018M Black i3-4030U BGA 1168
1.9 GHz
Model UN62-M018MPart no. 90MS00A1-M00180EAN 4716659903253
80 specifications
- ProcessorIntel® Core™ i3
- TypeMini PC barebone
- OSNo
- Weight1 kg
- ColourBlack
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel® Core™ i3
- Type
- Mini PC barebone
- OS
- No
- Weight
- 1 kg
- Colour
- Black
- Memory slots type
- SO-DIMM
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- UN62-M018M
- Part number
- 90MS00A1-M00180
- EAN / UPC
- 4716659903253
- Also known as
- ASUS UN62-M018M Black i3-4030U BGA 1168 1.9 GHz
Specifications
80 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 4th gen Intel® Core™ i3 |
| Processor model | i3-4030U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.9 GHz |
| Processor lithography | 22 nm |
| L3 cache | 3 MB |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Processor codename | Haswell |
| Processor series | Intel® Core™ i3-4000 Mobile Series |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 1600 MHz |
| Supported memory types | DDR3L-RS-SDRAM |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1168 |
| Number of processors supported | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| PCI Express configurations | 4x1, 2x4 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel FDI Technology | No |
| Intel ME Firmware Version | 9.5 |
| Intel Rapid Storage Technology | Yes |
| Intel Smart Connect Technology | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 131 mm |
| Depth | 131 mm |
| Height | 42 mm |
| Weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Display included | No |
What people say
Reviews & ratings
ASUS UN62-M018M Black i3-4030U BGA 1168
No reviews yet
Be the first to tell others how ASUS UN62-M018M Black i3-4030U BGA 1168 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS UN62-M018M Black i3-4030U BGA 1168
All pc/workstation barebones comparisons- ASUS UN62-M018M Black i3-4030U BGA 1168 vsASUS UN42-M023M PC/workstation barebone Black, Blue 2957U BGA 1168Compare specs
- ASUS UN62-M018M Black i3-4030U BGA 1168 vsASUS VC62B-B006M 2L sized PC Black i3-4030U BGA 1168 1.9 GHzCompare specs
- ASUS UN62-M018M Black i3-4030U BGA 1168 vsASUS UN42-M016M PC/workstation bareboneCompare specs
- ASUS UN62-M018M Black i3-4030U BGA 1168 vsASUS ESC700 G2Compare specs

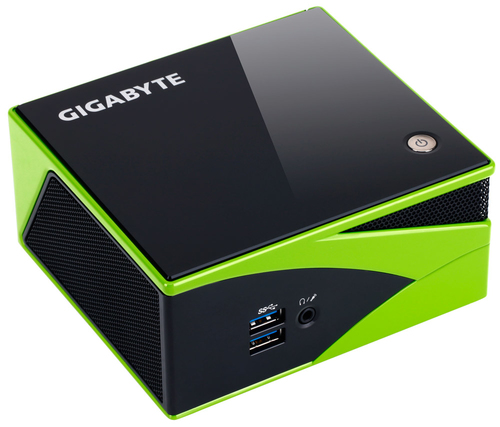

- ASUS UN62-M018M Black i3-4030U BGA 1168 vsGIGABYTE GB-BXi5G3-760 (rev. 1.0)Compare specs
