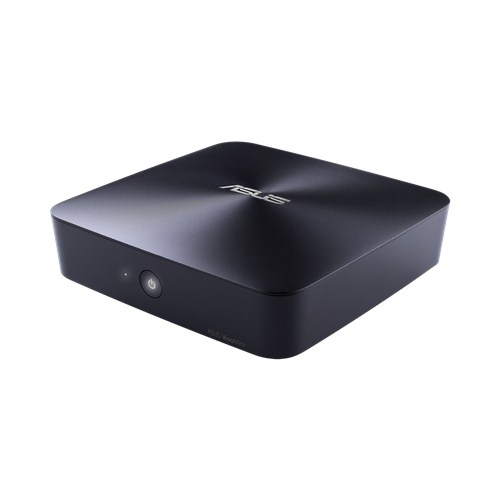

ASUS UN45H-VM062M PC/workstation barebone
1L sized PC Blue N3000 BGA 1170 1.04 GHz
Model UN45H-VM062M
83 specifications
- ProcessorIntel® Celeron®
- TypeMini PC barebone
- OSNo
- Weight700 g
- ColourBlue
- Built-in processorYes
Overview
- Processor
- Intel® Celeron®
- Type
- Mini PC barebone
- OS
- No
- Weight
- 700 g
- Colour
- Blue
- Built-in processor
- Yes
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- UN45H-VM062M
- Part number
- UN45H-VM062M
- Also known as
- ASUS UN45H-VM062M PC/workstation barebone 1L sized PC Blue N3000 BGA 1170 1.04 GHz
Specifications
83 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N3000 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.08 GHz |
| Processor frequency | 1.04 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 4 W |
| CPU configuration (max) | 1 |
| Processor codename | Braswell |
| Processor series | Intel Celeron N3000 series |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
| Supported memory clock speeds | 1600 MHz |
| Supported memory types | DDR3L-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | M.2, Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1170 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI port | No |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x4, 4x1 |
Design
| Specification | Value |
|---|---|
| Chassis type | 1L sized PC |
| Product colour | Blue |
| Cooling type | Passive |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Rapid Storage Technology | No |
| Intel Smart Connect Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CE/FCC/UL/CCC/Energy Star/WiFi/VCCI |
Power
| Specification | Value |
|---|---|
| Power supply | 45 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 131 mm |
| Depth | 131 mm |
| Height | 52 mm |
| Weight | 700 g |
Packaging content
| Specification | Value |
|---|---|
| Display included | No |
| Mouse included | Yes |
| Keyboard included | Yes |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
