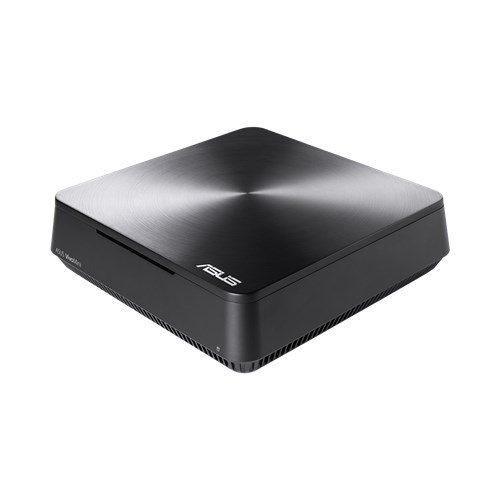

ASUS VivoMini UN45-DM153M
0.73L sized PC Blue N3150 BGA 1170 1.6 GHz
Model UN45-DM153MPart no. 90MS00L1-M01530EAN 4712900736281
76 specifications
- ProcessorIntel® Celeron®
- TypeMini PC barebone
- ColourBlue
- Built-in processorYes
- Memory slots typeDIMM
- Supported storage drive typesSSD
Overview
- Processor
- Intel® Celeron®
- Type
- Mini PC barebone
- Colour
- Blue
- Built-in processor
- Yes
- Memory slots type
- DIMM
- Supported storage drive types
- SSD
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- UN45-DM153M
- Part number
- 90MS00L1-M01530
- EAN / UPC
- 4712900736281
- Also known as
- ASUS VivoMini UN45-DM153M 0.73L sized PC Blue N3150 BGA 1170 1.6 GHz
Specifications
76 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N3150 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.08 GHz |
| Processor frequency | 1.6 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 6 W |
| CPU configuration (max) | 1 |
| Processor codename | Braswell |
| Processor series | Intel Celeron N3000 series |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
| Supported memory clock speeds | 1600 MHz |
| Supported memory types | DDR3L-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive interface | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1170 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x4, 4x1 |
Design
| Specification | Value |
|---|---|
| Chassis type | 0.73L sized PC |
| Product colour | Blue |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Rapid Storage Technology | No |
| Intel Smart Connect Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CE/FCC/UL/CCC/Energy Star/WiFi/RF/VCCI |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 131 mm |
| Depth | 131 mm |
| Height | 42 mm |
