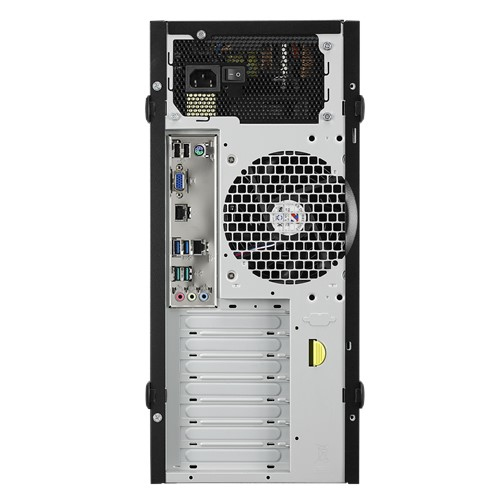

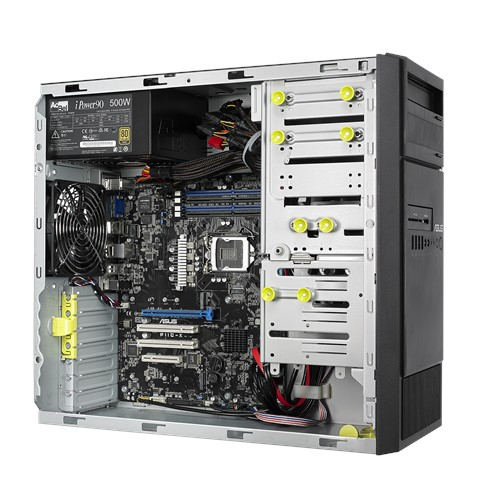

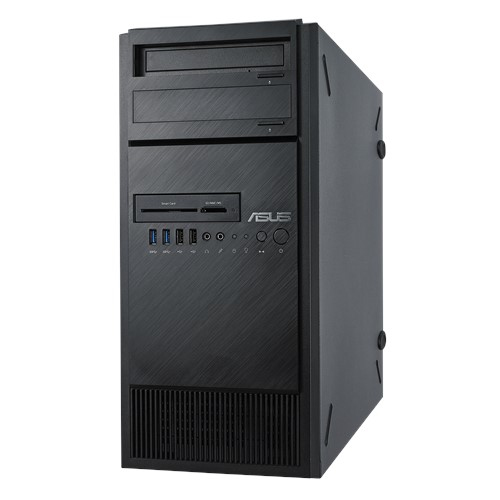

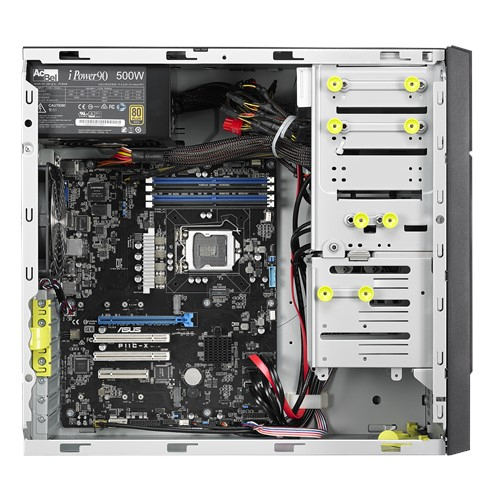

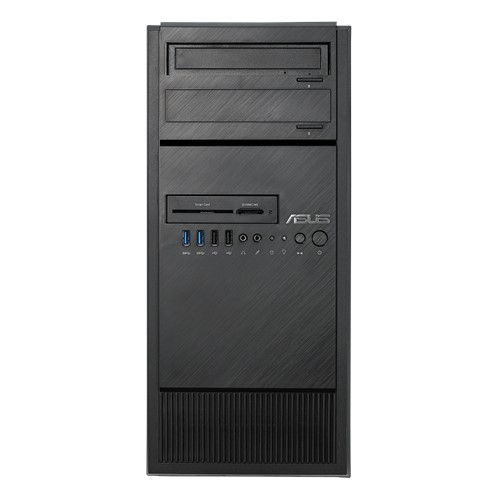

TS100-E10-PI4 Full-Tower Black, Metallic Intel C242 LGA 1151 (Socket H4)
Model TS100-E10-PI4Part no. 90SF00E1-M00410EAN 4718017237482
48 specifications
- TypeWorkstation barebone
- ColourBlack, Metallic
- Built-in processorNo
- Memory slots typeDIMM
- Supported storage drive typesHDD
- On-board graphics cardYes
Overview
- Type
- Workstation barebone
- Colour
- Black, Metallic
- Built-in processor
- No
- Memory slots type
- DIMM
- Supported storage drive types
- HDD
- On-board graphics card
- Yes
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- TS100-E10-PI4
- Part number
- 90SF00E1-M00410
- EAN / UPC
- 4718017237482
- Also known as
- ASUS TS100-E10-PI4 Full-Tower Black, Metallic Intel C242 LGA 1151 (Socket H4)
Specifications
48 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2400,2666 MHz |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD |
| Storage drive sizes supported | 2.5,3.5" |
| Storage drive interface | M.2, PCI Express, Serial ATA |
| Number of storage drives supported | 4 |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2510 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel C242 |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon® |
| Audio chip | Realtek ALC887-VD2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I210-AT, Intel I219LM |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Number of SATA III connectors | 6 |
| PS/2 ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
| Number of M.2 (M) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Full-Tower |
| Product colour | Black, Metallic |
| LED indicators | HDD, Power, Reset |
| Product type | Workstation barebone |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
| AC adapter output current | 7 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220 - 240 V |
| Power supply | 500 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 423 mm |
| Height | 435 mm |
