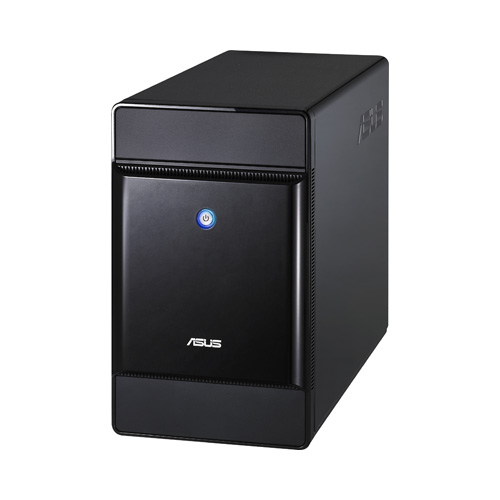

Terminator 3-P5P43
Model Terminator 3-P5P43Part no. 90PB9QAB100000AGCUZEAN 4719543767641
29 specifications
- ProcessorIntel
- ColourBlack
- Memory slots typeDIMM
- Number of storage drives supported4
- Motherboard chipsetIntel® P43 Express
- USB 2.0 ports quantity8
Overview
- Processor
- Intel
- Colour
- Black
- Memory slots type
- DIMM
- Number of storage drives supported
- 4
- Motherboard chipset
- Intel® P43 Express
- USB 2.0 ports quantity
- 8
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- Terminator 3-P5P43
- Part number
- 90PB9QAB100000AGCUZ
- EAN / UPC
- 4719543767641
- Also known as
- ASUS Booksize Terminator 3-P5P43 Mini-Tower Black Intel® P43 Express LGA 775 (Socket T)
Specifications
29 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
| Compatible memory cards | MMC, MS Pro, SD |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® P43 Express |
| Processor socket | LGA 775 (Socket T) |
| Supported processor frequency (max) | 1.6 GHz |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC1200 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| eSATA ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Vista, Windows XP |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 3 |
| Processor system buses supported | 1066,1333,1600 MHz |
| Drive bays | 2 x 3.5", 1 x 5.25" |
| Expansion slots | 1 x PCI, 1 x PCI-e x 16 |
