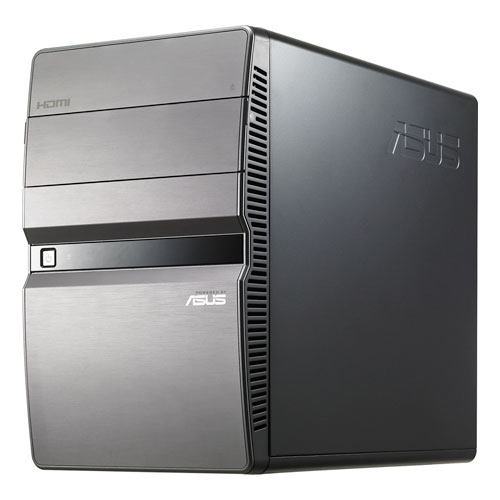

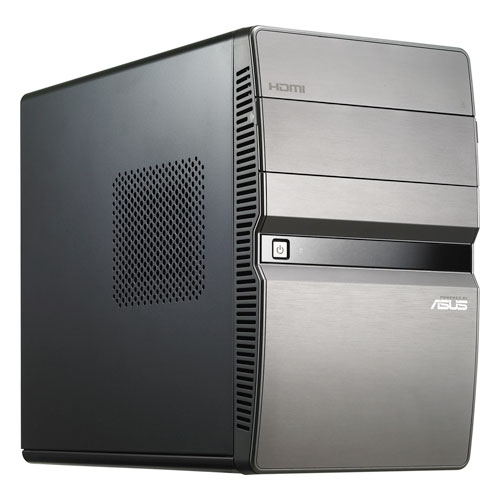

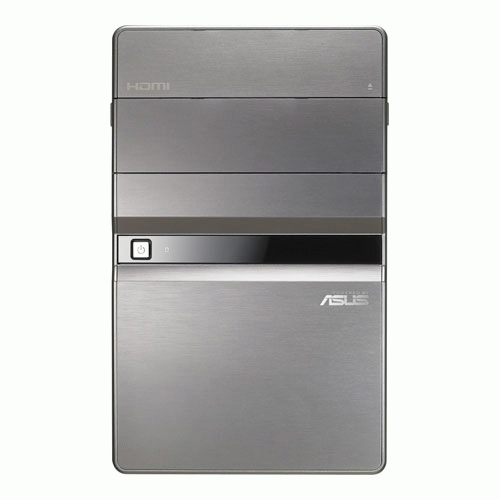

T T5-P5G41E Mini-Tower Silver Intel® G41 Express LGA 775 (Socket T)
Model T5-P5G41EPart no. 90PBCAAB200000AGCEZEAN 4719543098950
33 specifications
- ProcessorIntel
- ColourSilver
- Memory slots typeDIMM
- Card reader integratedYes
- Motherboard chipsetIntel® G41 Express
- LAN controllerAtheros L1E
Overview
- Processor
- Intel
- Colour
- Silver
- Memory slots type
- DIMM
- Card reader integrated
- Yes
- Motherboard chipset
- Intel® G41 Express
- LAN controller
- Atheros L1E
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- T5-P5G41E
- Part numbers
- 90PBCAAB200000AGCEZ, T5-P5G41E
- EAN / UPC
- 4719543098950
- Also known as
- ASUS T T5-P5G41E Mini-Tower Silver Intel® G41 Express LGA 775 (Socket T)
Specifications
33 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MS Pro, SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA X4500 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® G41 Express |
| Processor socket | LGA 775 (Socket T) |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC887 |
Network
| Specification | Value |
|---|---|
| LAN controller | Atheros L1E |
| Networking features | 10/100/1000 Mbps |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Silver |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7, Windows Vista, Windows XP |
Power
| Specification | Value |
|---|---|
| Power supply | 380 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 175 x 360 x 290 mm |
| Number of SATA connectors | 3 |
| Drive bays size | 13.3 cm (5.25") |
