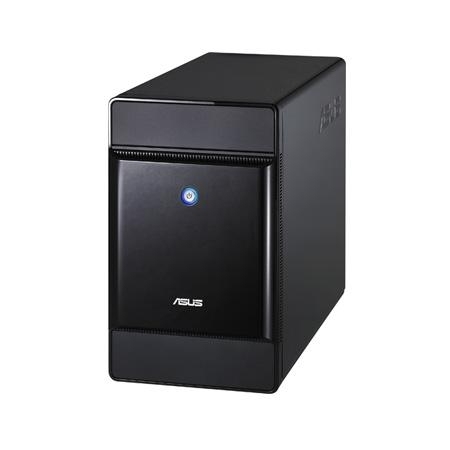

T3-P5945GCX Barebone - Black
Model T3-P5945GCX Barebone - BlackPart no. AS T3-P5945GCX BLA C
24 specifications
- ProcessorIntel
- ColourBlack
- Maximum internal memory4 GB
- Number of storage drives supported5
- On-board graphics cardYes
- Motherboard chipsetIntel® 945GC Express
Overview
- Processor
- Intel
- Colour
- Black
- Maximum internal memory
- 4 GB
- Number of storage drives supported
- 5
- On-board graphics card
- Yes
- Motherboard chipset
- Intel® 945GC Express
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- T3-P5945GCX Barebone - Black
- Part number
- AS T3-P5945GCX BLA C
- Also known as
- ASUS T3-P5945GCX Barebone - Black Mini-Tower Intel® 945GC Express LGA 775 (Socket T)
Specifications
24 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 5 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 950 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 945GC Express |
| Processor socket | LGA 775 (Socket T) |
| Supported processor frequency (max) | 1.333 GHz |
| Audio system | ADI AD1988B |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 2 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 175 x 360 x 290 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 3 |
