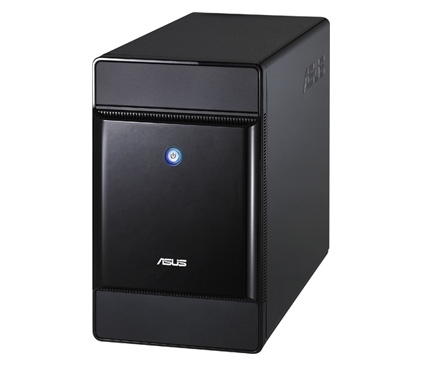

T3-M3N8200, Black
Model T3-M3N8200, BlackPart no. 90PB9JAB100000AGCONEAN 4719543984215
25 specifications
- ColourBlack
- Memory slots typeDIMM
- Compatible memory cardsCF, MMC, MS Pro, SD
- Processor socketSocket AM2+
- Networking features10/100/1000 Mbps
- USB 2.0 ports quantity6
Overview
- Colour
- Black
- Memory slots type
- DIMM
- Compatible memory cards
- CF, MMC, MS Pro, SD
- Processor socket
- Socket AM2+
- Networking features
- 10/100/1000 Mbps
- USB 2.0 ports quantity
- 6
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- T3-M3N8200, Black
- Part numbers
- 90PB9JAB100000AGCON, T3-M3N8200 BLACK
- EAN / UPC
- 4719543984215
- Also known as
- ASUS T3-M3N8200, Black Mini-Tower Socket AM2+
Specifications
25 specifications in 9 groups
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Compatible memory cards | CF, MMC, MS Pro, SD |
Performance
| Specification | Value |
|---|---|
| Processor socket | Socket AM2+ |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC883 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbps |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 2 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Vista/XP |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 175 x 360 x 290 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 3 |
| Drive bays | 2 x 3.5", 1 x 5.25" |
| Expansion slots | 1 x PCI 1 x PCI-e x 16 |
