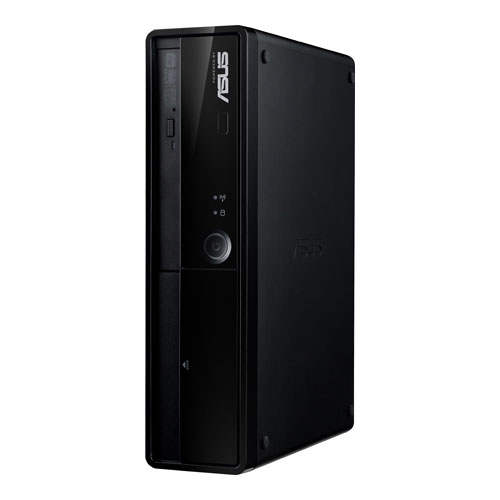

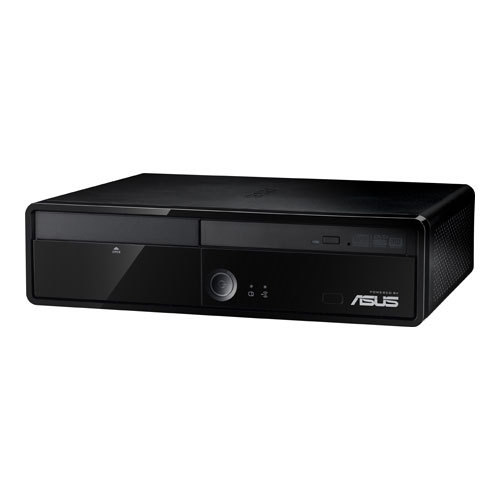

ASUS Booksize S1-AT5NM10E SFF Black D525 BGA 559
1.8 GHz
Model S1-AT5NM10EPart no. 90PBB1AD010011AGCEZEAN 4719543332122
48 specifications
- ProcessorIntel Atom®
- ColourBlack
- Processor manufacturerIntel
- Maximum internal memory4 GB
- Number of storage drives supported2
- Processor socketBGA 559
Overview
- Processor
- Intel Atom®
- Colour
- Black
- Processor manufacturer
- Intel
- Maximum internal memory
- 4 GB
- Number of storage drives supported
- 2
- Processor socket
- BGA 559
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- S1-AT5NM10E
- Part numbers
- 90PBB1AD010011AGCEZ, S1-AT5NM10E
- EAN / UPC
- 4719543332122, 5052179921841
- Also known as
- ASUS Booksize S1-AT5NM10E SFF Black D525 BGA 559 1.8 GHz
Specifications
48 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D525 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.8 GHz |
| Processor lithography | 45 nm |
| L2 cache | 1 MB |
| Thermal Design Power (TDP) | 13 W |
| Processor codename | Pineview |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 2 |
| Card reader integrated | Yes |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 559 |
| Supported processor frequency (max) | 1.8 GHz |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC887 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet, WLAN 802.11 b/g/n, IR, BT |

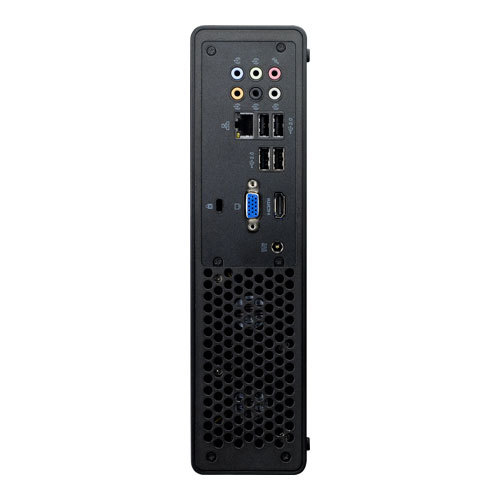

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Product colour | Black |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
| Thermal Monitoring Technologies | No |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7, Windows XP |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Dimensions (WxDxH) | 267 x 196.6 x 68.3 mm |
| Drive bays | 1 x 3.5", 1 x SlimType ODD |
| I/O ports | 2 x USB3.0, 1 x CIR |
