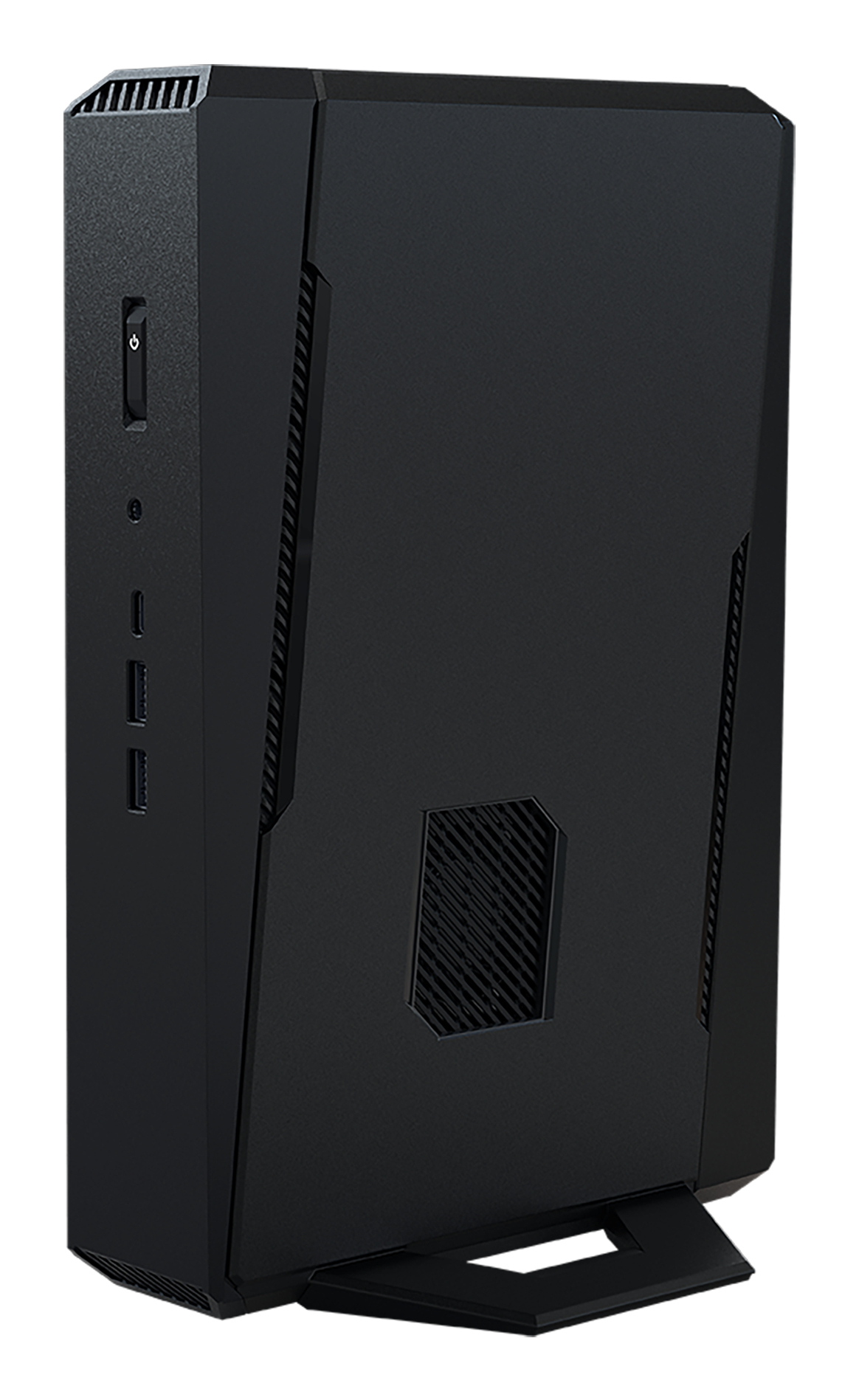

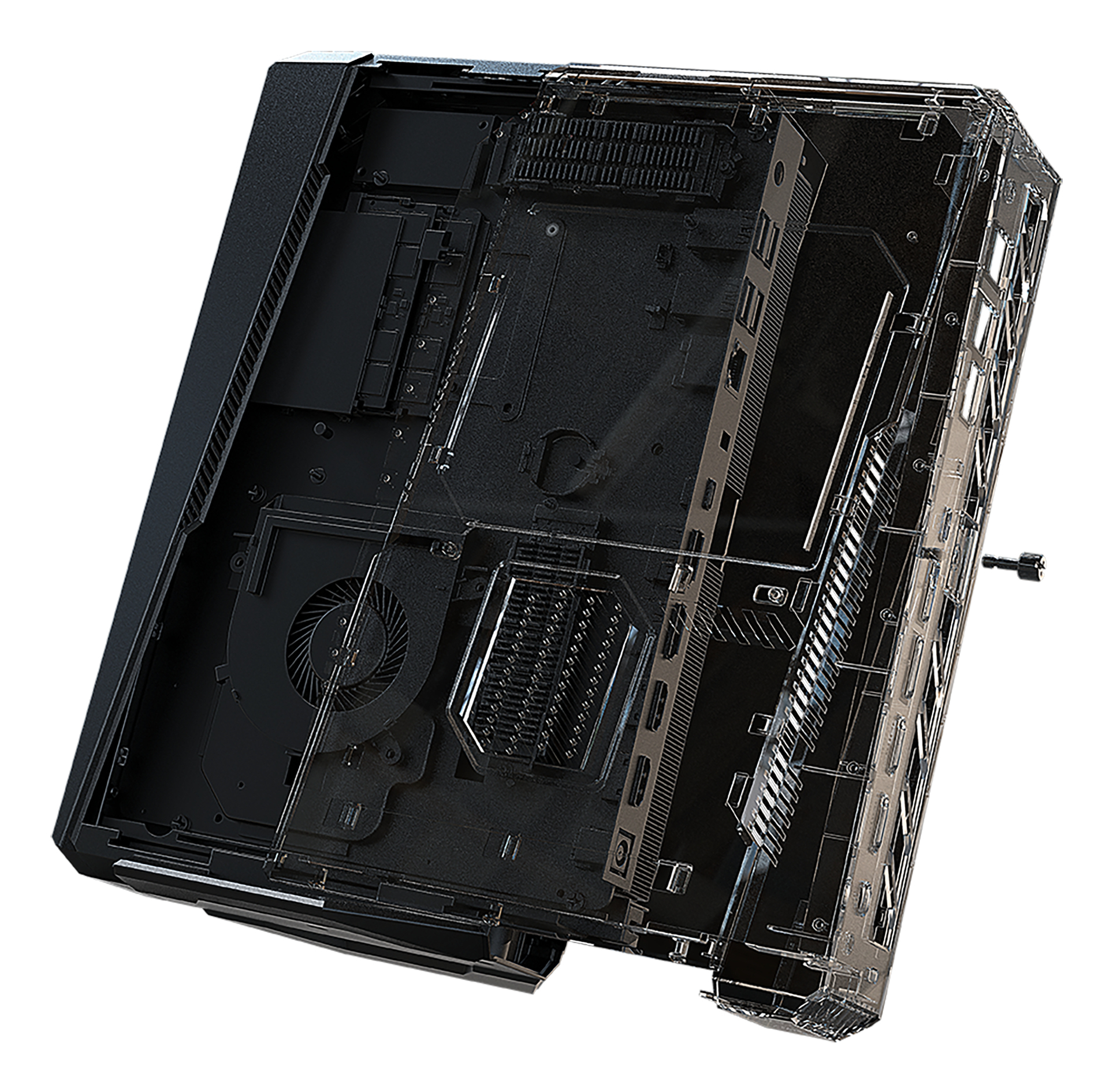

ASUS NUC 15 Performance RNUC15JNK7X50000
ASUS

NUC 15 Performance RNUC15JNK7X50000

3L sized PC Black 255HX BGA 2114

Model RNUC15JNK7X50000Part no. 90AR00V1-M000E0EAN 199291174269

76 specifications
  • ProcessorIntel Core Ultra 7
  • GraphicsNVIDIA GeForce RTX 5060
  • SpeedWi-Fi 7 (802.11be)
  • TypeMini PC barebone
  • OSNo
  • Weight3.12 kg
See all specifications

Overview

Processor
Intel Core Ultra 7
Graphics
NVIDIA GeForce RTX 5060
Speed
Wi-Fi 7 (802.11be)
Type
Mini PC barebone
OS
No
Weight
3.12 kg
Brand
ASUS
Model
RNUC15JNK7X50000
Part number
90AR00V1-M000E0
EAN / UPC
199291174269
Also known as
ASUS NUC 15 Performance RNUC15JNK7X50000 3L sized PC Black 255HX BGA 2114

Specifications

76 specifications in 12 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel Core Ultra 7
Processor generationIntel Core Ultra (Series 2)
Processor model255HX
Processor cores20
Processor threads20
Processor boost frequency5.2 GHz
Performance cores8
Efficient cores12
Performance-core Max Turbo Frequency5.2 GHz
Efficient-core Max Turbo Frequency4.5 GHz
Performance-core base frequency2.4 GHz
Efficient-core base frequency1.8 GHz
Processor cache30 MB

Memory

Internal memory installedNo
Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory96 GB
Supported memory clock speeds5600 MHz
Supported memory typesDDR5-SDRAM

Storage

Storage drives installedNo
Supported storage drive typesSSD
Storage drive sizes supportedM.2
M.2 SSD size2280 (22 x 80 mm)
SSD form factorM.2
Storage drive interfacePCI Express
NVMeYes
Number of storage drives supported2
Maximum storage capacity4 TB

Graphics

On-board graphics cardYes
Graphics card familyIntel, NVIDIA
On-board graphics card modelIntel® Graphics
Discrete graphics card modelNVIDIA GeForce RTX 5060
Graphics card memory typeGDDR7
Maximum graphics card memory8 MB
Number of displays supported5

Performance

Processor socketBGA 2114
Audio chipRealtek ALC3251

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
WLAN controller modelIntel Wi-Fi 7 BE200
BluetoothYes
Bluetooth version5.2

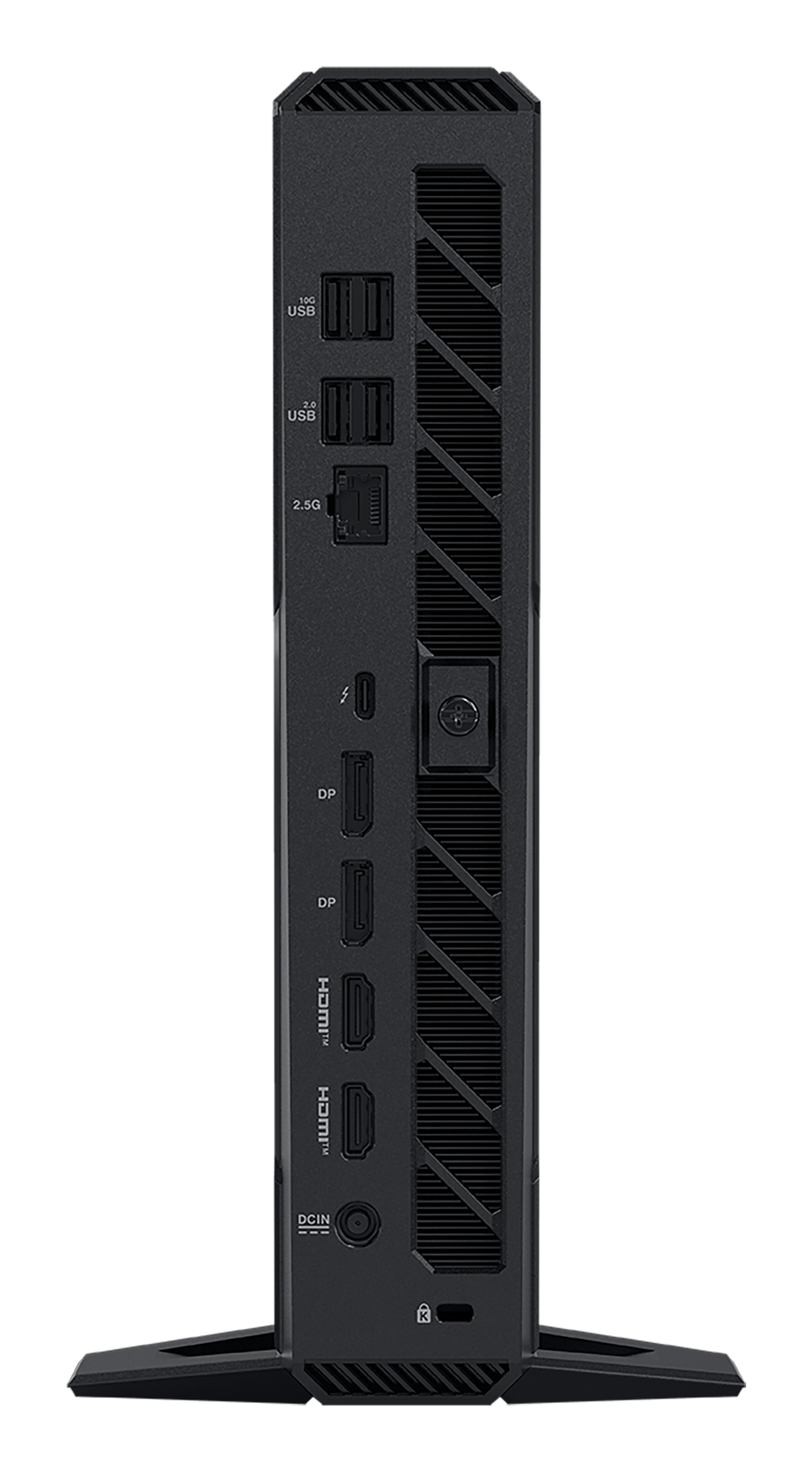

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
HDMI ports quantity2
HDMI version2.1
VGA (D-Sub) ports quantity0
DisplayPorts quantity2
DisplayPort version2.1
Combo headphone/mic portYes
Ethernet LAN (RJ-45) ports1
Thunderbolt 4 ports quantity1
DC-in jackYes

Design

Chassis type3L sized PC
Product colourBlack
Cooling typeActive
On/off switchYes
Cable lock slotYes
Cable lock slot typeKensington
Product typeMini PC barebone

Software

Operating system installedNo

Power

Power supply typeExternal AC adapter
AC adapter output current16.9 A
AC adapter output voltage19.5 V
Power supply330 W

Weight & dimensions

Width282.4 mm
Depth187.7 mm
Height56.5 mm
Weight3.12 kg
