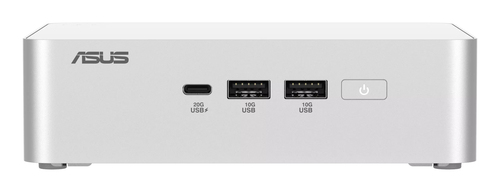

NUC 15 Pro+ RNUC15CRSU500003 Silver
Model RNUC15CRSU500003Part no. 90AR00P3-M00060EAN 197105950269
66 specifications
- SpeedWi-Fi 7 (802.11be)
- TypeMini PC barebone
- OSNo
- Weight600 g
- ColourSilver
- Built-in processorYes
Overview
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Mini PC barebone
- OS
- No
- Weight
- 600 g
- Colour
- Silver
- Built-in processor
- Yes
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- RNUC15CRSU500003
- Part number
- 90AR00P3-M00060
- EAN / UPC
- 197105950269, 4711387950265
- Also known as
- ASUS NUC 15 Pro+ RNUC15CRSU500003 Silver
Specifications
66 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor cores | 14 |
| Processor boost frequency | 4.9 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Efficient-core Max Turbo Frequency | 4.3 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 1.7 GHz |
| Efficient-core base frequency | 1.3 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 18 MB |
| Thermal Design Power (TDP) | 115 W |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 4800,6400 MHz |
| Supported memory types | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express |
| NVMe | Yes |
| Number of storage drives supported | 4 |
| Maximum storage capacity | 32 TB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Arc 130T |
| Maximum resolution | 7680 x 2400 pixels |
| Number of displays supported | 4 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | Intel Wi-Fi 7 BE201 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| LAN controller | Intel I226-V |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| Thunderbolt ports quantity | 2 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 11 |
| Linux operating systems supported | Yes |
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 6.32 A |
| AC adapter output voltage | 19 V |
| Power supply | 120 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 144 mm |
| Depth | 112 mm |
| Height | 42 mm |
| Weight | 600 g |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
