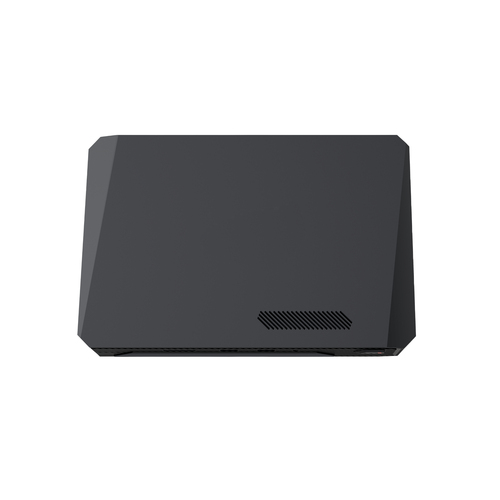

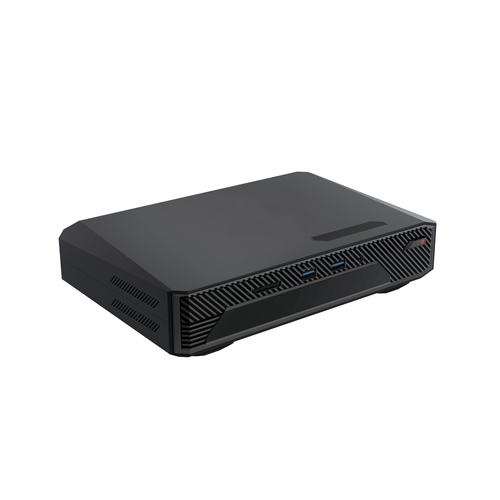

NUC 14 Performance RNUC14SRKU910004I
2.5L sized PC Black 185H
Model RNUC14SRKU910004IPart no. 90AR0042-M001C0EAN 197105611405
74 specifications
- ProcessorIntel Core Ultra 9
- GraphicsNVIDIA GeForce RTX 4070
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC barebone
- Weight2.6 kg
- ColourBlack
Overview
- Processor
- Intel Core Ultra 9
- Graphics
- NVIDIA GeForce RTX 4070
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC barebone
- Weight
- 2.6 kg
- Colour
- Black
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- RNUC14SRKU910004I
- Part number
- 90AR0042-M001C0
- EAN / UPC
- 197105611405, 4711387611401
- Also known as
- ASUS NUC 14 Performance RNUC14SRKU910004I 2.5L sized PC Black 185H
Specifications
74 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 185H |
| Processor cores | 16 |
| Processor threads | 22 |
| Processor boost frequency | 5.1 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 2.3 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Low Power Efficient-core Base Frequency | 1000 MHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
Memory
| Specification | Value |
|---|---|
| Internal memory installed | No |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Number of storage drives supported | 3 |
| Maximum storage capacity | 4 TB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel Arc Graphics |
| Discrete graphics card model | NVIDIA GeForce RTX 4070 |
| Number of displays supported | 4 |
Performance
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC256 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Killer Wi-Fi 6E AX1690 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| LAN controller | Intel I226-V |

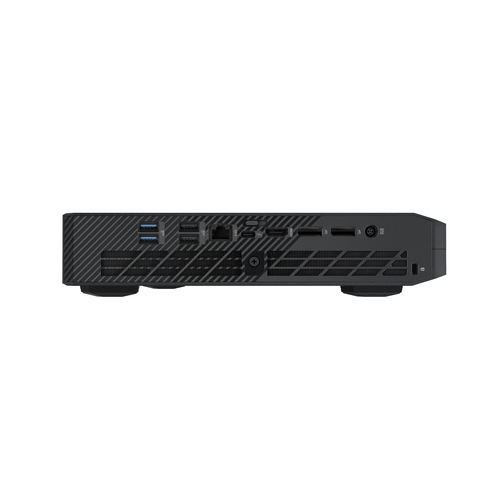

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4a |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | 2.5L sized PC |
| Product colour | Black |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 11 x64 |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 16.9 A |
| AC adapter output voltage | 19.5 V |
| Power supply | 330 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 180 mm |
| Height | 60 mm |
| Weight | 2.6 kg |
