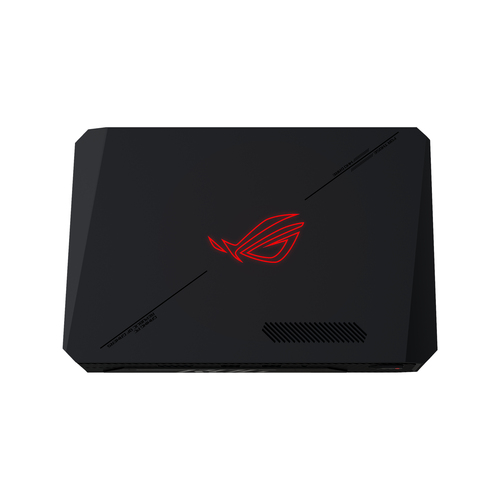

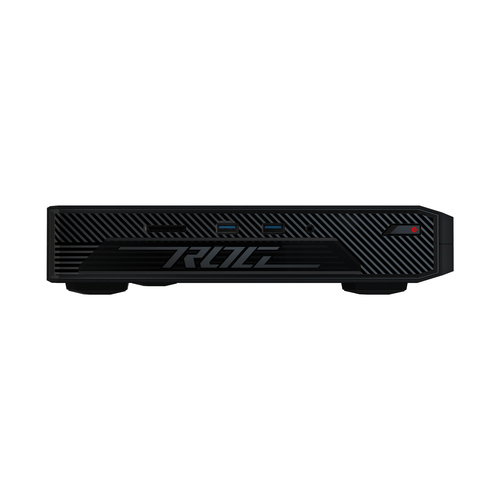

ROG NUC RNUC14SRKU710002I Black 155H
Model RNUC14SRKU710002IPart no. 90AR0041-M00040EAN 4711387490693
62 specifications
- ProcessorIntel Core Ultra 7
- GraphicsNVIDIA GeForce RTX 4060
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC barebone
- ColourBlack
- Built-in processorYes
Overview
- Processor
- Intel Core Ultra 7
- Graphics
- NVIDIA GeForce RTX 4060
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC barebone
- Colour
- Black
- Built-in processor
- Yes
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- RNUC14SRKU710002I
- Part number
- 90AR0041-M00040
- EAN / UPC
- 4711387490693
- Also known as
- ASUS ROG NUC RNUC14SRKU710002I Black 155H
Specifications
62 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 155H |
| Processor cores | 16 |
| Processor threads | 22 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core boost frequency | 4.8 GHz |
| Efficient-core boost frequency | 3.8 GHz |
| Processor cache | 24 MB |
| Thermal Design Power (TDP) | 28 W |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express |
| Number of storage drives supported | 3 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Arc Graphics |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
Performance
| Specification | Value |
|---|---|
| Motherboard form factor | NUC |
| Number of processors supported | 1 |
| Audio chip | Realtek ALC256 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4a |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| On/off switch | Yes |
| LED indicators | Yes |
| Product type | Mini PC barebone |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 11 |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Number of power supply units | 1 |
| Power supply | 300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 180 mm |
| Height | 50 mm |
