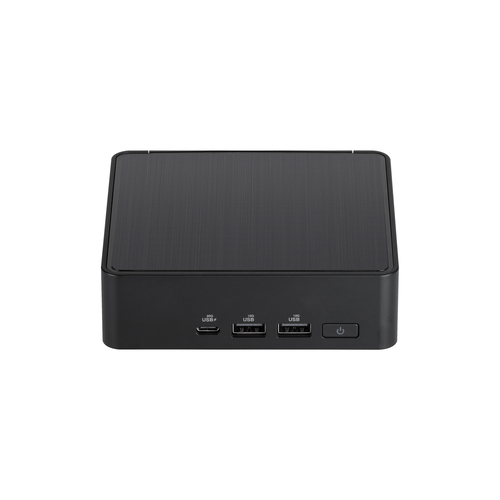

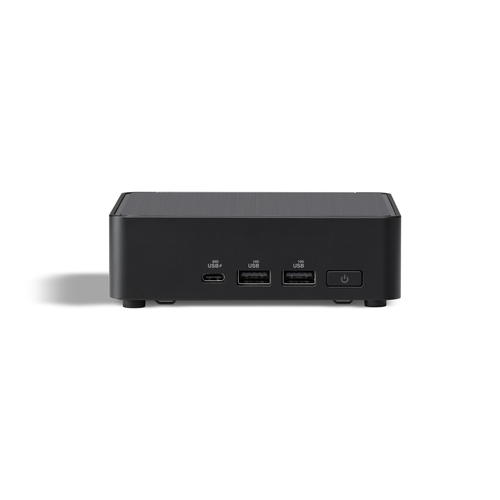

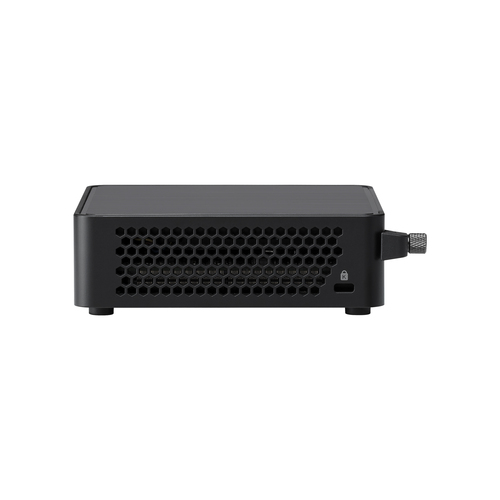

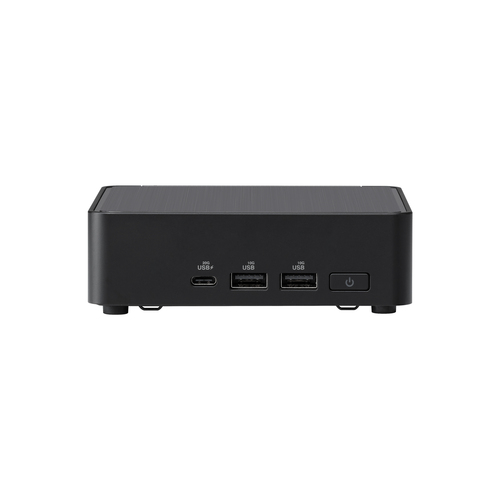

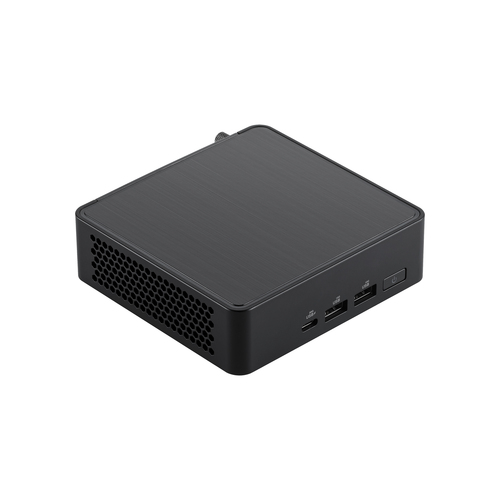

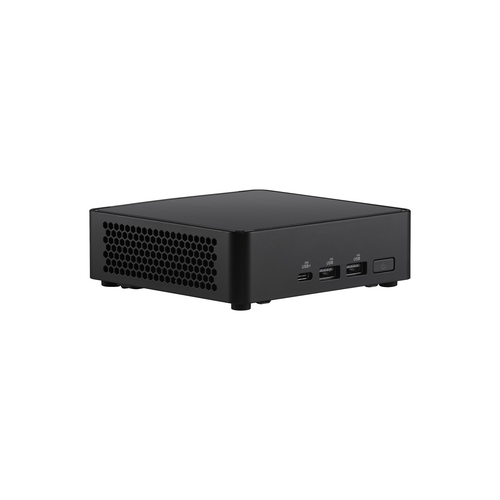

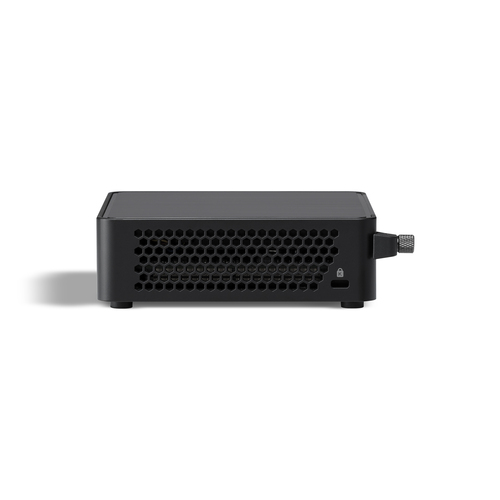

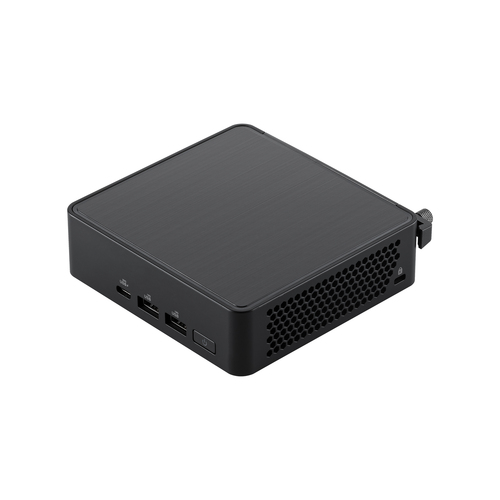

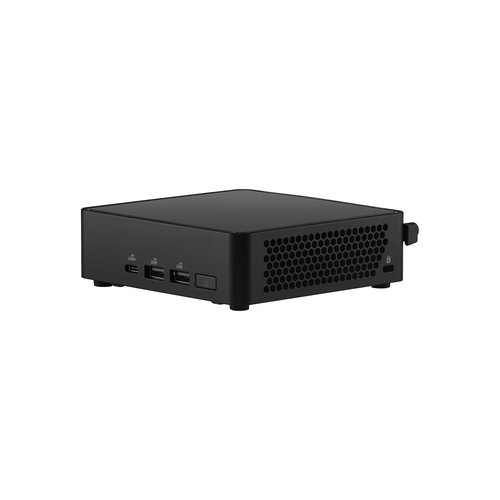

NUC 14 Pro RNUC14RVKU70000UI Black 155H
Model RNUC14RVKU70000UIPart no. 90AR0062-M000C0EAN 197105492349
58 specifications
- ProcessorIntel Core Ultra 7
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC barebone
- Weight500 g
- ColourBlack
- Built-in processorYes
Overview
- Processor
- Intel Core Ultra 7
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC barebone
- Weight
- 500 g
- Colour
- Black
- Built-in processor
- Yes
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- RNUC14RVKU70000UI
- Part number
- 90AR0062-M000C0
- EAN / UPC
- 197105492349, 4711387492345
- Also known as
- ASUS NUC 14 Pro RNUC14RVKU70000UI Black 155H
Specifications
58 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 155H |
| Processor cores | 16 |
| Processor threads | 22 |
| Processor boost frequency | 4.8 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory types | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Maximum storage capacity | 4 TB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Arc Graphics |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 120 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 117 mm |
| Depth | 112 mm |
| Height | 37 mm |
| Weight | 500 g |
