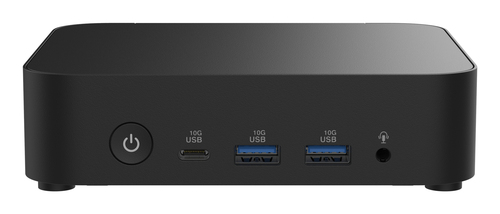

NUC 14 Essential RNUC14MNK9700000 Black N97
Model RNUC14MNK9700000Part no. 90AR00M2-M000C0
57 specifications
- ProcessorN97
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC barebone
- Weight470 g
- ColourBlack
Overview
- Processor
- N97
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC barebone
- Weight
- 470 g
- Colour
- Black
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- RNUC14MNK9700000
- Part number
- 90AR00M2-M000C0
- Also known as
- ASUS NUC 14 Essential RNUC14MNK9700000 Black N97
Specifications
57 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor model | N97 |
| Processor cores | 4 |
| Processor boost frequency | 3.6 GHz |
| Processor cache | 6 MB |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 4800 MHz |
| Supported memory types | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2 |
| Number of storage drives supported | 1 |
| Maximum storage capacity | 2 TB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card model | Not available |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Copper ethernet cabling technology | 2.5GBASE-T |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| LAN controller | Dragon RTL8125BG |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 135 mm |
| Depth | 115 mm |
| Height | 36 mm |
| Weight | 470 g |
