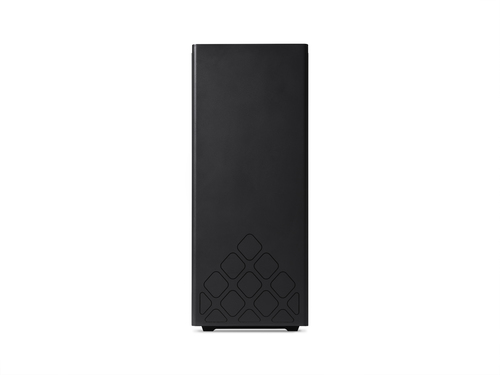

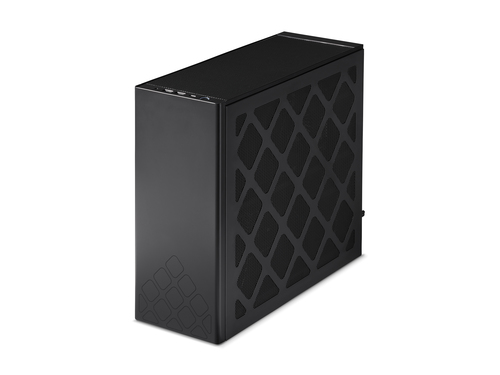

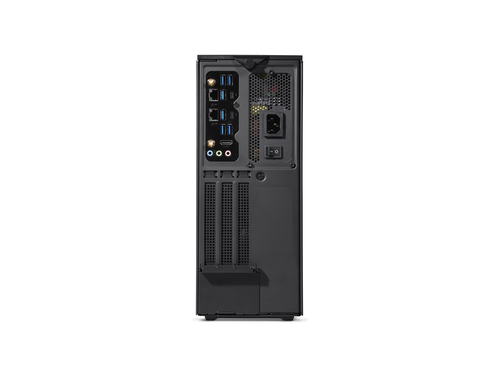

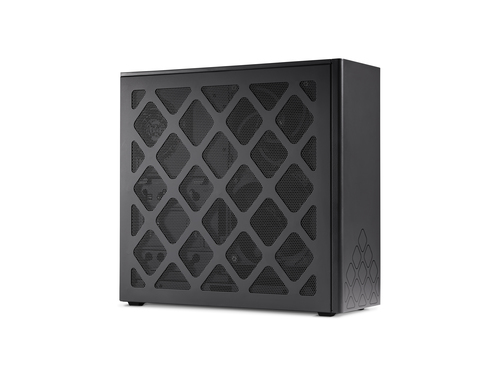

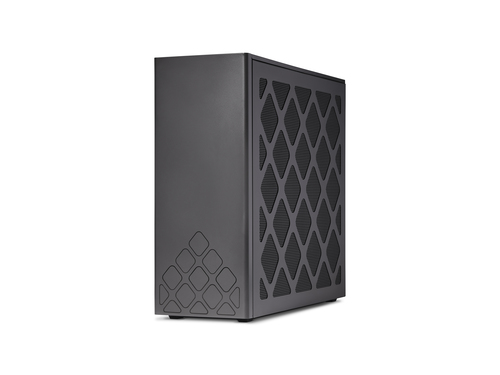

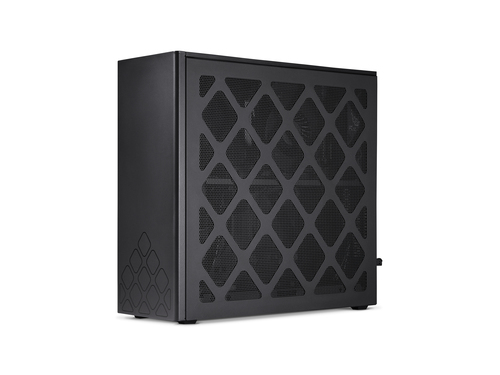

NUC 13 RNUC13RNGI50001 Desktop Black i5-13600K Intel Z690
Model RNUC13RNGI50001Part no. 90AB3RNG-MR6110
67 specifications
- ProcessorIntel® Core™ i5
- SpeedWi-Fi 6E (802.11ax)
- TypePC barebone
- OSNo
- ColourBlack
- Built-in processorYes
Overview
- Processor
- Intel® Core™ i5
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC barebone
- OS
- No
- Colour
- Black
- Built-in processor
- Yes
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- RNUC13RNGI50001
- Part number
- 90AB3RNG-MR6110
- Also known as
- ASUS NUC 13 RNUC13RNGI50001 Desktop Black i5-13600K Intel Z690
Specifications
67 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor model | i5-13600K |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor boost frequency | 5.1 GHz |
| Processor cache | 24 MB |
| L2 cache | 20 MB |
| Thermal Design Power (TDP) | 125 W |
Memory
| Specification | Value |
|---|---|
| Internal memory installed | No |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory types | DDR-SDRAM |
| ECC | No |
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | M.2,2.5 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| Number of storage drives supported | 5 |
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Graphics card family | Intel |
| On-board graphics card model | Intel UHD Graphics 770 |
| Number of displays supported | 3 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel Z690 |
| Number of processors supported | 1 |
| Audio output channels | 7.1 channels |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Killer Wi-Fi 6E AX1690 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 0 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| M.2 card slot (storage) | 2 via PCH + 1 via CPU (NVMe) |
| Number of SATA III connectors | 4 |
| Thunderbolt 4 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 5.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | Yes |
| Product type | PC barebone |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 337 mm |
| Depth | 318 mm |
| Height | 129 mm |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
