NUC 13 RNUC13ANKI70000UI UCFF Black i7-1360P
Model RNUC13ANKI70000UIPart no. 90AR0031-M000C0EAN 197105502284
61 specifications
- ProcessorIntel® Core™ i7
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC barebone
- OSNo
- Weight502 g
Overview
- Processor
- Intel® Core™ i7
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC barebone
- OS
- No
- Weight
- 502 g
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- RNUC13ANKI70000UI
- Part number
- 90AR0031-M000C0
- EAN / UPC
- 197105502284, 4711387502280
- Also known as
- ASUS NUC 13 RNUC13ANKI70000UI UCFF Black i7-1360P
Specifications
61 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor model | i7-1360P |
| Processor cores | 12 |
| Processor threads | 16 |
| Processor boost frequency | 5 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Processor cache | 18 MB |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2, Serial ATA III |
| NVMe | Yes |
| Number of storage drives supported | 2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Discrete graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Motherboard form factor | UCFF |
| Number of processors supported | 1 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |

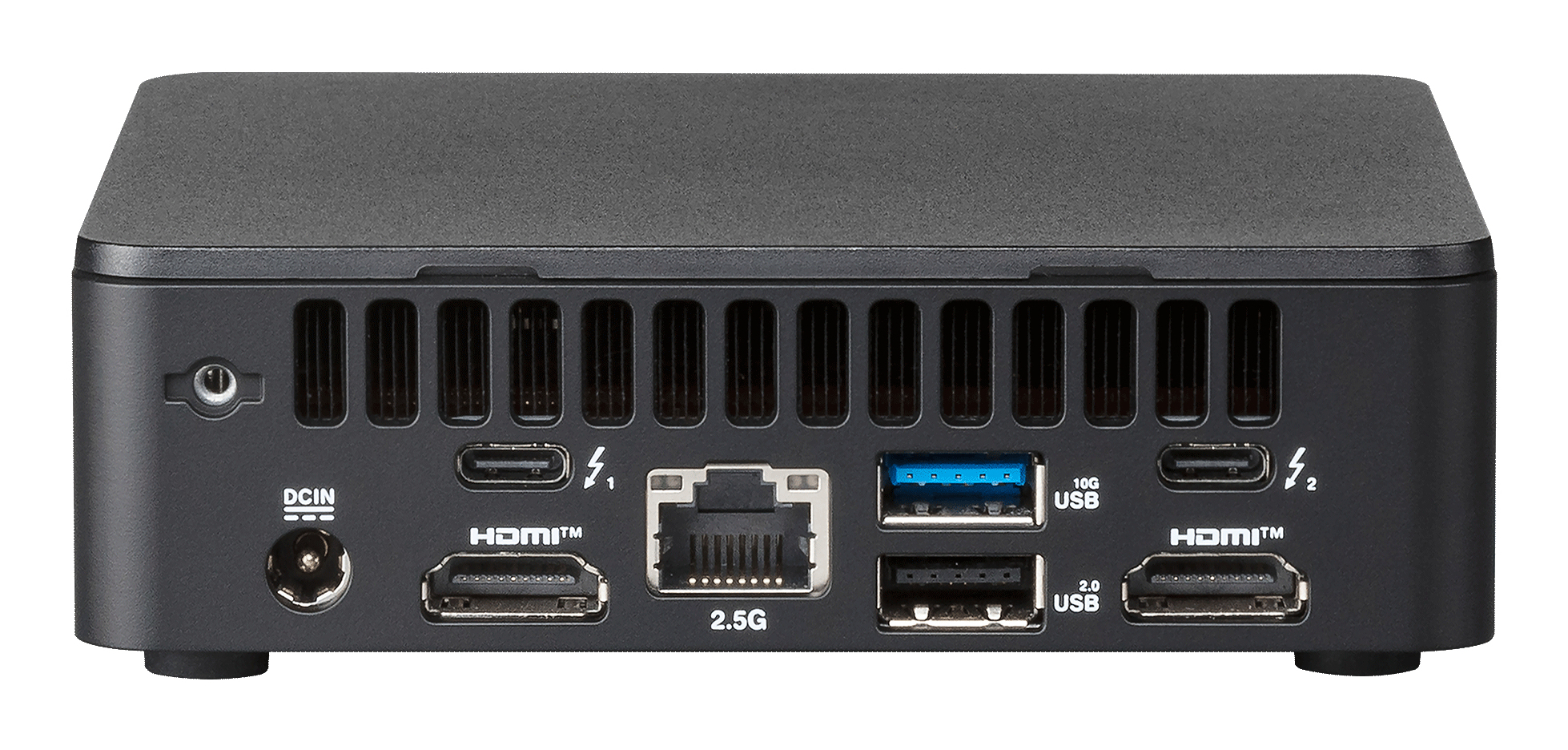

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 4.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | UCFF |
| Product colour | Black |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 120 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 117 mm |
| Depth | 112 mm |
| Height | 37 mm |
| Weight | 502 g |
