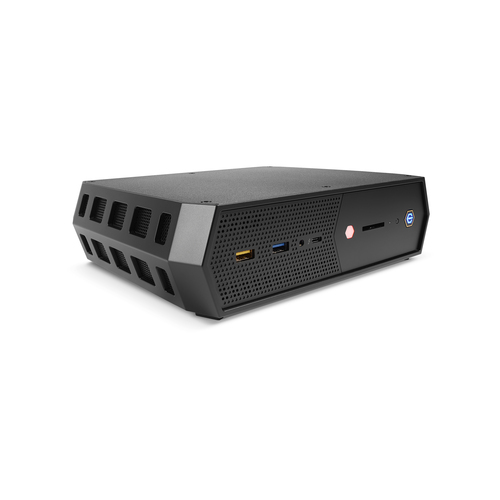

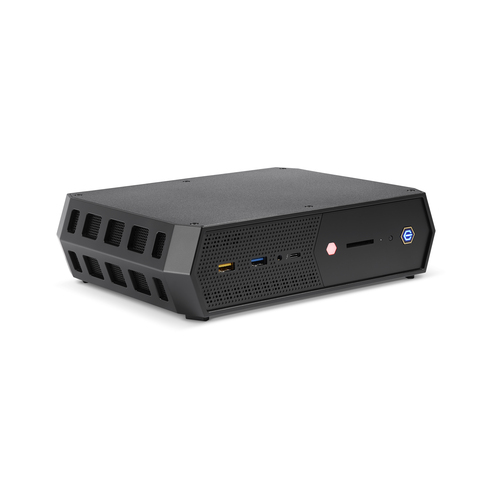

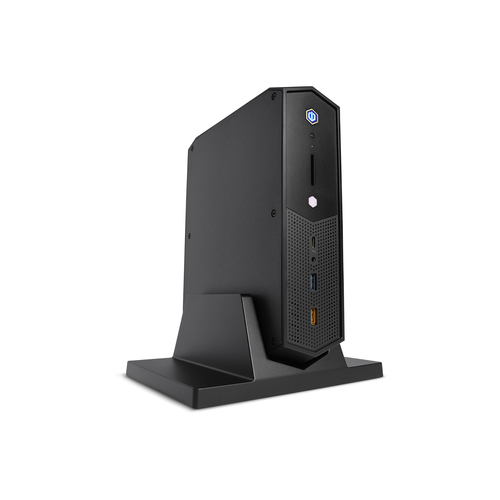

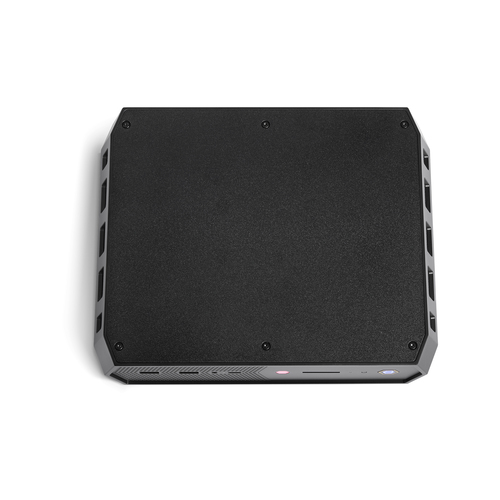

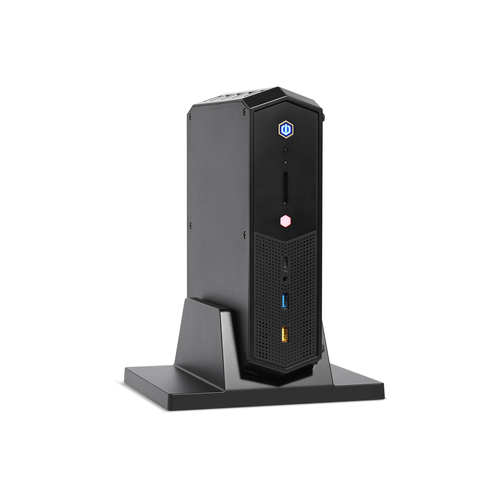

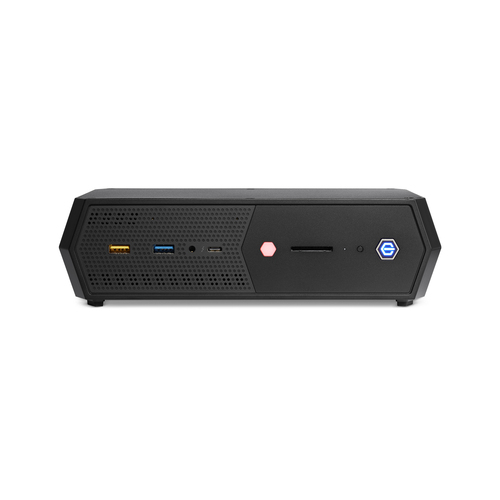

ASUS RNUC12SNKI72001 SFF Black i7-12700H
ASUS

RNUC12SNKI72001 SFF Black i7-12700H

Model RNUC12SNKI72001Part no. 90AB2SNK-MRA110EAN 5032037239660

91 specifications
  • ProcessorIntel® Core™ i7
  • GraphicsIntel Arc A770M
  • SpeedWi-Fi 6E (802.11ax)
  • TypeMini PC barebone
  • ColourBlack
  • Built-in processorYes
See all specifications

Overview

Processor
Intel® Core™ i7
Graphics
Intel Arc A770M
Speed
Wi-Fi 6E (802.11ax)
Type
Mini PC barebone
Colour
Black
Built-in processor
Yes
Brand
ASUS
Model
RNUC12SNKI72001
Part number
90AB2SNK-MRA110
EAN / UPC
5032037239660
Also known as
ASUS RNUC12SNKI72001 SFF Black i7-12700H

Specifications

91 specifications in 14 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation12th gen Intel® Core™ i7
Processor modeli7-12700H
Processor boost frequency4.7 GHz
Processor cache24 MB

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory bandwidth (max)51.2 GB/s
Memory channelsDual-channel
Memory voltage1.2 V
Removable memory card slotSD Express PCIe G3 NVMe UHS-I
Supported memory clock speeds3200 MHz
Supported memory typesDDR4-SDRAM
ECCNo

Storage

Supported storage drive typesSSD
Storage drive sizes supportedM.2
SSD form factorM.2
Storage drive interfacePCI Express, Serial ATA III
NVMeYes
Number of storage drives supported3
Card reader integratedYes
Compatible memory cardsSD

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel Iris Xe Graphics
Discrete graphics card modelIntel Arc A770M
Graphics card memory typeGDDR6
Maximum resolution5120 x 2880 pixels
Number of displays supported4

Performance

Number of processors supported1
Trusted Platform Module (TPM)No
Audio output channels7.1 channels
Consumer infrared Rx sensorYes
Commodity Classification Automated Tracking System (CCATS)G157815L2
Export Control Classification Number (ECCN)5A992C

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standardsWi-Fi 6E (802.11ax)
WLAN controller modelKiller Wi-Fi 6E AX1690
BluetoothYes
Bluetooth version5.2
LAN controllerIntel I225-LM

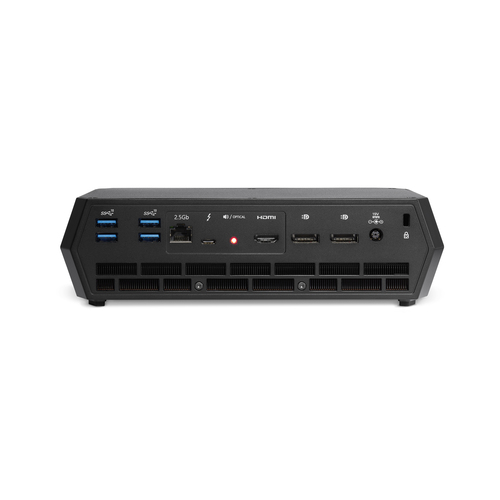

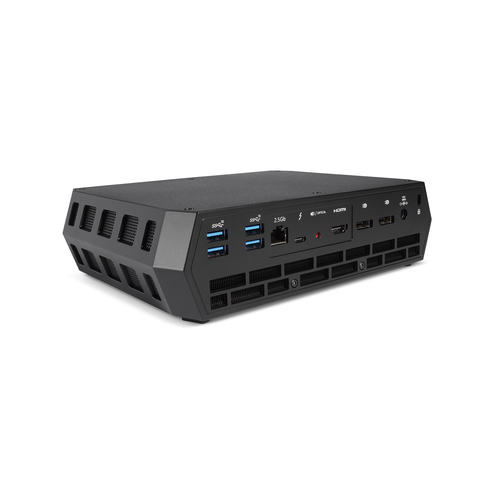

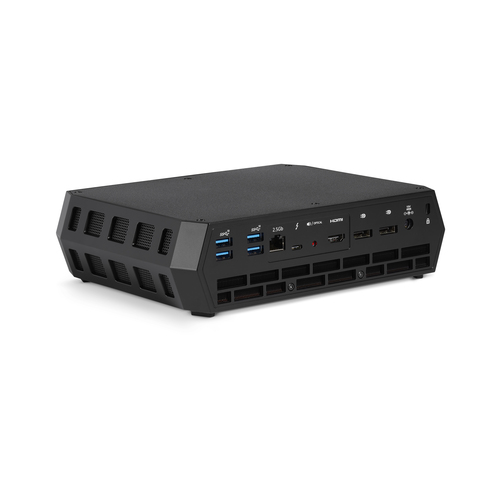

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity6
HDMI ports quantity1
HDMI version2.1
VGA (D-Sub) ports quantity0
DisplayPorts quantity2
DisplayPort version1.4
Combo headphone/mic portYes
Ethernet LAN (RJ-45) ports1
Number of SATA III connectors1
S/PDIF out portYes
Thunderbolt 4 ports quantity2
DC-in jackYes

Expansion slots

PCI Express slots version3.0, 4.0

Design

Chassis typeSFF
Product colourBlack
Cooling typeActive
On/off switchYes
LED indicatorsYes
Housing materialMetal, Plastic
Cable lock slotYes
Cable lock slot typeKensington
Product typeMini PC barebone
ARK ID196170

Processor special features

Intel® vPro™ Platform EligibilityNo
Embedded options availableNo
Execute Disable BitYes
Intel Flex Memory AccessYes
Intel Rapid Storage TechnologyYes
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® High Definition Audio (Intel® HD Audio)Yes
Intel® Optane™ Memory ReadyYes
Intel® Platform Trust Technology (Intel® PTT)Yes

Software

Windows operating systems supportedWindows 11 x64

Power

Power supply typeExternal AC adapter
AC adapter output voltage19.5 V
Number of power supply units1

Weight & dimensions

Width230 mm
Depth180 mm
Height65 mm
