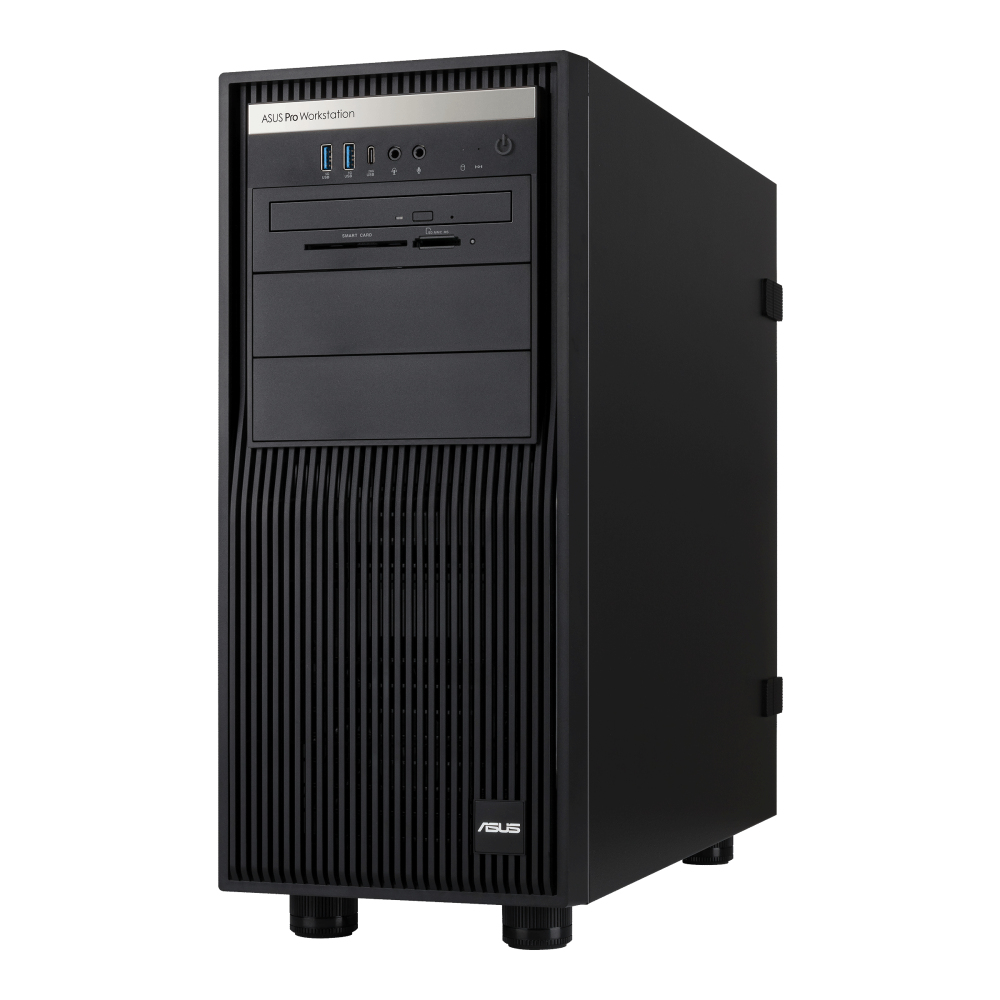

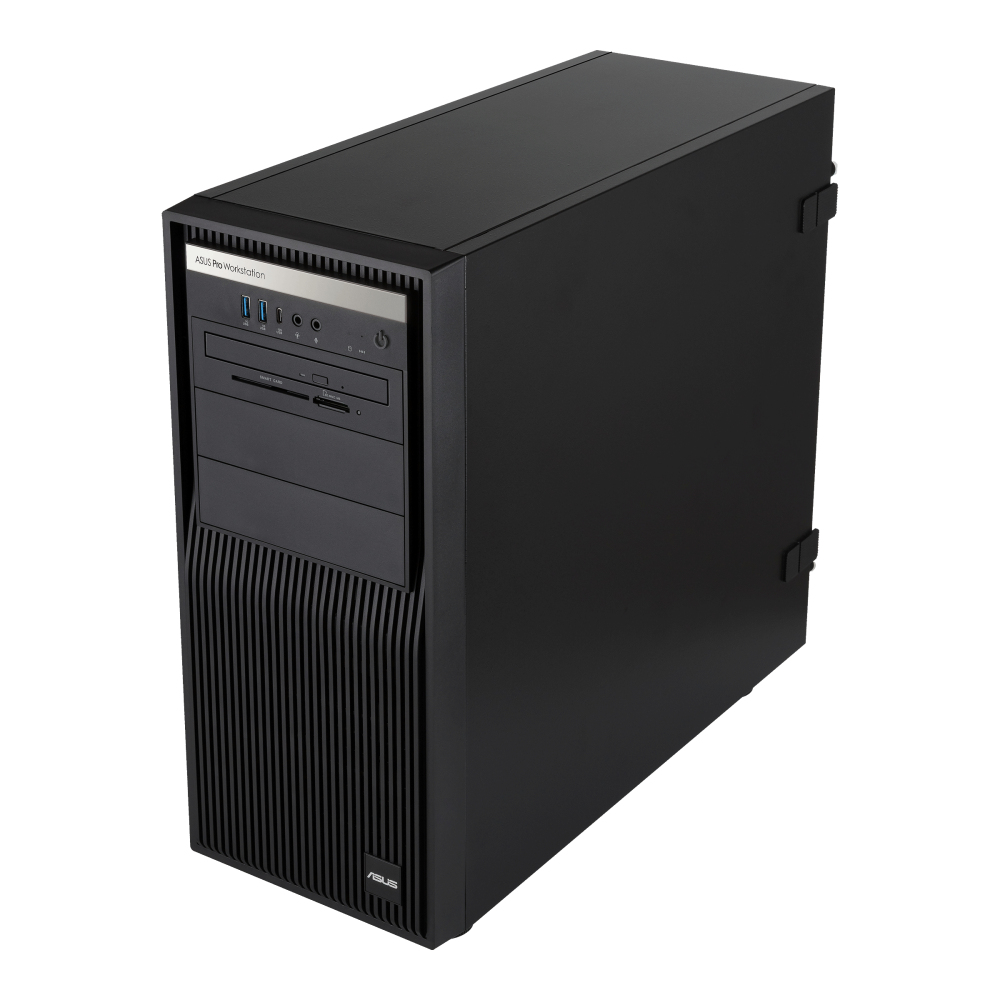

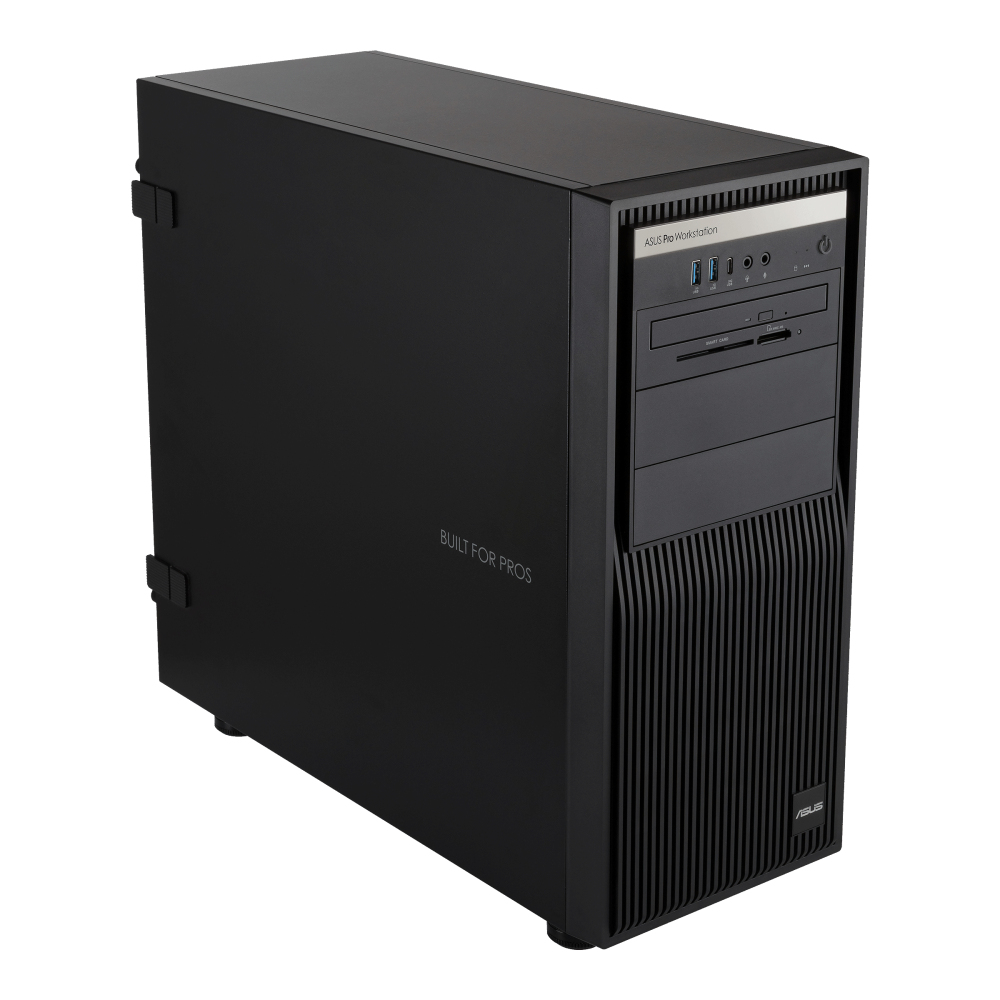

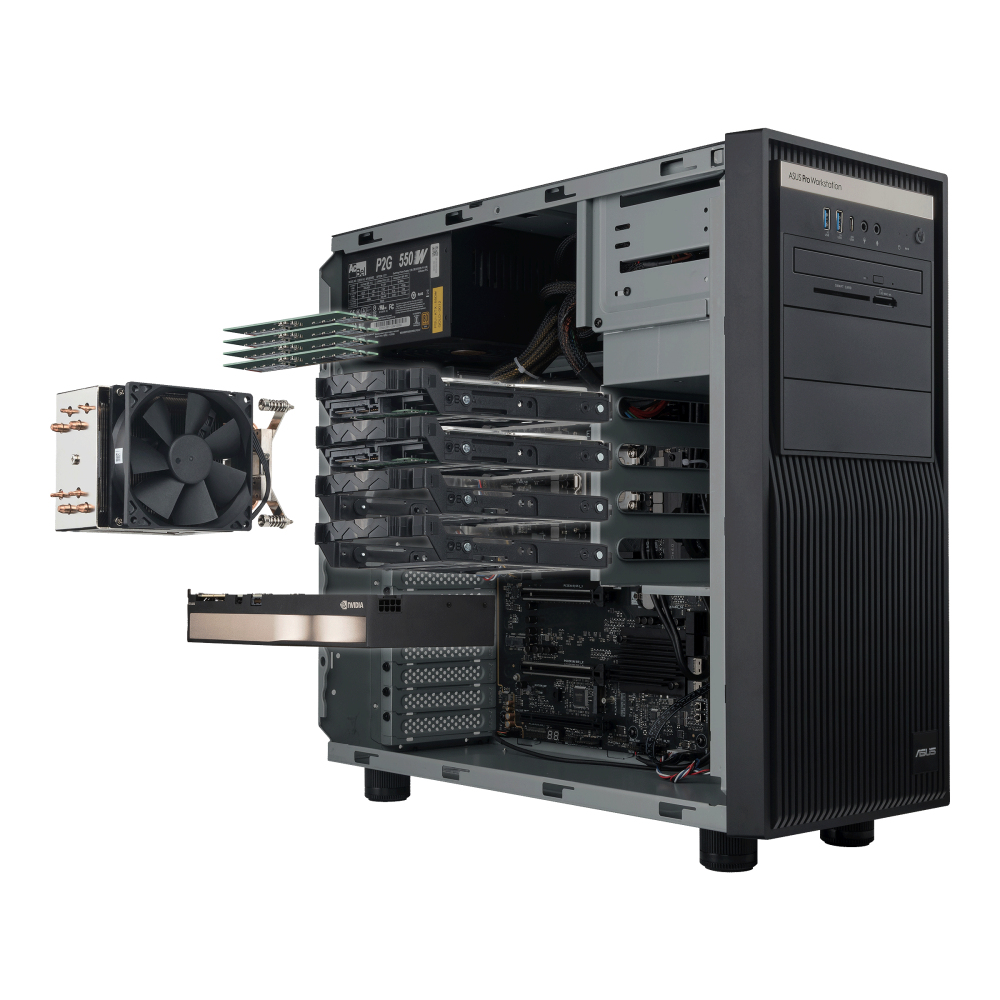

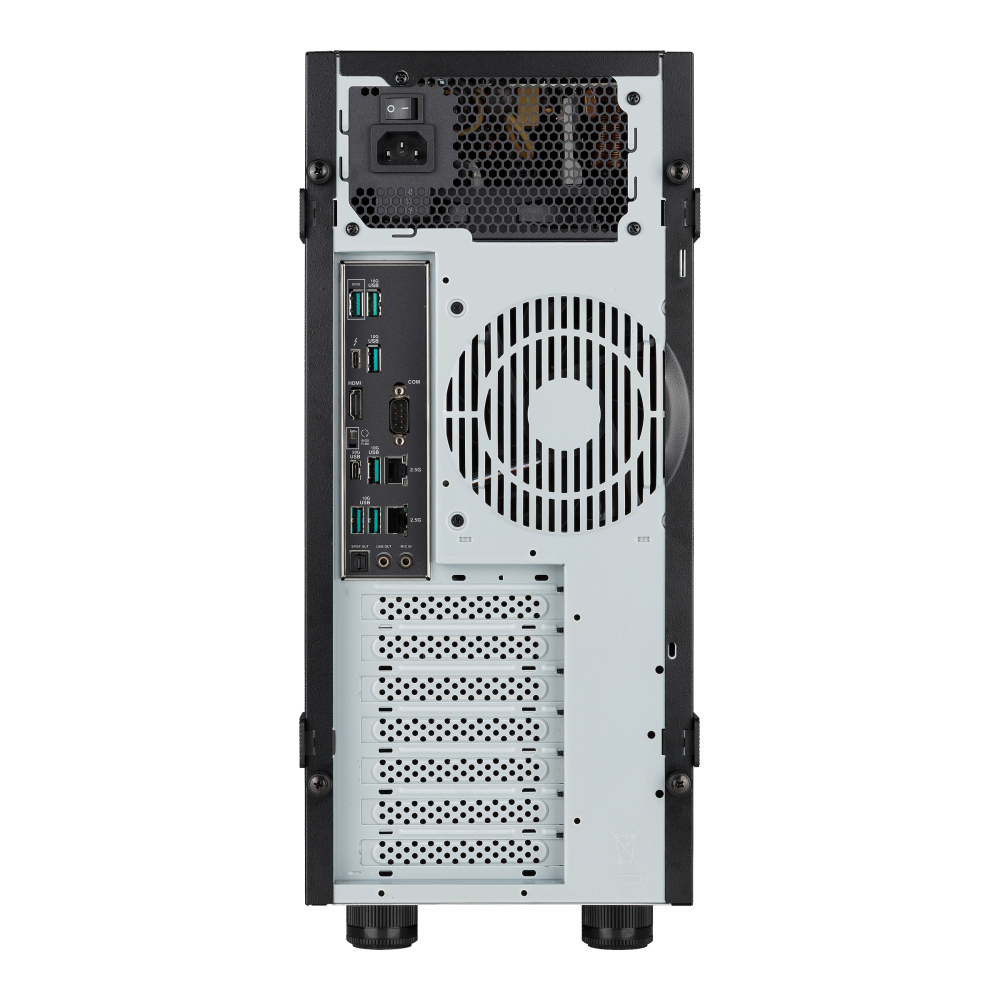

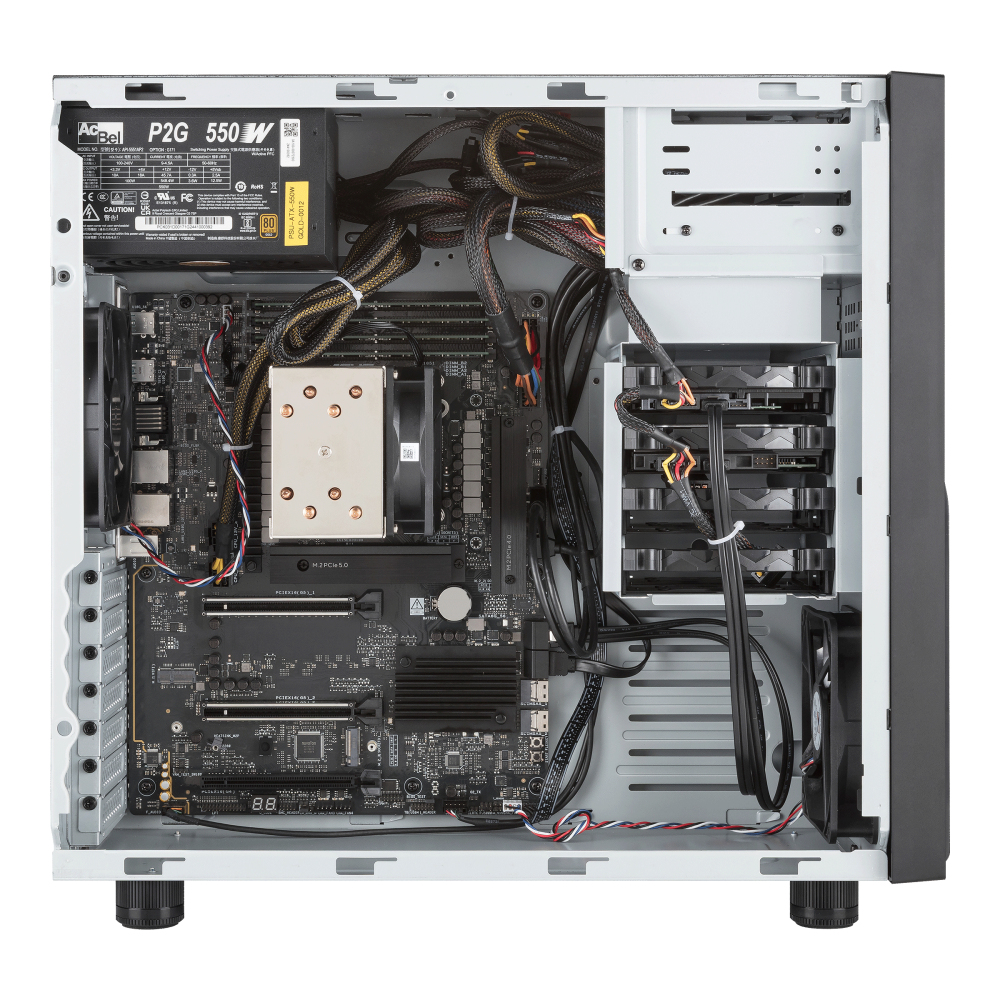

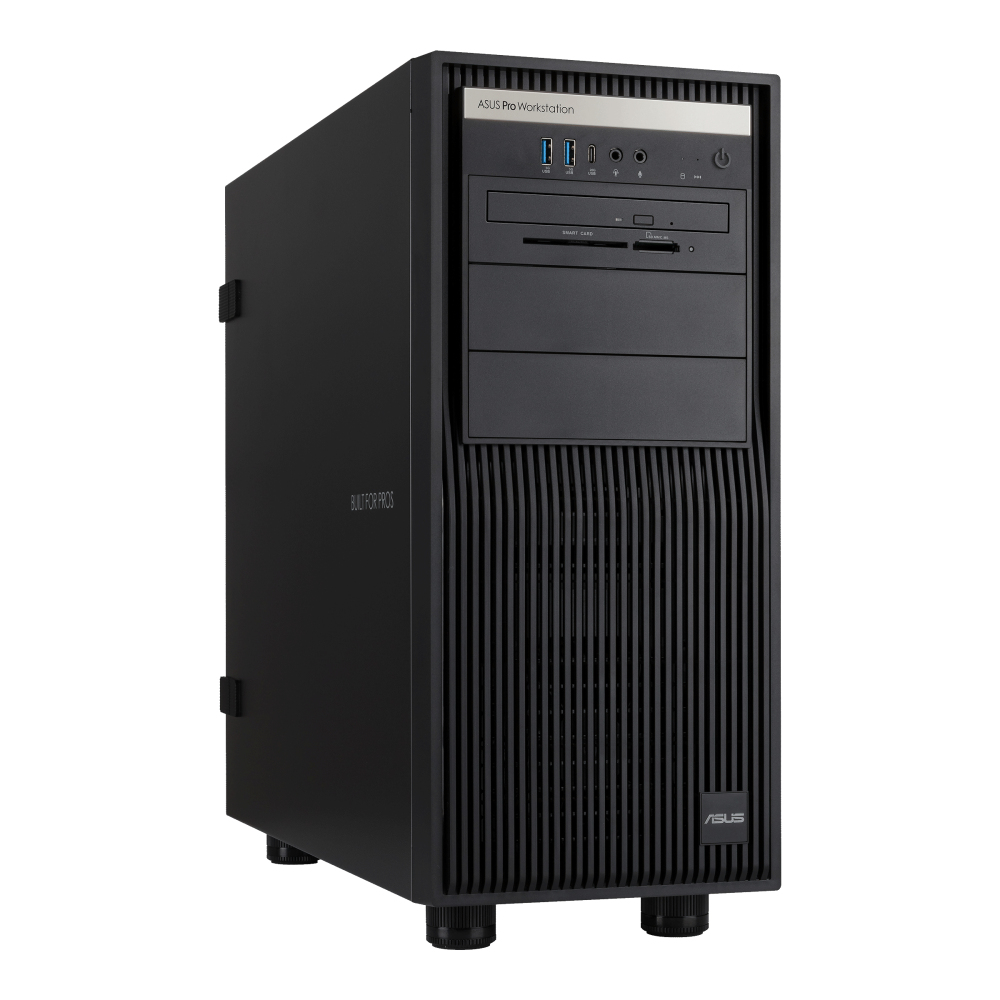

PRO ET500I W8-B-750
Model PRO ET500I W8-B-750Part no. 90WS0041-M00020EAN 4711636094955
55 specifications
- TypeWorkstation barebone
- ColourBlack
- Built-in processorNo
- Motherboard chipsetIntel W880
- Ethernet LANYes
- USB 2.0 ports quantity0
Overview
- Type
- Workstation barebone
- Colour
- Black
- Built-in processor
- No
- Motherboard chipset
- Intel W880
- Ethernet LAN
- Yes
- USB 2.0 ports quantity
- 0
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- PRO ET500I W8-B-750
- Part number
- 90WS0041-M00020
- EAN / UPC
- 4711636094955
- Also known as
- ASUS ExpertCenter PRO ET500I W8-B-750 Desktop Black Intel W880 LGA 1851 (Socket V1)
Specifications
55 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory installed | No |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| ECC | Yes |
| Non-ECC | No |
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | M.2,2.5,3.5 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| SSD form factor | M.2 |
| Storage drive interface | Serial ATA III, M.2, SlimSAS |
| Number of storage drives supported | 9 |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel W880 |
| Processor socket | LGA 1851 (Socket V1) |
| Number of processors supported | 1 |
| Compatible processor series | Intel Core Ultra (Series 2) |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB4 Gen 2x2 ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
| Thunderbolt 4 ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | Power, HDD |
| Product type | Workstation barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 423 mm |
| Height | 435 mm |
