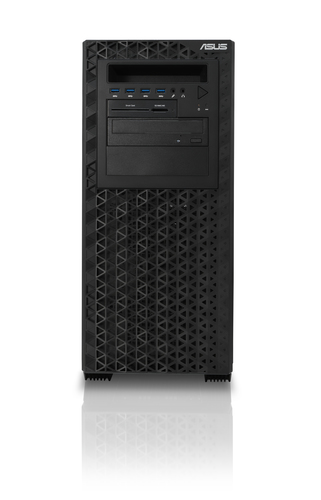

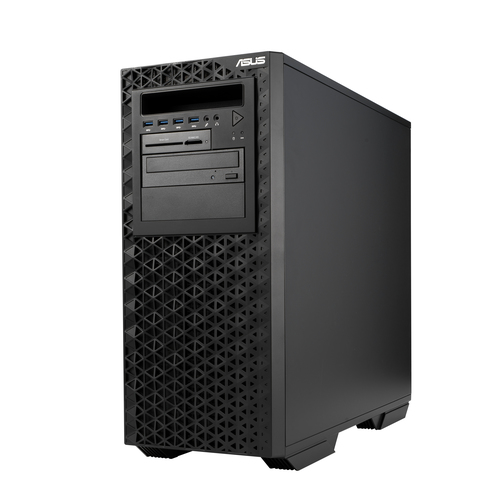

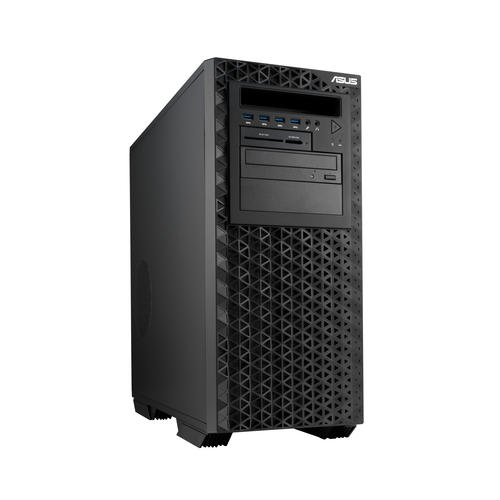

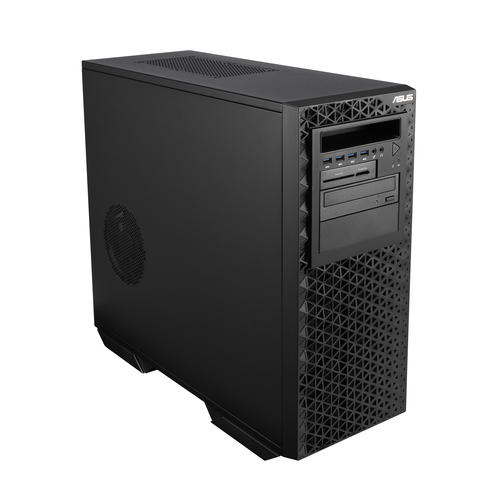

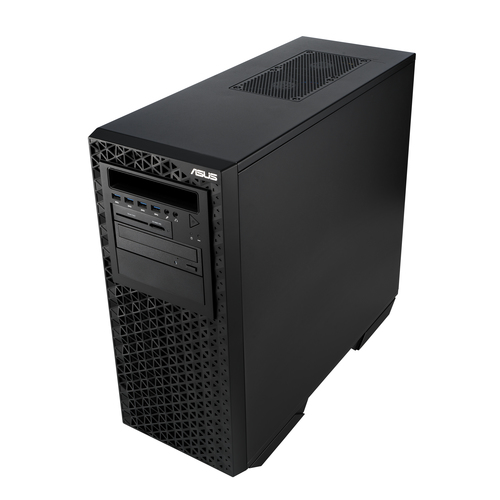

Pro E800 G4
Model Pro E800 G4Part no. 90SF0111-M00540EAN 4718017551991
44 specifications
- ProcessorIntel® Xeon®
- TypeWorkstation barebone
- Weight18 kg
- ColourBlack
- Built-in processorNo
- Memory slots typeDIMM
Overview
- Processor
- Intel® Xeon®
- Type
- Workstation barebone
- Weight
- 18 kg
- Colour
- Black
- Built-in processor
- No
- Memory slots type
- DIMM
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- Pro E800 G4
- Part number
- 90SF0111-M00540
- EAN / UPC
- 4718017551991
- Also known as
- ASUS Pro E800 G4 Black Intel® C621
Specifications
44 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 12 |
| Maximum internal memory | 1.53 TB |
| Supported memory clock speeds | 2666,2933 MHz |
| Supported memory types | DDR4-SDRAM |

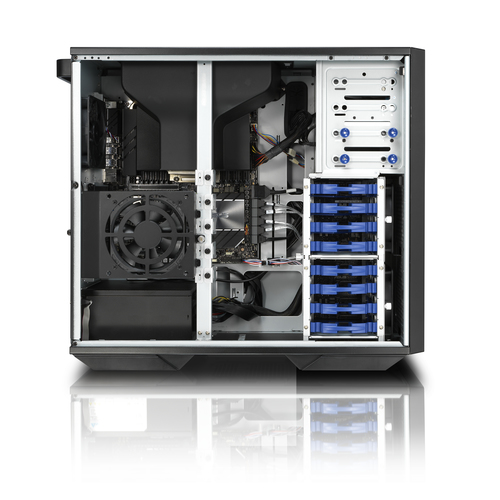

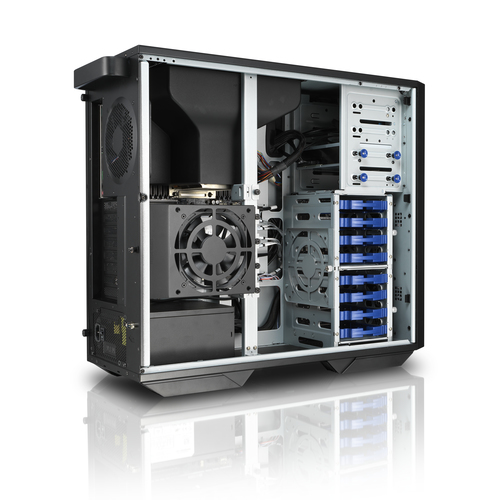

Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,3.5,5.25" |
| Storage drive interface | M.2, Serial ATA III |
| Number of storage drives supported | 9 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® C621 |
| Audio output channels | 7.1 channels |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® X550-AT2 |

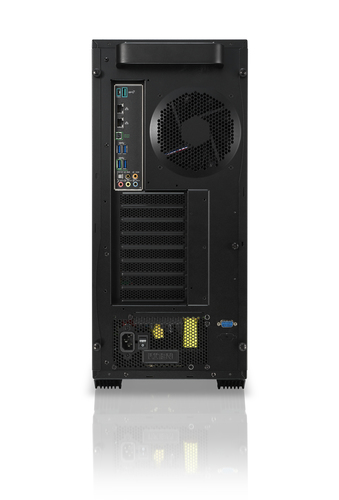

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 0 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| S/PDIF out port | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD, Power, Reset |
| Product type | Workstation barebone |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI, CE, FCC(Class A) |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 532 mm |
| Depth | 243 mm |
| Height | 582 mm |
| Weight | 18 kg |
| Package weight | 22.5 kg |
