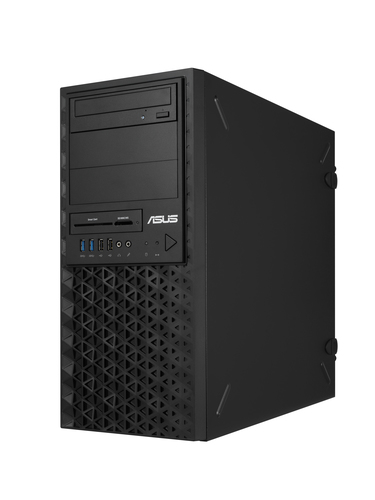

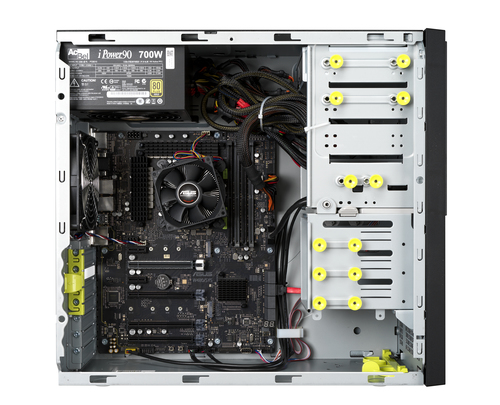

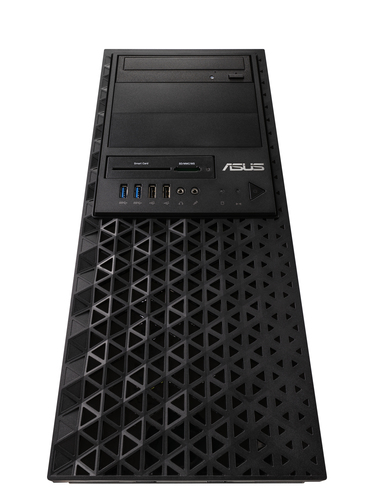

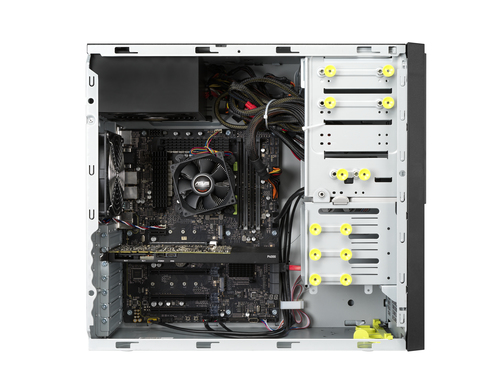

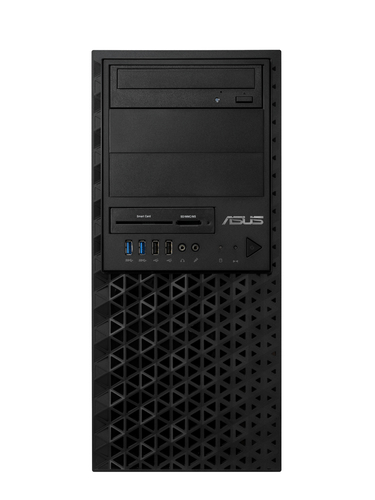

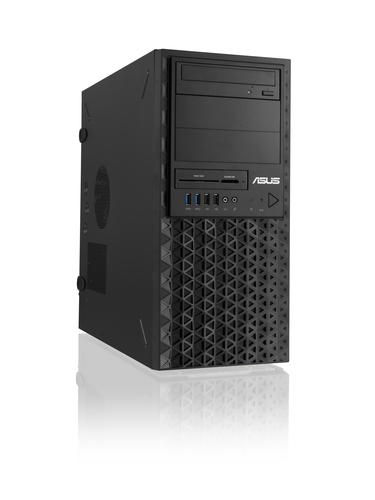

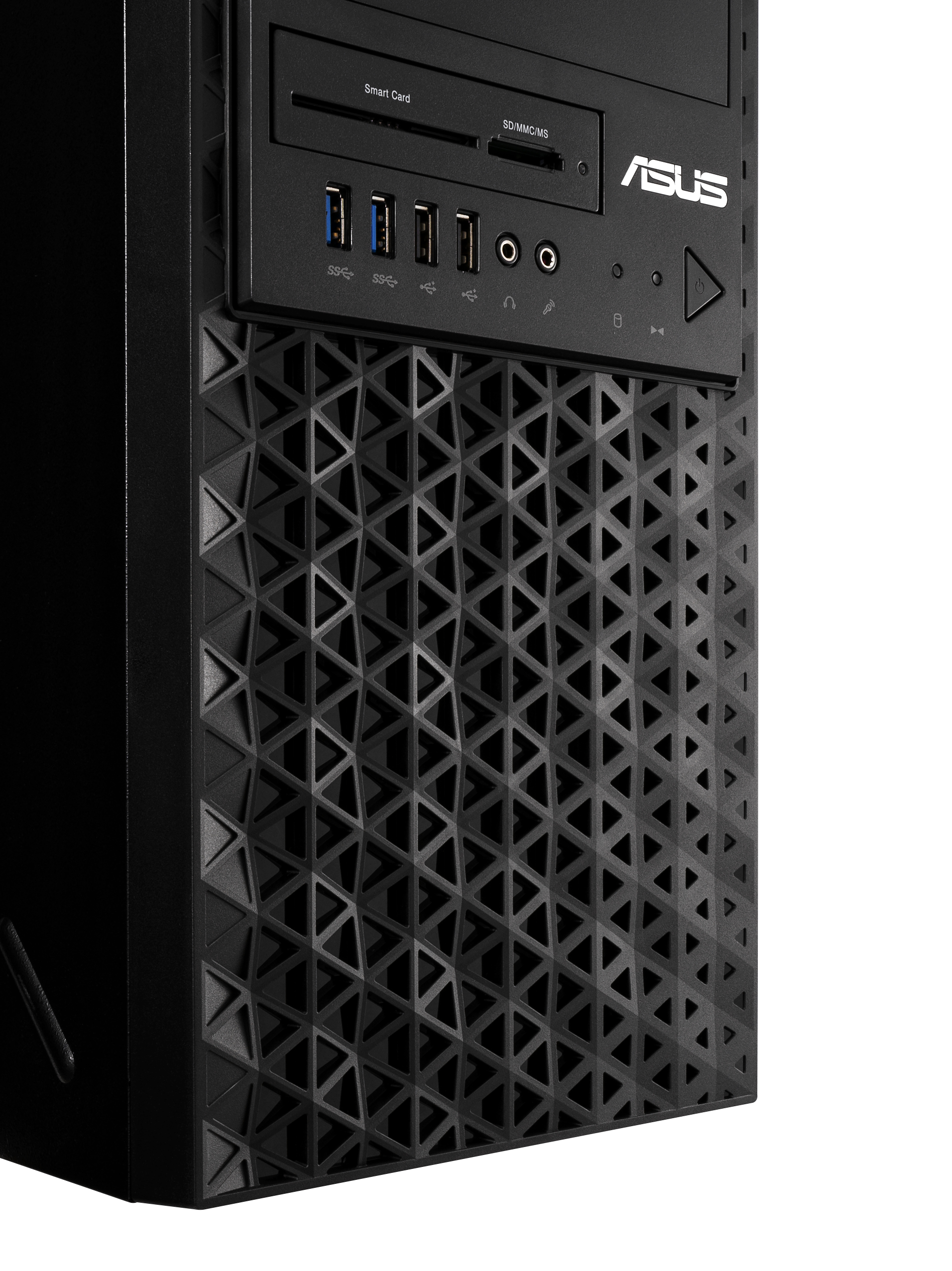

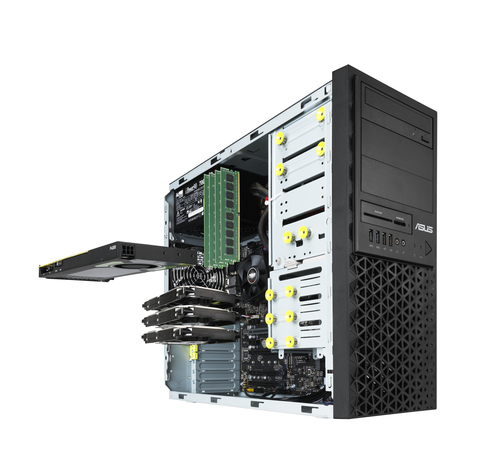

PRO E500 G6
Model PRO E500 G6Part no. 90SF0181-M00380EAN 4718017799744
45 specifications
- TypeWorkstation barebone
- Weight9.9 kg
- ColourBlack
- Built-in processorNo
- Memory slots typeDIMM
- Supported storage drive typesHDD & SSD
Overview
- Type
- Workstation barebone
- Weight
- 9.9 kg
- Colour
- Black
- Built-in processor
- No
- Memory slots type
- DIMM
- Supported storage drive types
- HDD & SSD
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- PRO E500 G6
- Part numbers
- 90SF0181-M00380, 90SF0181-M02700
- EAN / UPC
- 4718017799744, 4718017982207
- Also known as
- ASUS PRO E500 G6 Full-Tower Black Intel W480 LGA 1200 (Socket H5)
Specifications
45 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2666,2933 MHz |
| ECC | Yes |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 3.5,M.2 |
| SSD form factor | M.2 |
| Storage drive interface | Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel W480 |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Xeon W |
Display
| Specification | Value |
|---|---|
| Touchscreen | No |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I219-LM, Intel I225-LM |

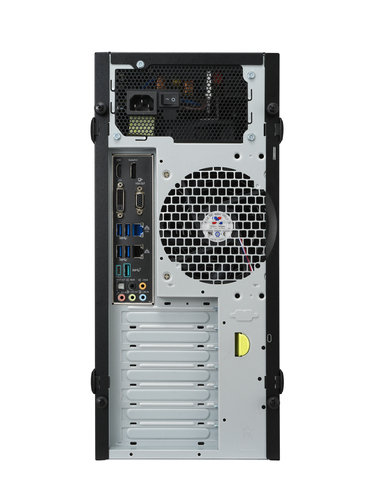

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 4 |
Design
| Specification | Value |
|---|---|
| Chassis type | Full-Tower |
| Product colour | Black |
| Product type | Workstation barebone |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 423 mm |
| Depth | 190 mm |
| Height | 435 mm |
| Weight | 9.9 kg |
| Package weight | 12.1 kg |
