PN64-BB5013MD Mini PC Black i5-12500H
Model PN64-BB5013MDPart no. 90MR00U2-M000D0EAN 195553833981
65 specifications
- ProcessorIntel® Core™ i5
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC barebone
- OSNo
- Weight1 kg
Overview
- Processor
- Intel® Core™ i5
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC barebone
- OS
- No
- Weight
- 1 kg
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- PN64-BB5013MD
- Part number
- 90MR00U2-M000D0
- EAN / UPC
- 195553833981, 4711081833987
- Also known as
- ASUS PN64-BB5013MD Mini PC Black i5-12500H
Specifications
65 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model | i5-12500H |
| Processor cores | 12 |
| Processor boost frequency | 4.5 GHz |
| Processor cache | 18 MB |
| CPU configuration (max) | 1 |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 4800 MHz |
| Supported memory types | GDDR5 |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | M.2 |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Audio chip | Realtek ALC897 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| LAN controller | Intel WGI225V |

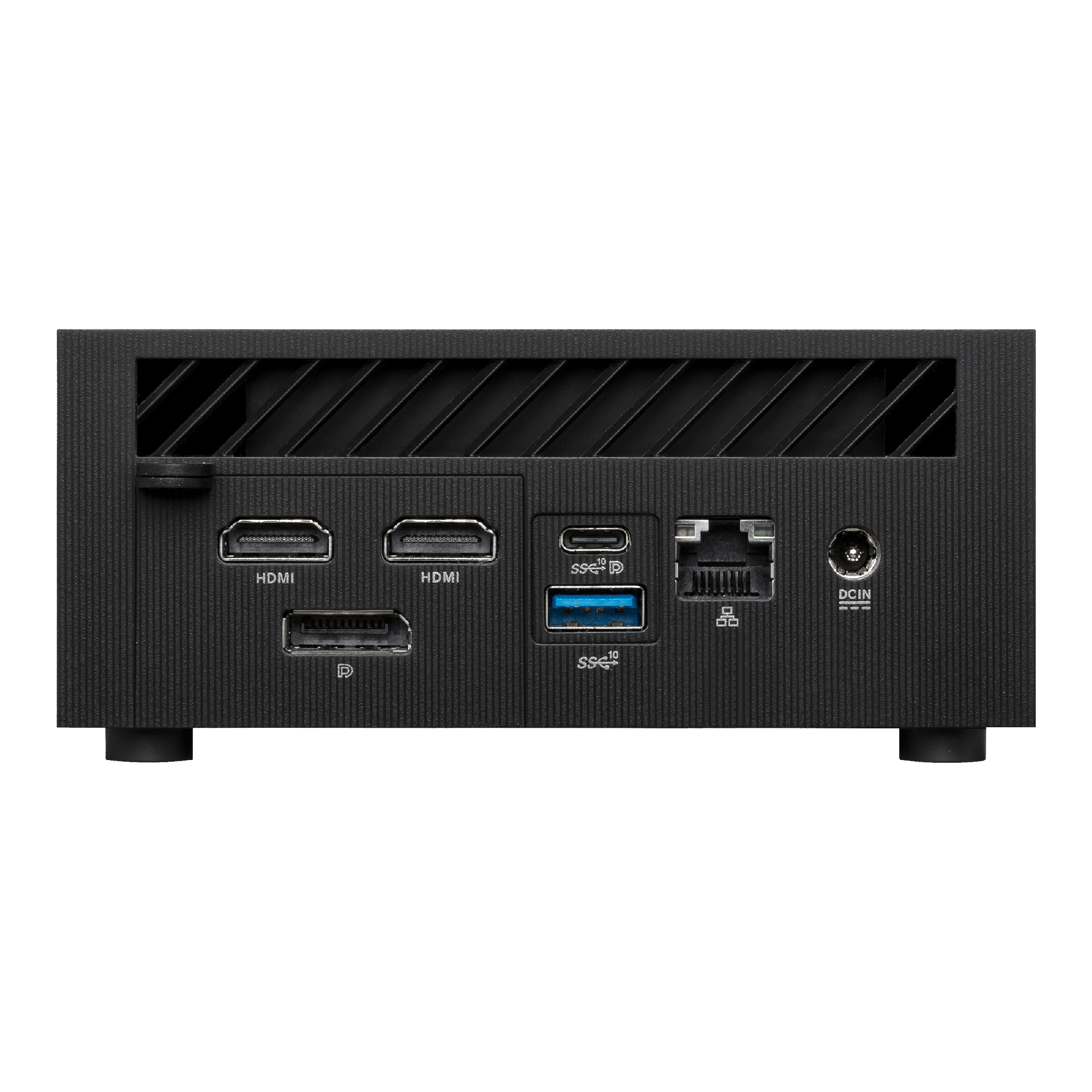

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 130 mm |
| Height | 58 mm |
| Weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Display included | No |
