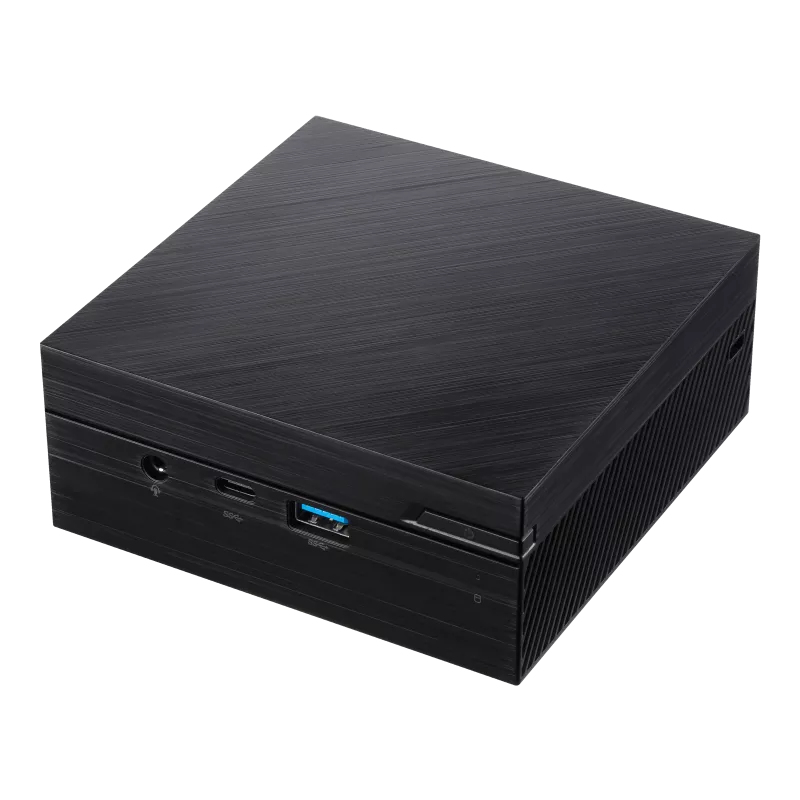

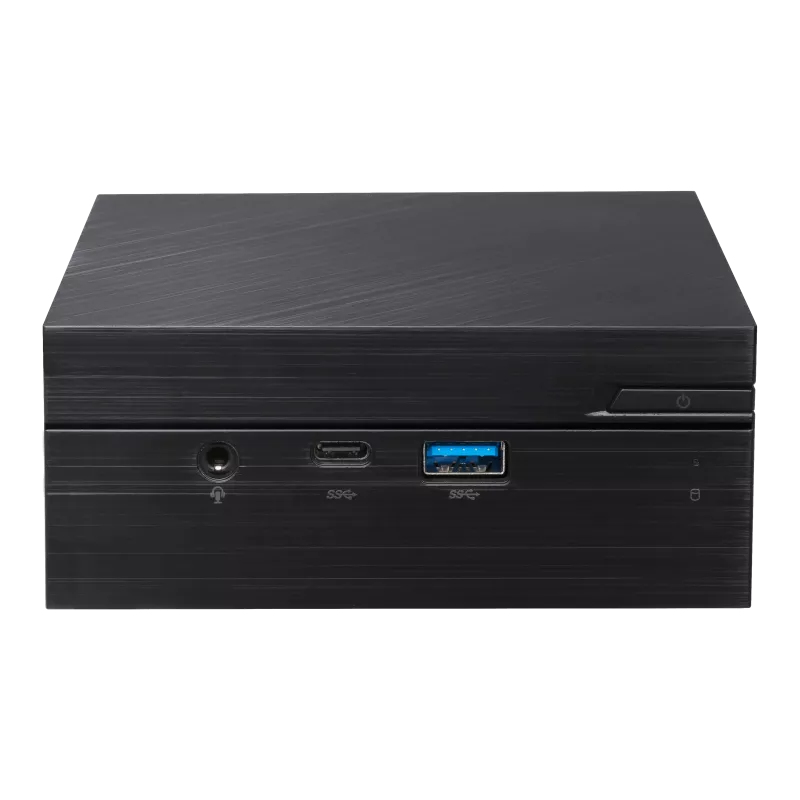

PN51-S1-BB Mini PC Black 5500U
2.1 GHz
Model PN51-S1-BBPart no. 90MR00K1-M004V0EAN 4711387239568
49 specifications
- ProcessorAMD Ryzen™ 5
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC
- OSNo
- Weight550 g
Overview
- Processor
- AMD Ryzen™ 5
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC
- OS
- No
- Weight
- 550 g
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- PN51-S1-BB
- Part number
- 90MR00K1-M004V0
- EAN / UPC
- 4711387239568
- Also known as
- ASUS PN51-S1-BB Mini PC Black 5500U 2.1 GHz
Specifications
49 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Processor model | 5500U |
| Processor cores | 6 |
| Processor frequency | 2.1 GHz |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | AMD Radeon Graphics |
| Discrete graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Optical drive type | No |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
| Power supply | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 86 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 115 mm |
| Height | 49 mm |
| Weight | 550 g |
Packaging content
| Specification | Value |
|---|---|
| Display included | No |
