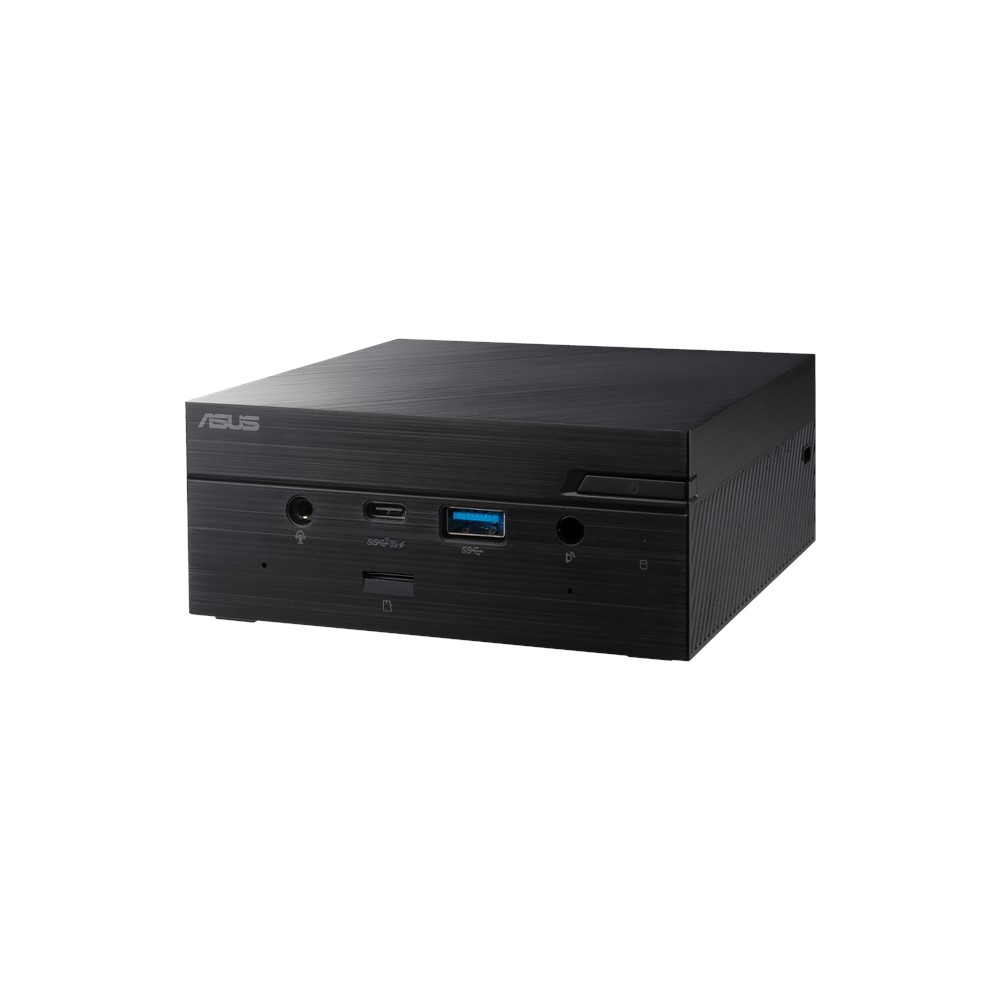

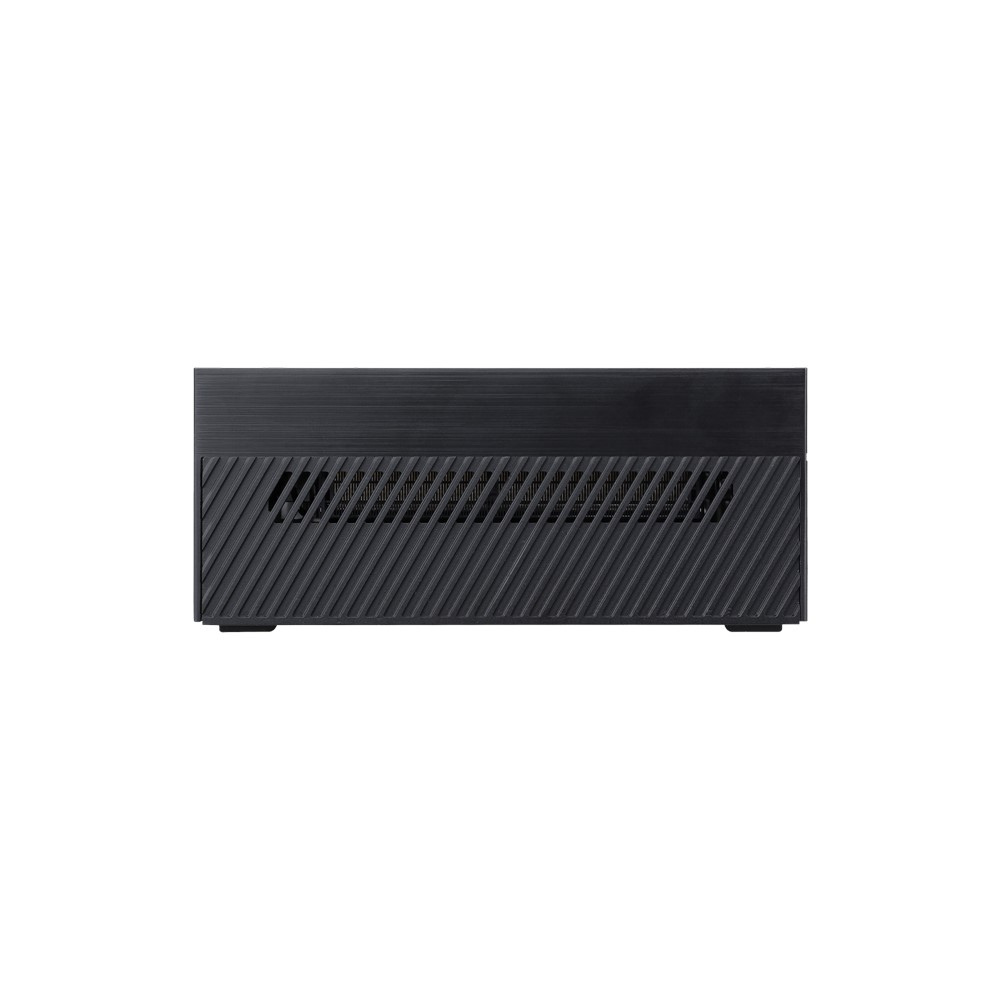

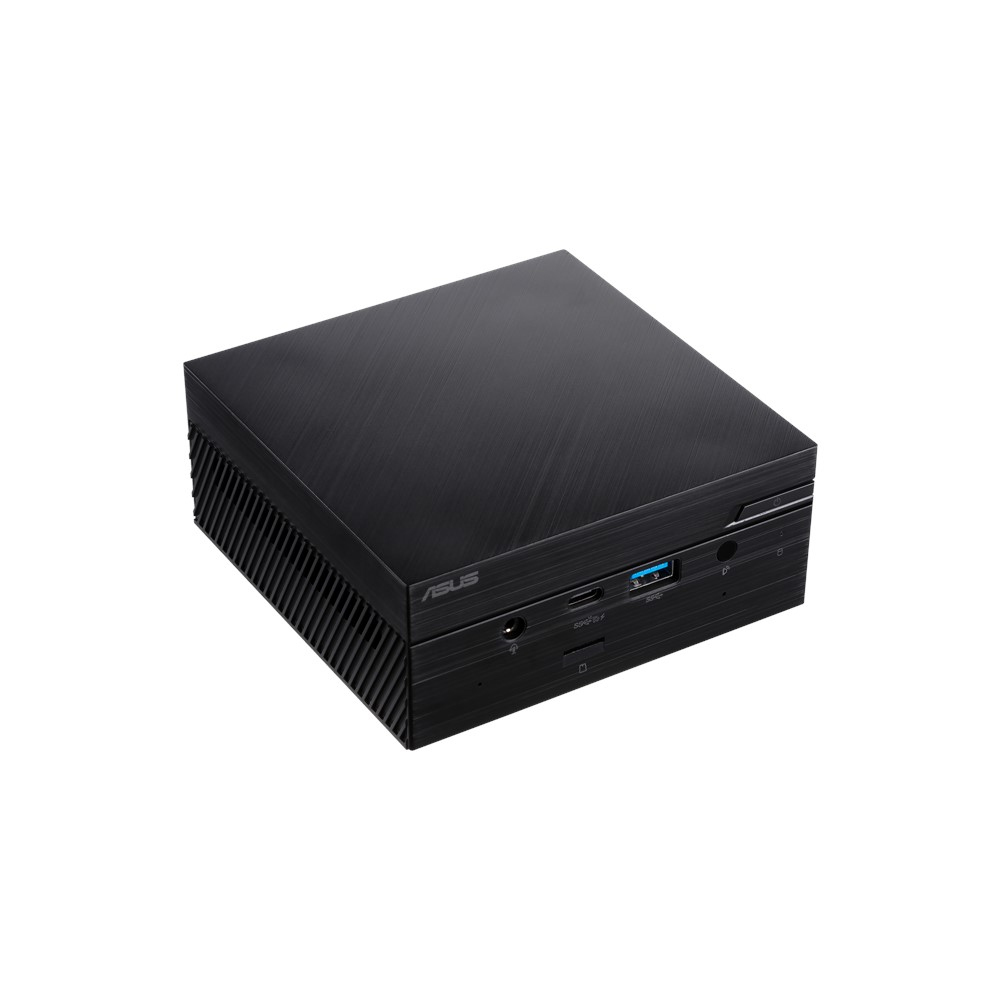

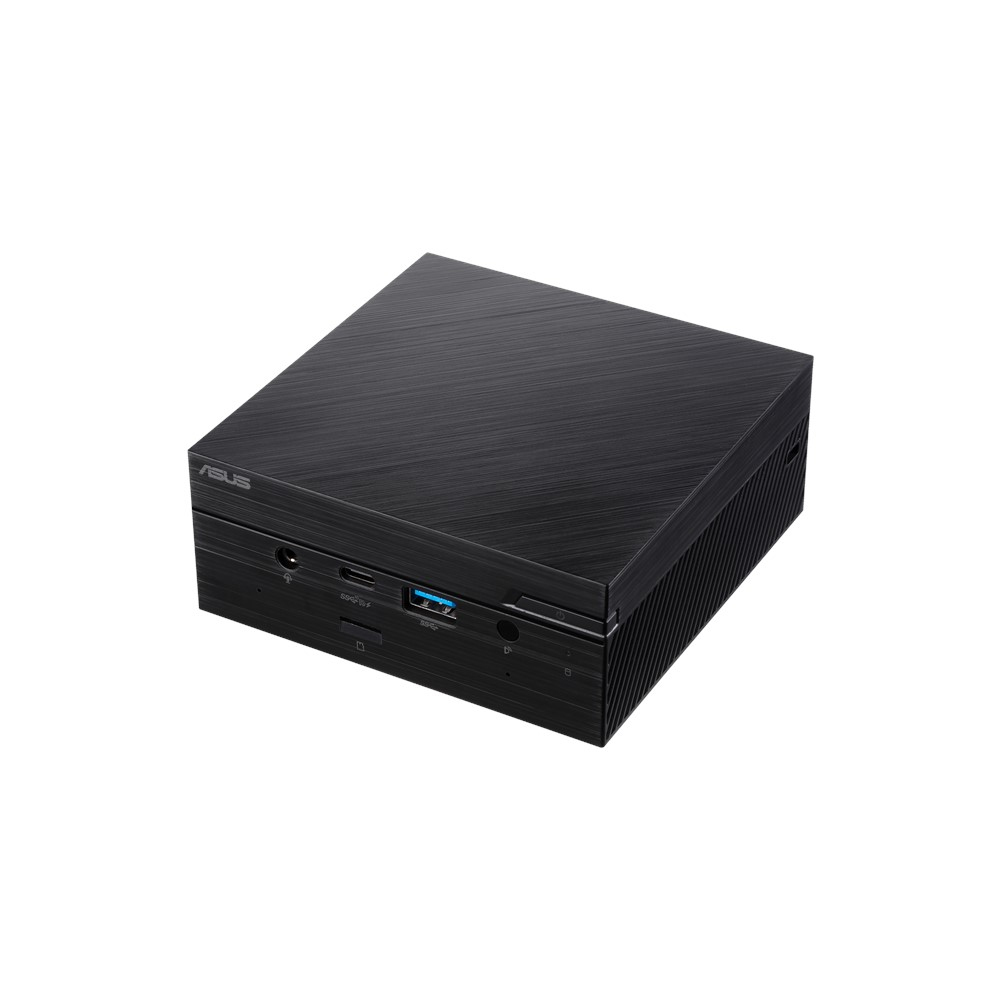

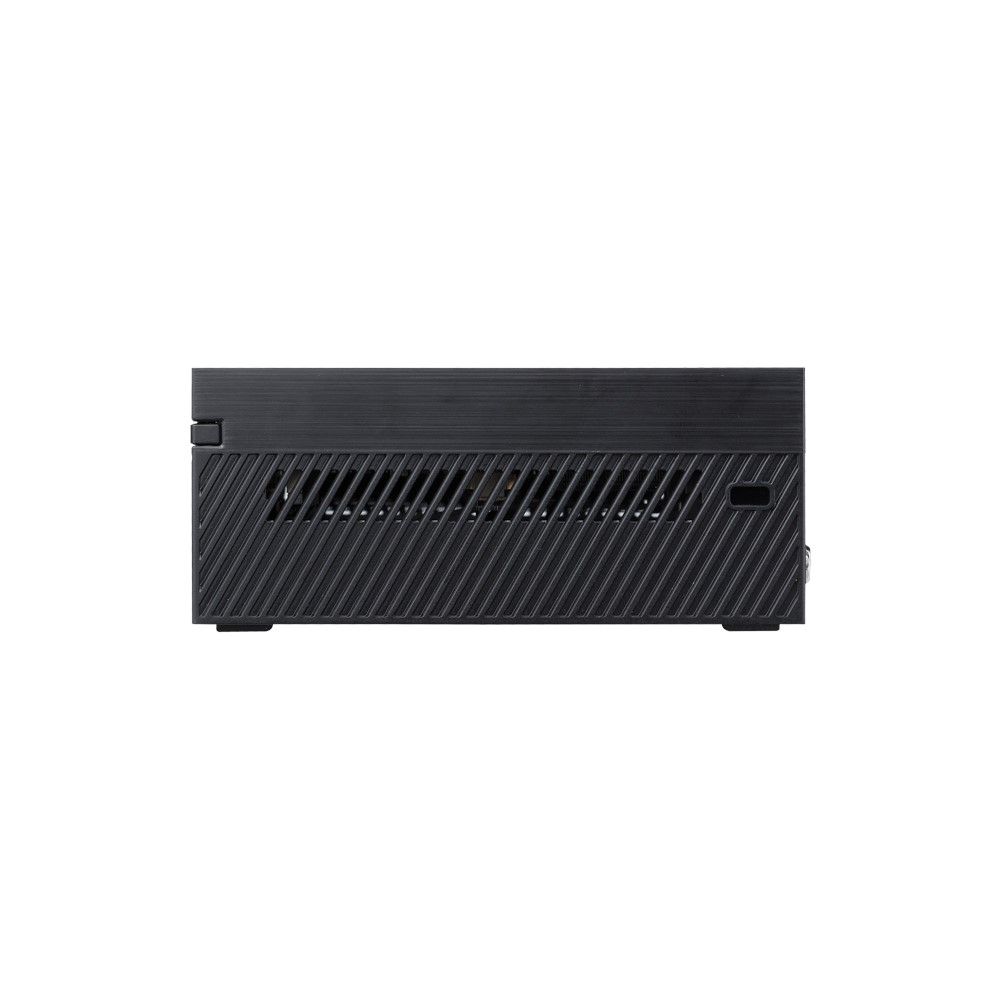

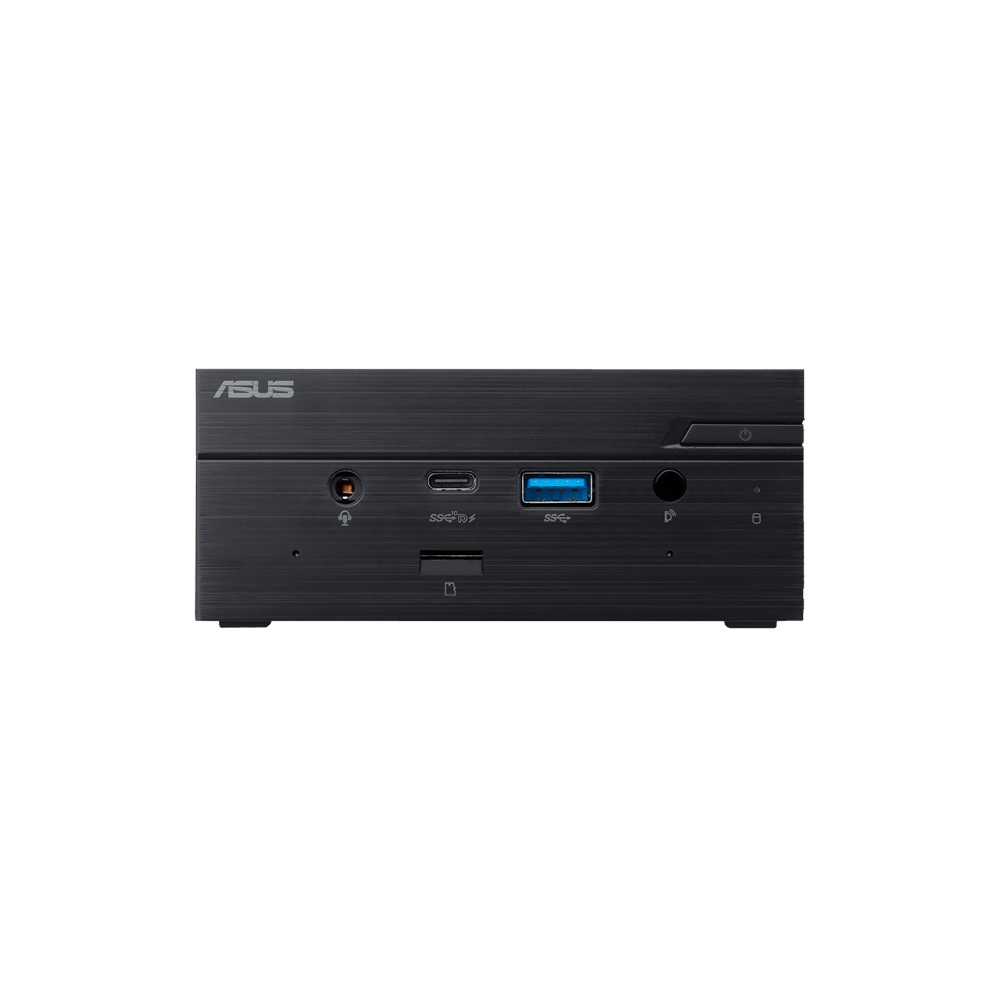

PN50E1-R7BAREBONE PC/workstation barebone Mini PC Black 4700U
2 GHz
Model PN50E1-R7BAREBONE
54 specifications
- ProcessorAMD Ryzen™ 7
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC barebone
- Weight700 g
- ColourBlack
Overview
- Processor
- AMD Ryzen™ 7
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC barebone
- Weight
- 700 g
- Colour
- Black
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- PN50E1-R7BAREBONE
- Part number
- PN50E1-R7BAREBONE
- Also known as
- ASUS PN50E1-R7BAREBONE PC/workstation barebone Mini PC Black 4700U 2 GHz
Specifications
54 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor model | 4700U |
| Processor cores | 8 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 2 GHz |
| Processor cache | 8 MB |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory types | DDR4-SDRAM |

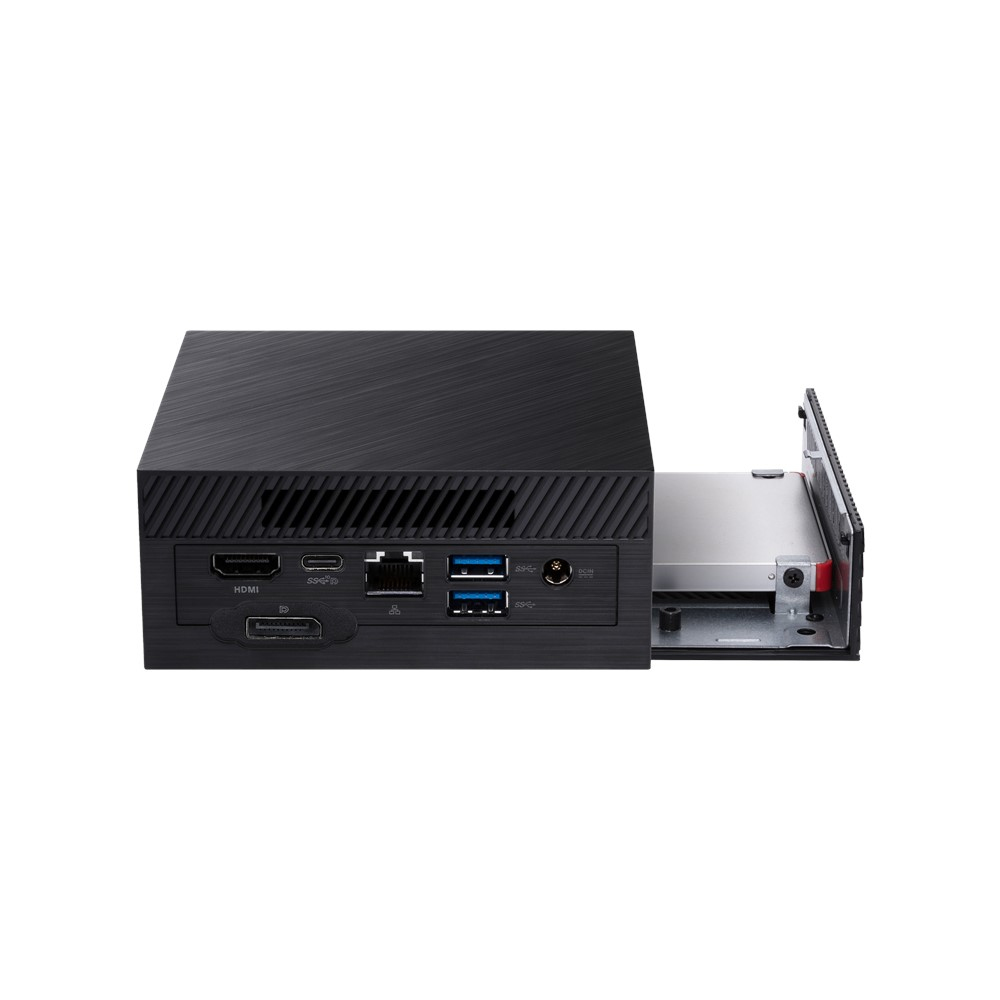

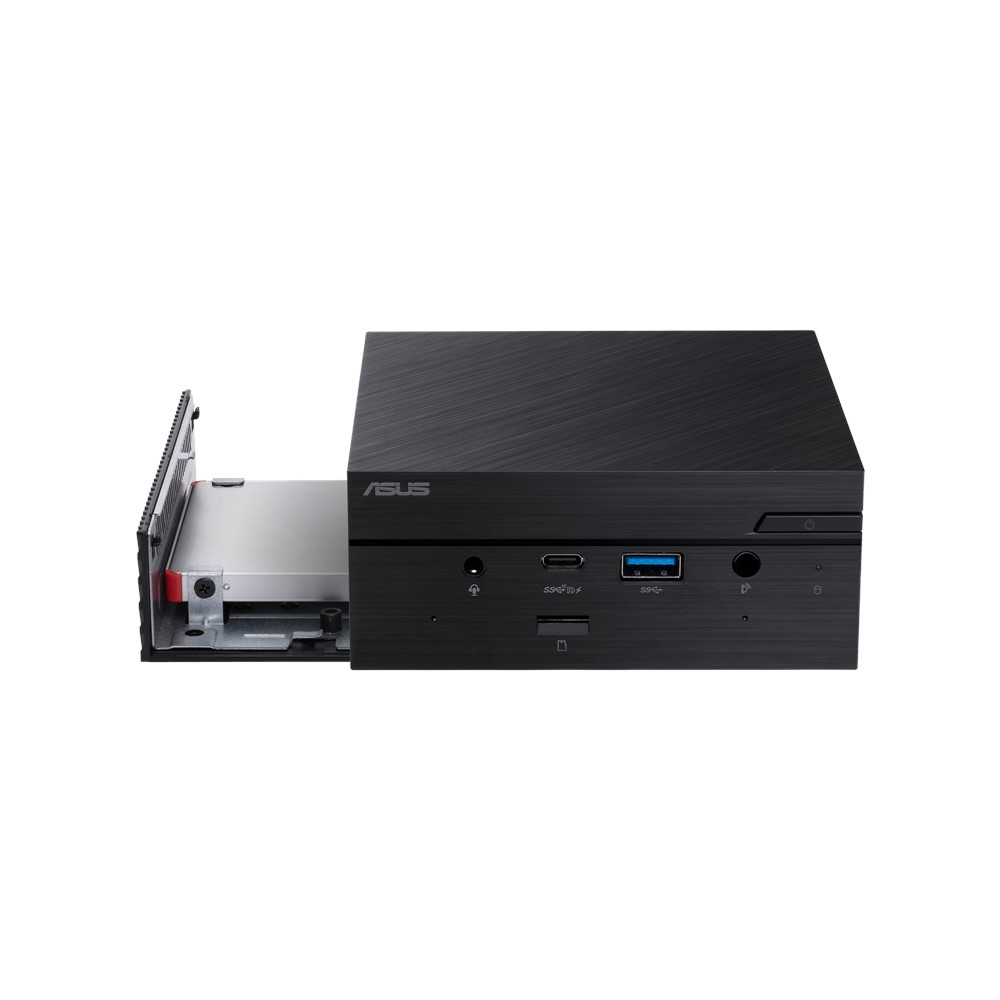

Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | AMD Radeon Graphics |
| Discrete graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Optical drive type | No |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

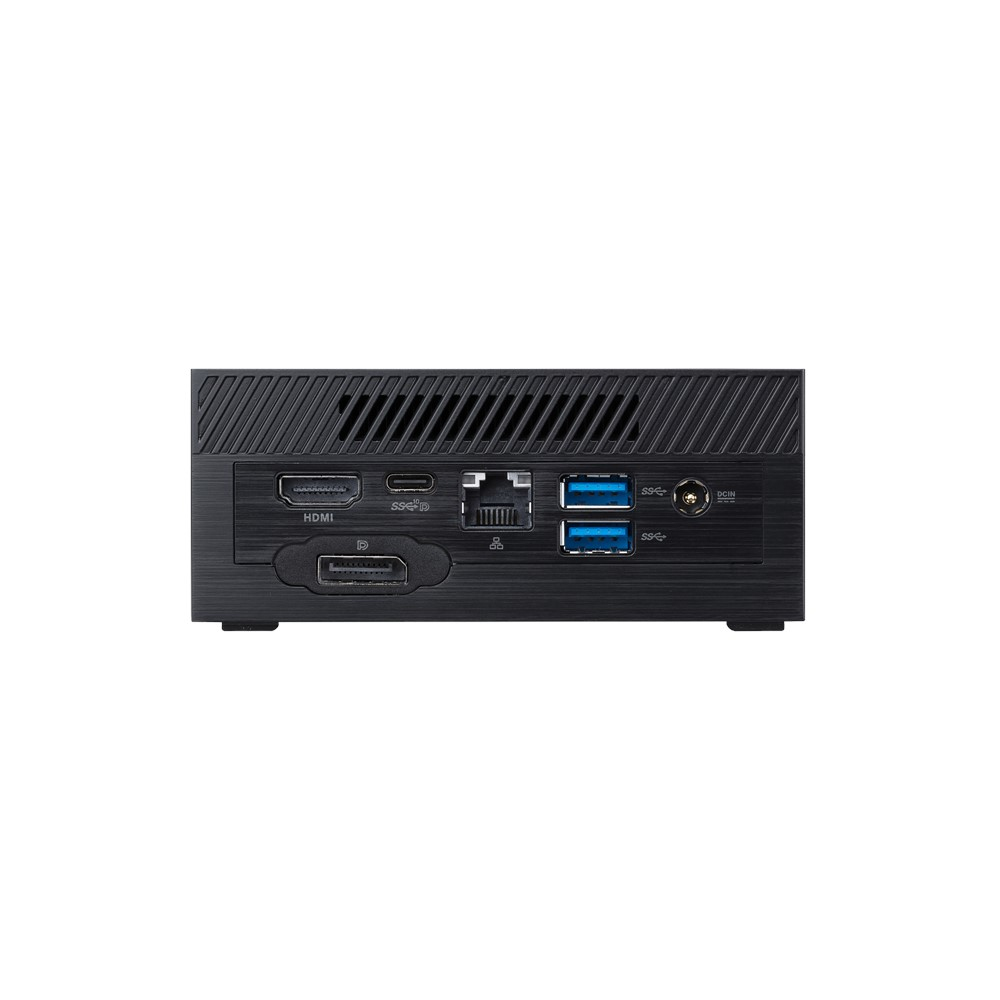

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Black |
| Cooling type | Passive |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 115 mm |
| Height | 49 mm |
| Weight | 700 g |
Packaging content
| Specification | Value |
|---|---|
| Display included | No |
