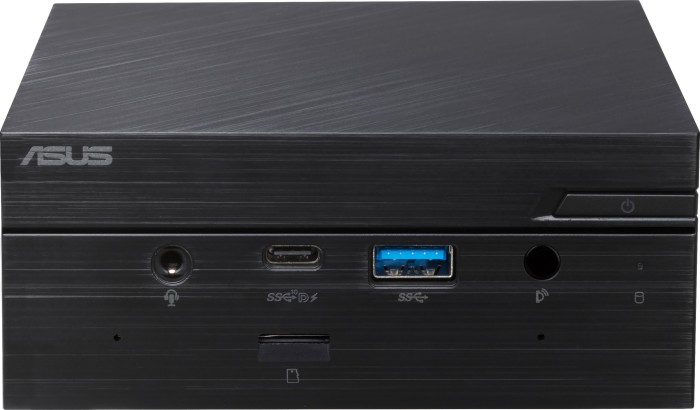

PN50-BBR748M SFF Black 4800U
1.8 GHz
Model PN50-BBR748MPart no. 90MR00E1-M00180EAN 4718017788700
55 specifications
- ProcessorAMD Ryzen™ 7
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC barebone
- Weight700 g
- ColourBlack
- Processor manufacturerAMD
Overview
- Processor
- AMD Ryzen™ 7
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC barebone
- Weight
- 700 g
- Colour
- Black
- Processor manufacturer
- AMD
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- PN50-BBR748M
- Part number
- 90MR00E1-M00180
- EAN / UPC
- 4718017788700
- Also known as
- ASUS PN50-BBR748M SFF Black 4800U 1.8 GHz
Specifications
55 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | 3rd Generation AMD Ryzen™ 7 |
| Processor model | 4800U |
| Processor cores | 6 |
| Processor threads | 16 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 1.8 GHz |
| Processor lithography | 7 nm |
| L2 cache | 4 MB |
| L3 cache | 8 MB |
| Thermal Design Power (TDP) | 15 W |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express |
| Number of storage drives supported | 2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | AMD |
Display
| Specification | Value |
|---|---|
| Touchscreen | No |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Product colour | Black |
| On/off switch | Yes |
| Product type | Mini PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 4.74 A |
| AC adapter output voltage | 19 V |
| Number of power supply units | 1 |
| Power supply | 90 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 115 mm |
| Height | 49 mm |
| Weight | 700 g |
