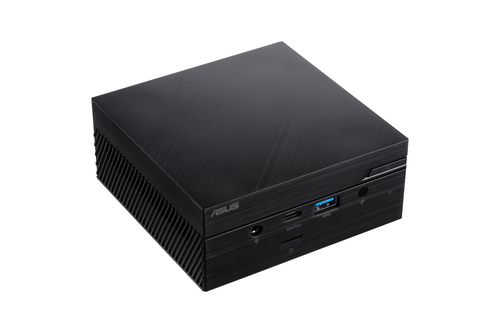

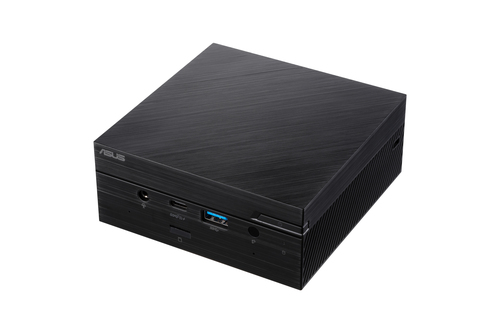

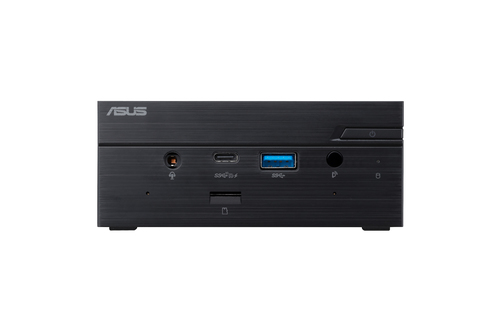

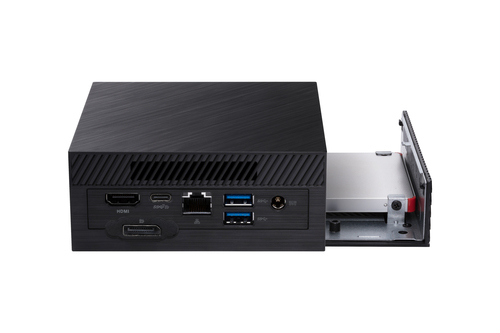

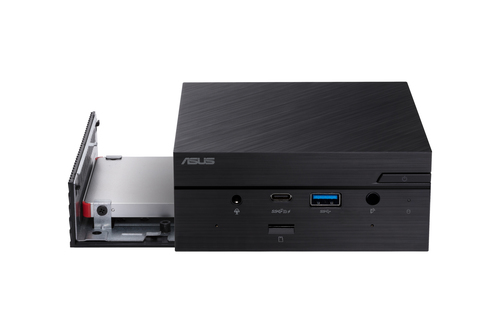

PN50-BB3000AFD12 Mini PC Black 4300U
2.7 GHz
Model PN50-BB3000AFD12Part no. 90MR00E5-M000D0
57 specifications
- ProcessorAMD Ryzen™ 3
- Memory8 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
- Weight700 g
Overview
- Processor
- AMD Ryzen™ 3
- Memory
- 8 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Weight
- 700 g
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- PN50-BB3000AFD12
- Part number
- 90MR00E5-M000D0
- Also known as
- ASUS PN50-BB3000AFD12 Mini PC Black 4300U 2.7 GHz
Specifications
57 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 3 |
| Processor model | 4300U |
| Processor cores | 4 |
| Processor boost frequency | 3.7 GHz |
| Processor frequency | 2.7 GHz |
| Processor cache | 4 MB |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | AMD |
| On-board graphics card model | AMD Radeon Graphics |
| Discrete graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Optical drive type | No |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 115 mm |
| Height | 49 mm |
| Weight | 700 g |
Packaging content
| Specification | Value |
|---|---|
| Display included | No |
