PN50 Black 4800U
1.8 GHz
Model PN50Part no. 90MR00E1-M01070EAN 4711081172673
39 specifications
- ProcessorAMD Ryzen™ 7
- TypeMini PC barebone
- Weight700 g
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- AMD Ryzen™ 7
- Type
- Mini PC barebone
- Weight
- 700 g
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- PN50
- Part numbers
- 90MR00E1-M01070, 90MR00E1-M01080, 90MR00E1-M01090, 90MR00E1-M01100, PN50E1-R74800BAREBONENOA, PN50E1-R3BAREBONENOA +1 more
- EAN / UPC
- 4711081172673, 4711081172666, 4711081172581, 4711081172598
- Also known as
- ASUS PN50 Black 4800U 1.8 GHz
Specifications
39 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor model | 4800U |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 1.8 GHz |
| L2 cache | 4 MB |
| L3 cache | 8 MB |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | M.2 |
| Number of storage drives supported | 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | AMD |
| On-board graphics card model | AMD Radeon Graphics |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Bluetooth | Yes |

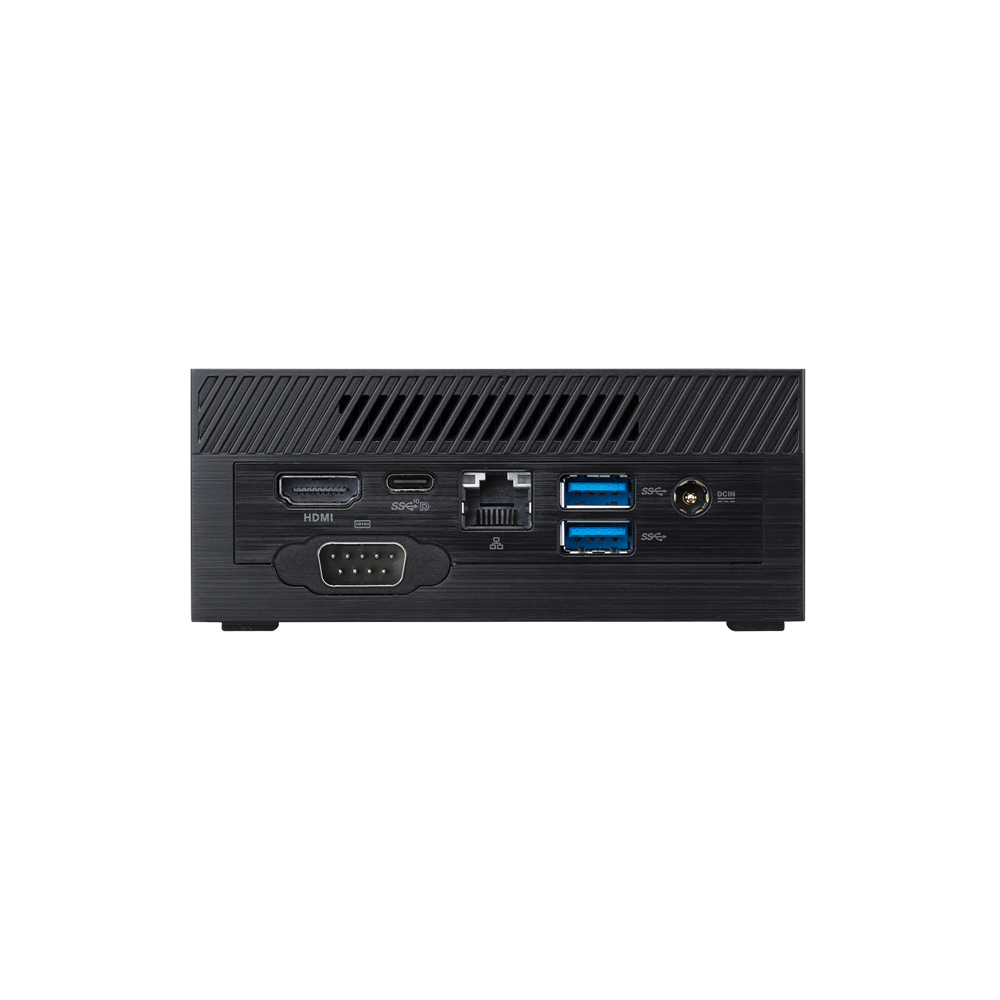

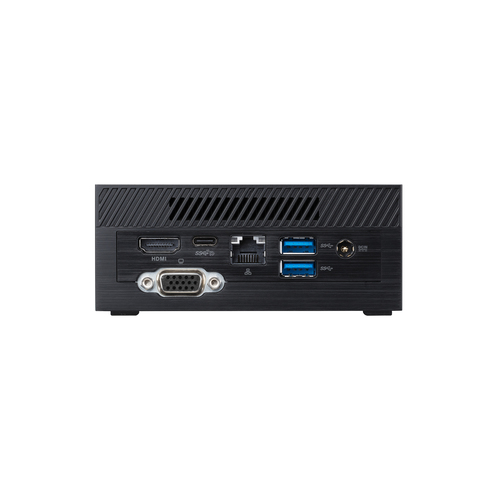

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 115 mm |
| Height | 49 mm |
| Weight | 700 g |
