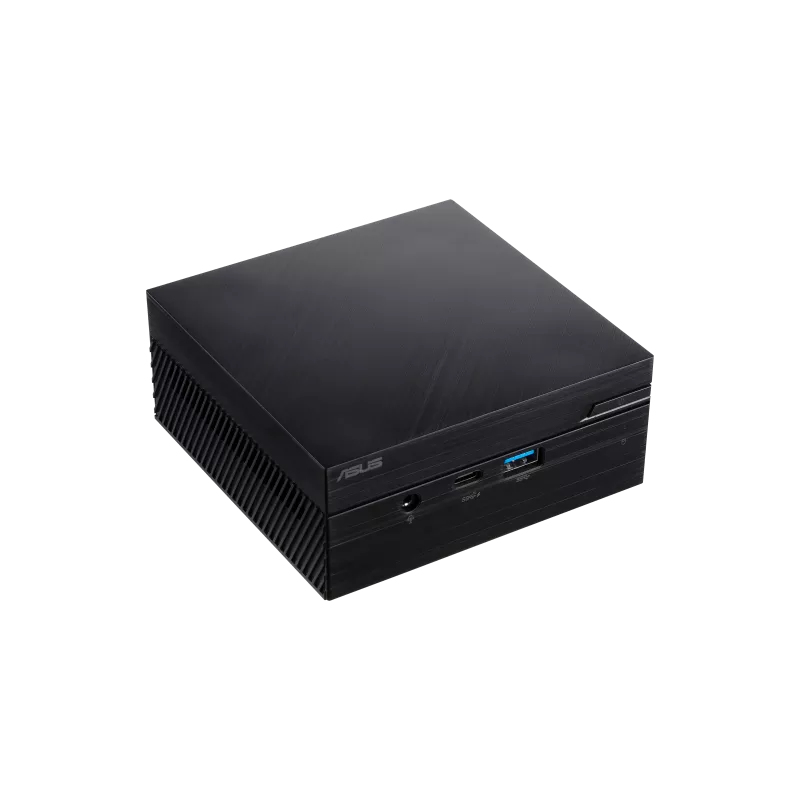

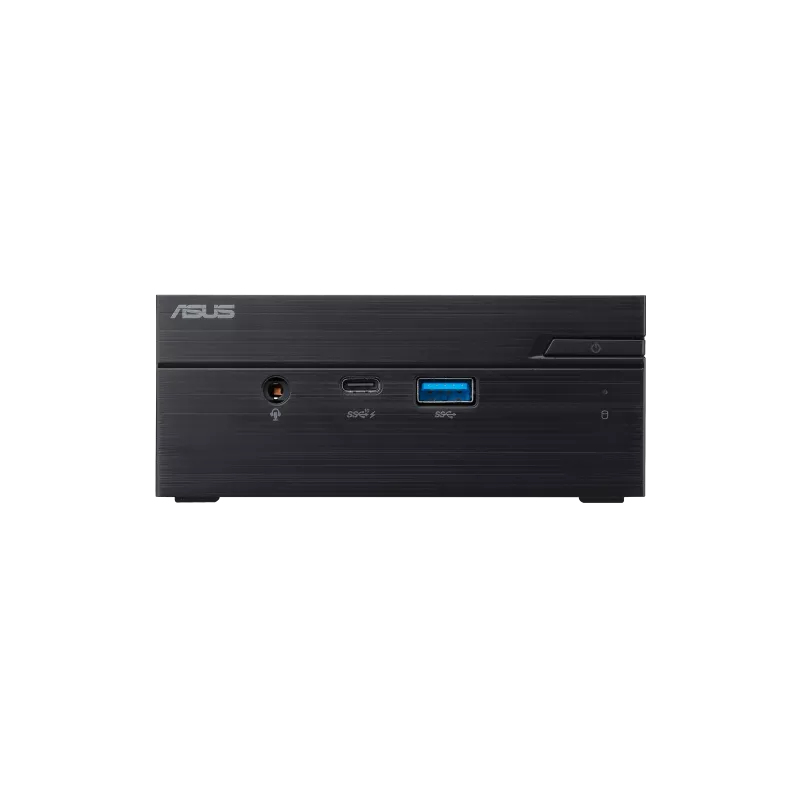

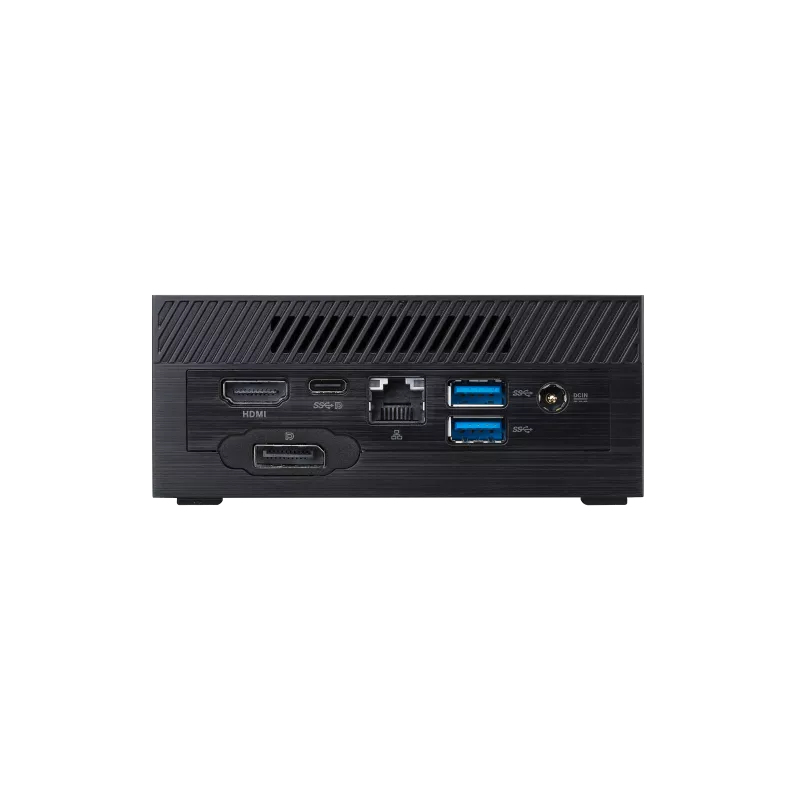

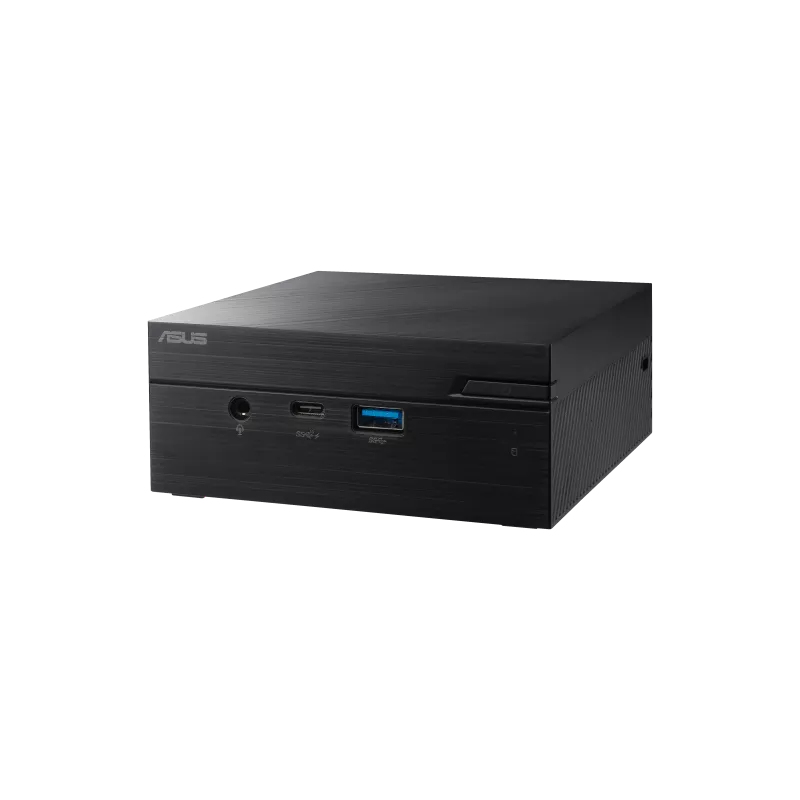

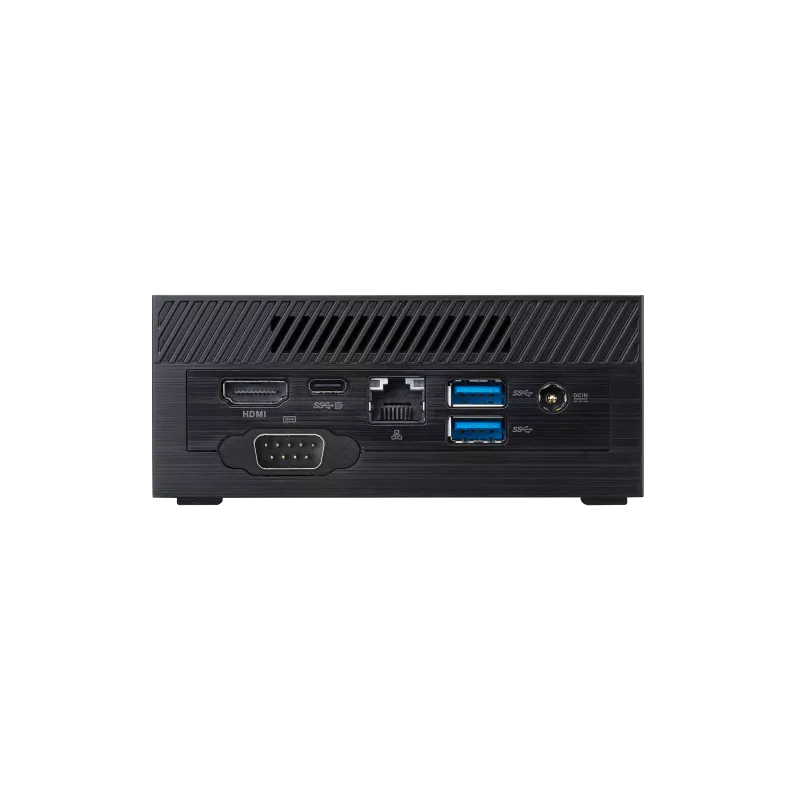

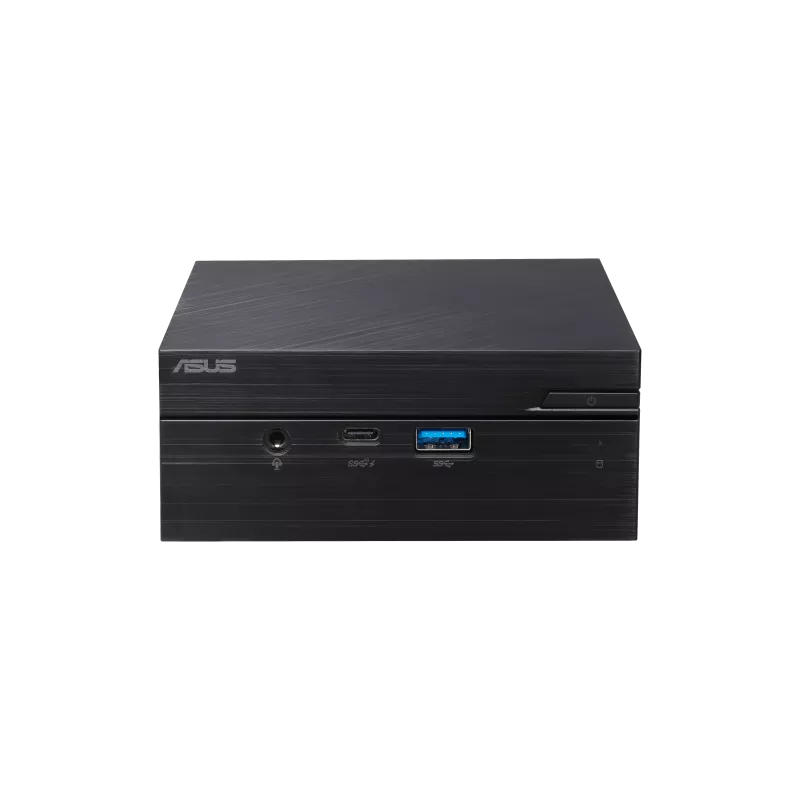

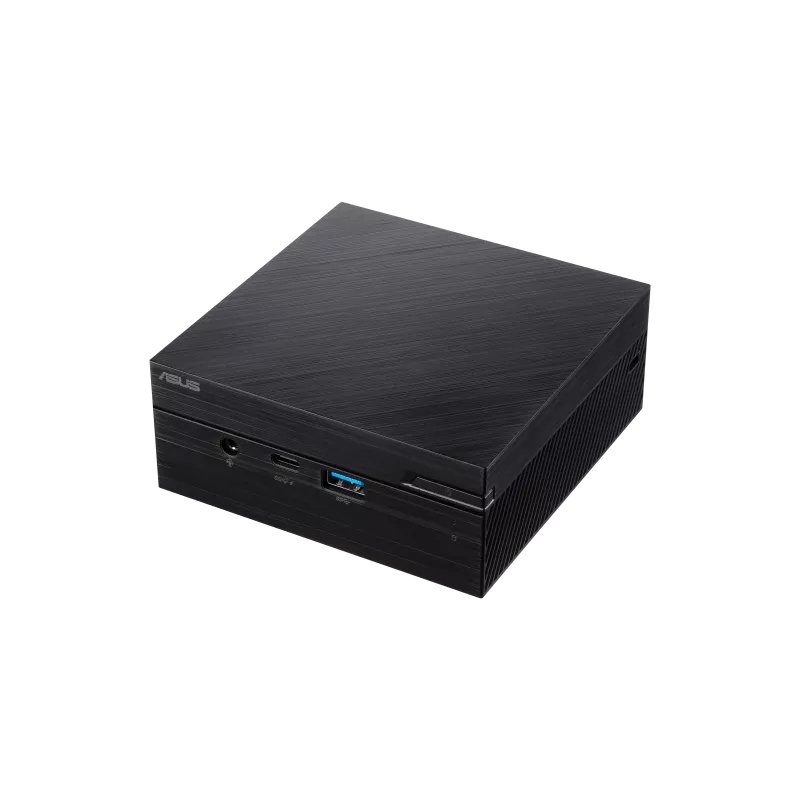

PN41-BBC129MV Black N4500
1.1 GHz
Model PN41-BBC129MVPart no. 90MR00I3-M001E0EAN 4711081478614
69 specifications
- ProcessorIntel® Celeron®
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC barebone
- Weight700 g
- ColourBlack
- Built-in processorYes
Overview
- Processor
- Intel® Celeron®
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC barebone
- Weight
- 700 g
- Colour
- Black
- Built-in processor
- Yes
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- PN41-BBC129MV
- Part number
- 90MR00I3-M001E0
- EAN / UPC
- 4711081478614
- Also known as
- ASUS PN41-BBC129MV Black N4500 1.1 GHz
Specifications
69 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N4500 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.8 GHz |
| Processor frequency | 1.1 GHz |
| Processor cache | 4 MB |
| L3 cache | 4 MB |
| Thermal Design Power (TDP) | 6 W |
| CPU configuration (max) | 1 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 2933 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2, PCI Express |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Audio chip | Realtek ALC3236-VB2 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| LAN controller | Realtek RTL8125B |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Pro |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Power
| Specification | Value |
|---|---|
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 115 mm |
| Height | 49 mm |
| Weight | 700 g |
