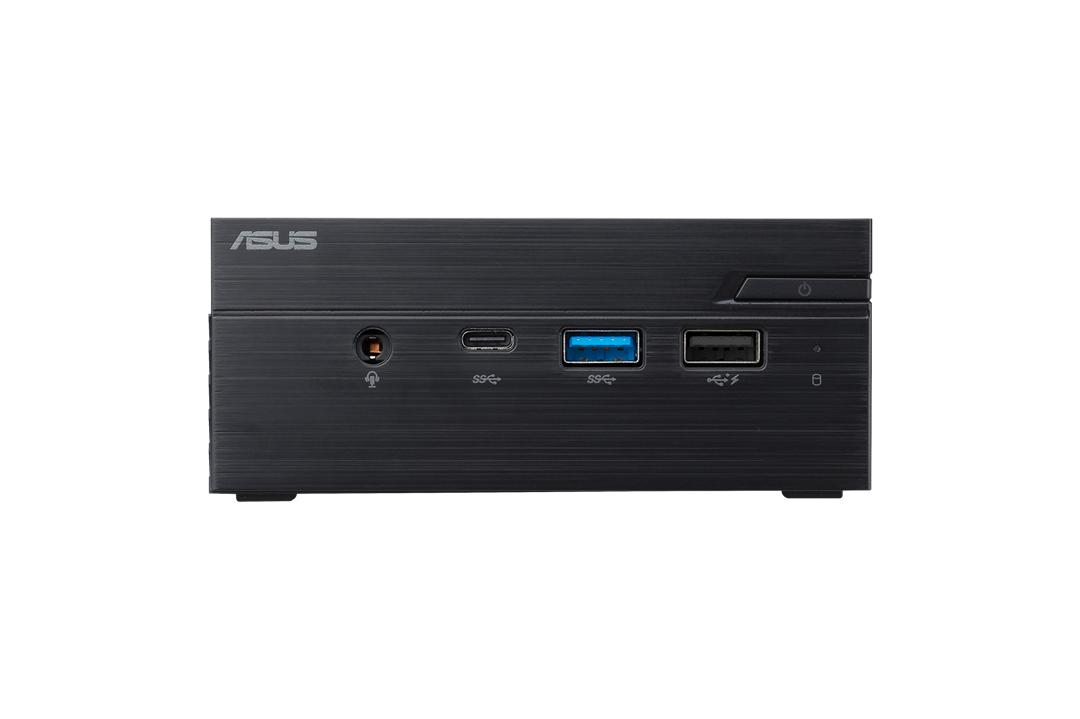

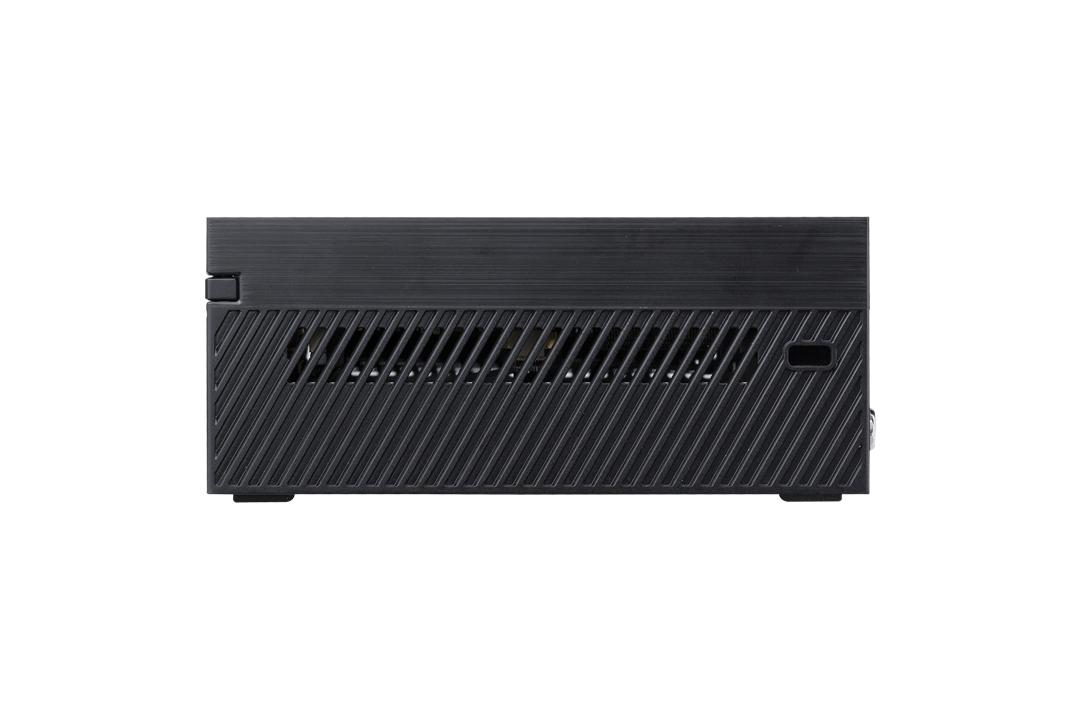

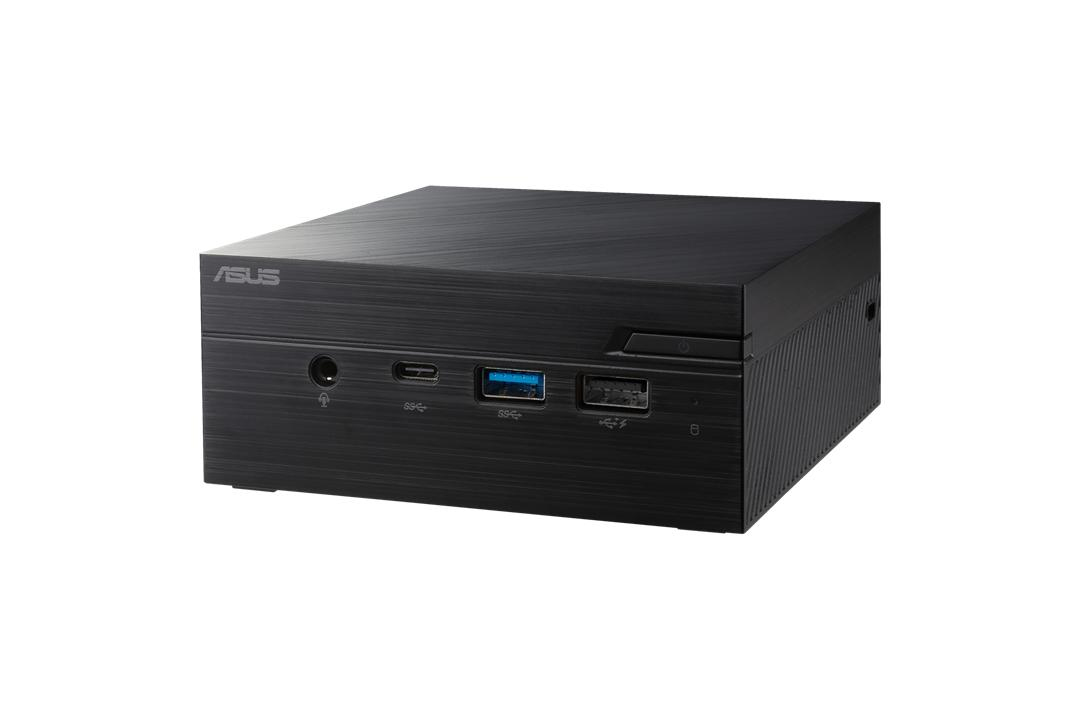

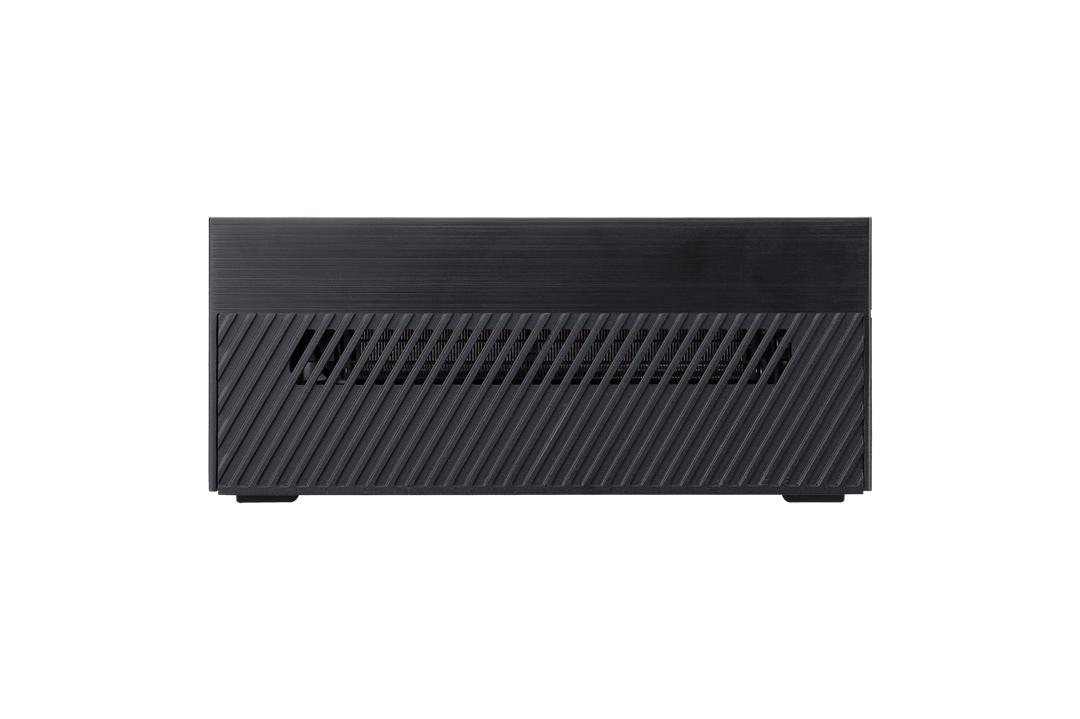

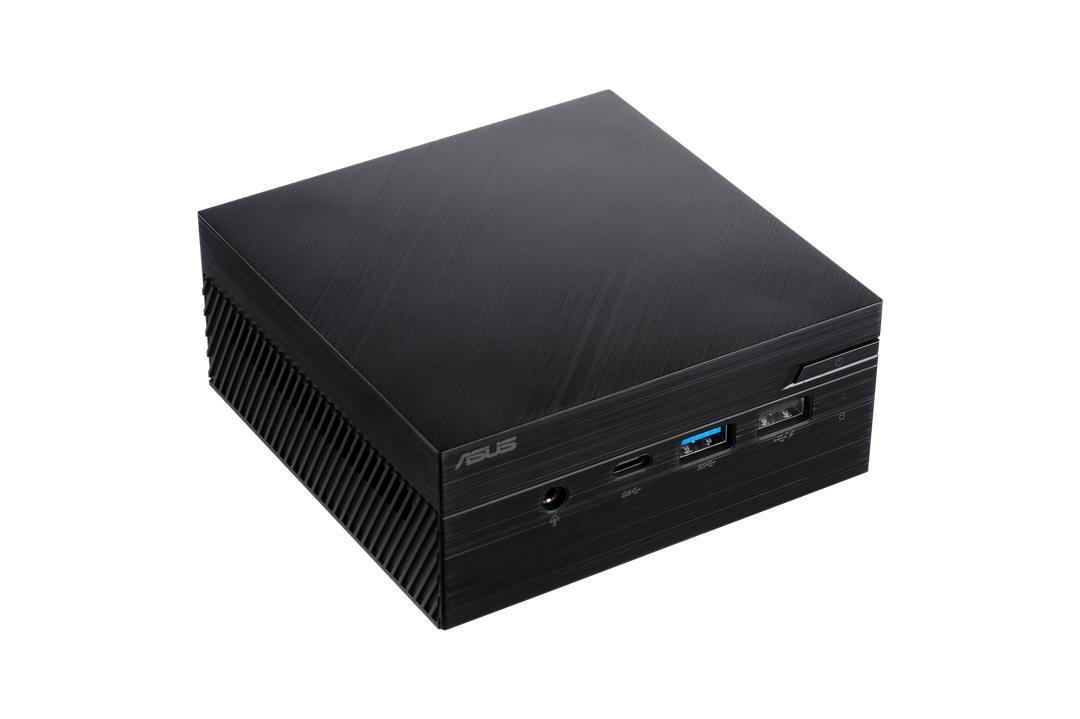

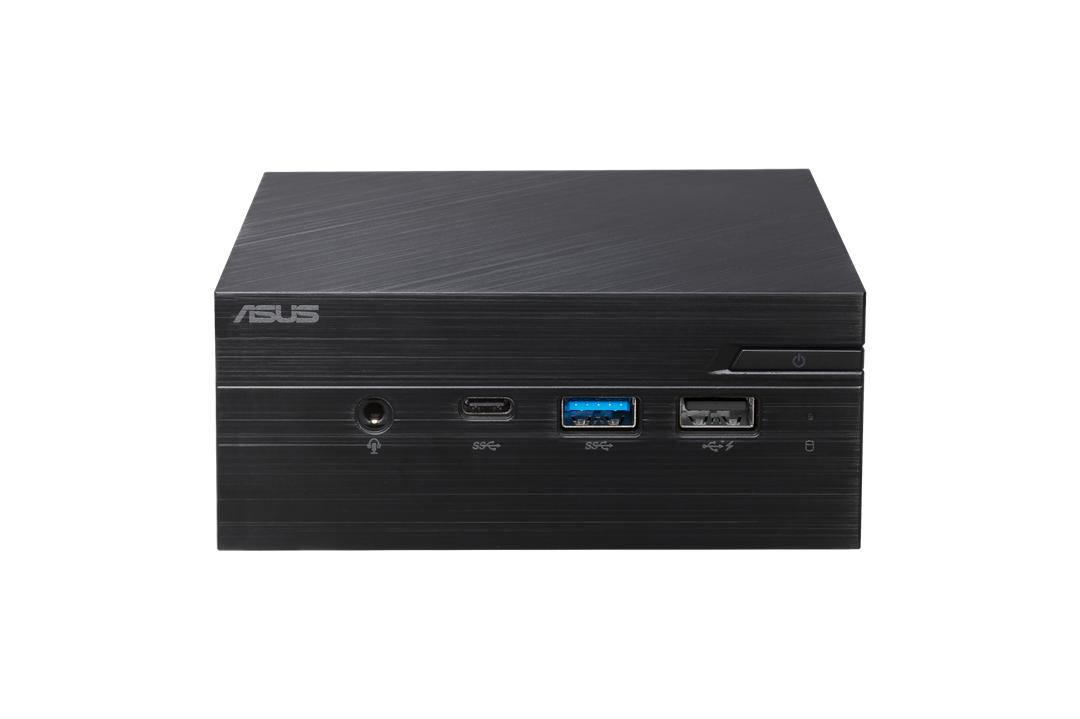

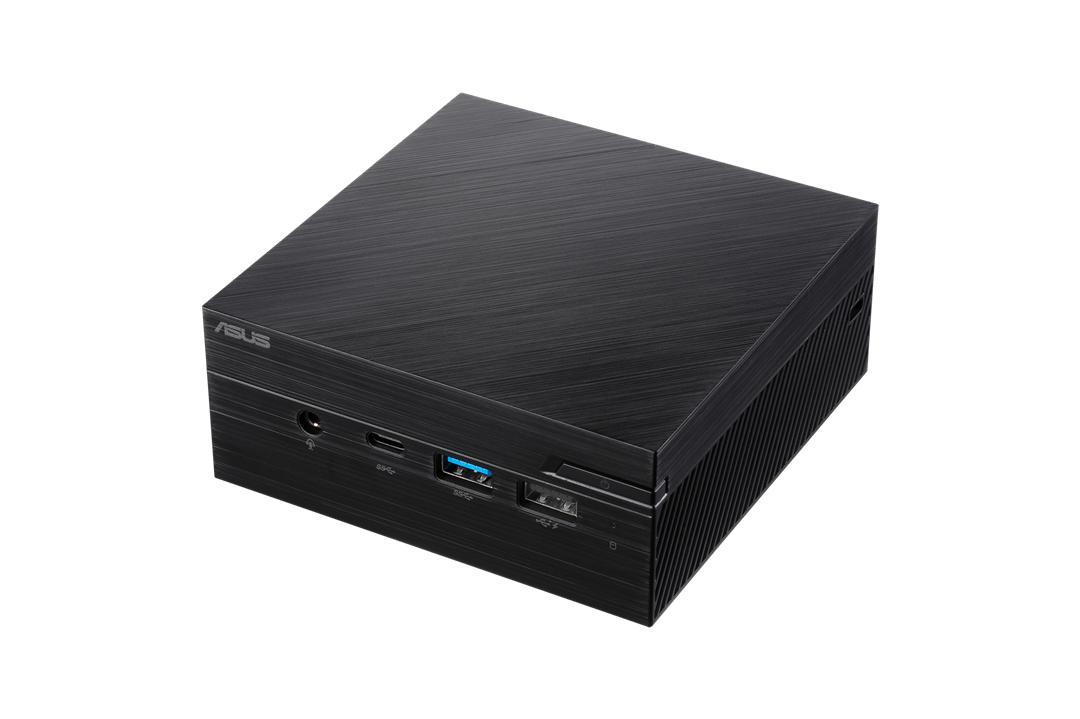

PN40-BBC185MV Mini PC Black N4100 BGA 1090
1.1 GHz
Model PN40-BBC185MVPart no. 90MS0181-M01850EAN 4718017183833
71 specifications
- ProcessorIntel® Celeron®
- TypeMini PC
- OSNo
- Weight700 g
- ColourBlack
- Built-in processorYes
Overview
- Processor
- Intel® Celeron®
- Type
- Mini PC
- OS
- No
- Weight
- 700 g
- Colour
- Black
- Built-in processor
- Yes
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- PN40-BBC185MV
- Part number
- 90MS0181-M01850
- EAN / UPC
- 4718017183833
- Also known as
- ASUS PN40-BBC185MV Mini PC Black N4100 BGA 1090 1.1 GHz
Specifications
71 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N4100 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.4 GHz |
| Processor frequency | 1.1 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 6 W |
| CPU configuration (max) | 1 |
| Processor codename | Gemini Lake |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
| Supported memory clock speeds | 2400 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| SSD form factor | M.2 |
| Storage drive interface | Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics 600 |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1090 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x2, 1x2+2x1, 1x4, 2x1, 4x1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Black |
| Cooling type | Passive |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Thermal Monitoring Technologies | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC/C-Tick/CCC/CE/UL/VCCI/BSMI/Energy Star/RF/WiFi/CB |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 115 mm |
| Height | 49 mm |
| Weight | 700 g |
