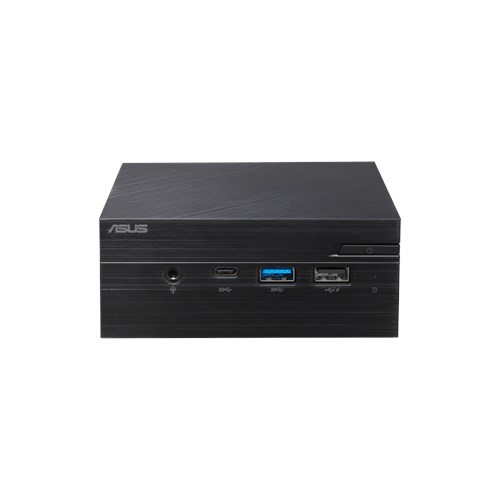

ASUS PN40-BB015MV

0.62L sized PC Black J4005 Intel SoC BGA 1090 2 GHz

Model PN40-BB015MVPart no. 90MS0181-M00150EAN 4718017003001

88 specifications

ProcessorIntel® Celeron®
Weight700 g
ColourBlack
Built-in processorYes
Memory slots typeSO-DIMM
Supported storage drive typesHDD & SSD

See all specifications

Overview

Processor: Intel® Celeron®
Weight: 700 g
Colour: Black
Built-in processor: Yes
Memory slots type: SO-DIMM
Supported storage drive types: HDD & SSD

Brand: ASUS
Category: PC/Workstation Barebones
Model: PN40-BB015MV
Part number: 90MS0181-M00150
EAN / UPC: 4718017003001
Also known as: ASUS PN40-BB015MV 0.62L sized PC Black J4005 Intel SoC BGA 1090 2 GHz

Specifications

88 specifications in 16 groups

Processor

Specification	Value
Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	J4005
Processor cores	2
Processor threads	2
Processor boost frequency	2.7 GHz
Processor frequency	2 GHz
Processor lithography	14 nm
L3 cache	4 MB
Thermal Design Power (TDP)	10 W
CPU configuration (max)	1
Processor codename	Gemini Lake

Memory

Specification	Value
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory clock speeds	2400 MHz
Supported memory types	DDR4-SDRAM

Storage

Specification	Value
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5"
SSD form factor	2.5"
Storage drive interface	M.2, Serial ATA III
Number of storage drives supported	1
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel® UHD Graphics 600

Performance

Specification	Value
Motherboard chipset	Intel SoC
Processor socket	BGA 1090
Number of processors supported	1

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DisplayPort version	1.2
Mini DisplayPorts quantity	1
Combo headphone/mic port	Yes
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Expansion slots

Specification	Value
PCI Express slots version	2.0
PCI Express x4 slots	1
Number of M.2 (M) slots	1
PCI Express configurations	1x2, 1x2+2x1, 1x4, 2x1, 4x1

Design

Specification	Value
Chassis type	0.62L sized PC
Product colour	Black
Cooling type	Passive
On/off switch	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Panel mounting interface	75 x 75,100 x 100 mm

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Thermal Monitoring Technologies	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Certificates

Specification	Value
Certification	BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI

Power

Specification	Value
Power supply type	External AC adapter
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power supply	65 W

Weight & dimensions

Specification	Value
Width	115 mm
Depth	115 mm
Height	49 mm
Weight	700 g

Packaging content

Specification	Value
Power cord included	Yes
AC adapter included	Yes
Quick start guide	Yes

Other features

Specification	Value
Processor ARK ID	128992
