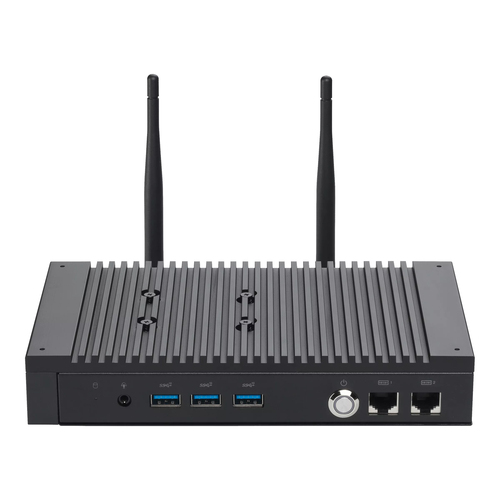

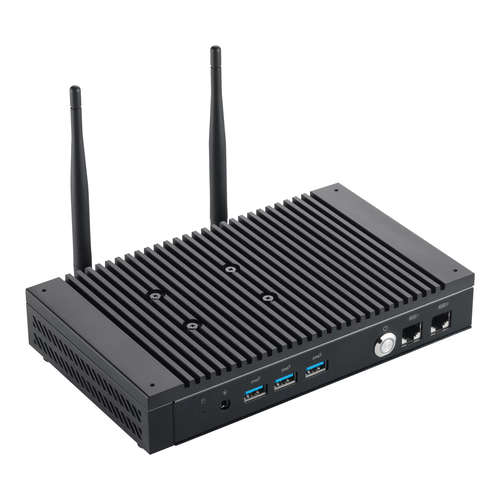

PL64-B-S30160MN PC/workstation barebone Black i3-1315U
Model PL64-B-S30160MN
55 specifications
- ProcessorIntel® Core™ i3
- TypeMini PC barebone
- Weight1 kg
- ColourBlack
- Built-in processorYes
- Internal memory installedNo
Overview
- Processor
- Intel® Core™ i3
- Type
- Mini PC barebone
- Weight
- 1 kg
- Colour
- Black
- Built-in processor
- Yes
- Internal memory installed
- No
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- PL64-B-S30160MN
- Part number
- PL64-B-S30160MN
- Also known as
- ASUS PL64-B-S30160MN PC/workstation barebone Black i3-1315U
Specifications
55 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | Intel Core i3-13xxx |
| Processor model | i3-1315U |
| Processor cores | 6 |
| Processor threads | 8 |
| Processor boost frequency | 4.5 GHz |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor cache | 10 MB |
| Processor cache type | Smart Cache |
Memory
| Specification | Value |
|---|---|
| Internal memory installed | No |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Number of storage drives supported | 1 |
| Maximum storage capacity | 2 TB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
Performance
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3251 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| HDMI ports quantity | 3 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 0 |
| Combo headphone/mic port | Yes |
| COM ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 199.7 mm |
| Depth | 119.7 mm |
| Height | 33.9 mm |
| Weight | 1 kg |
